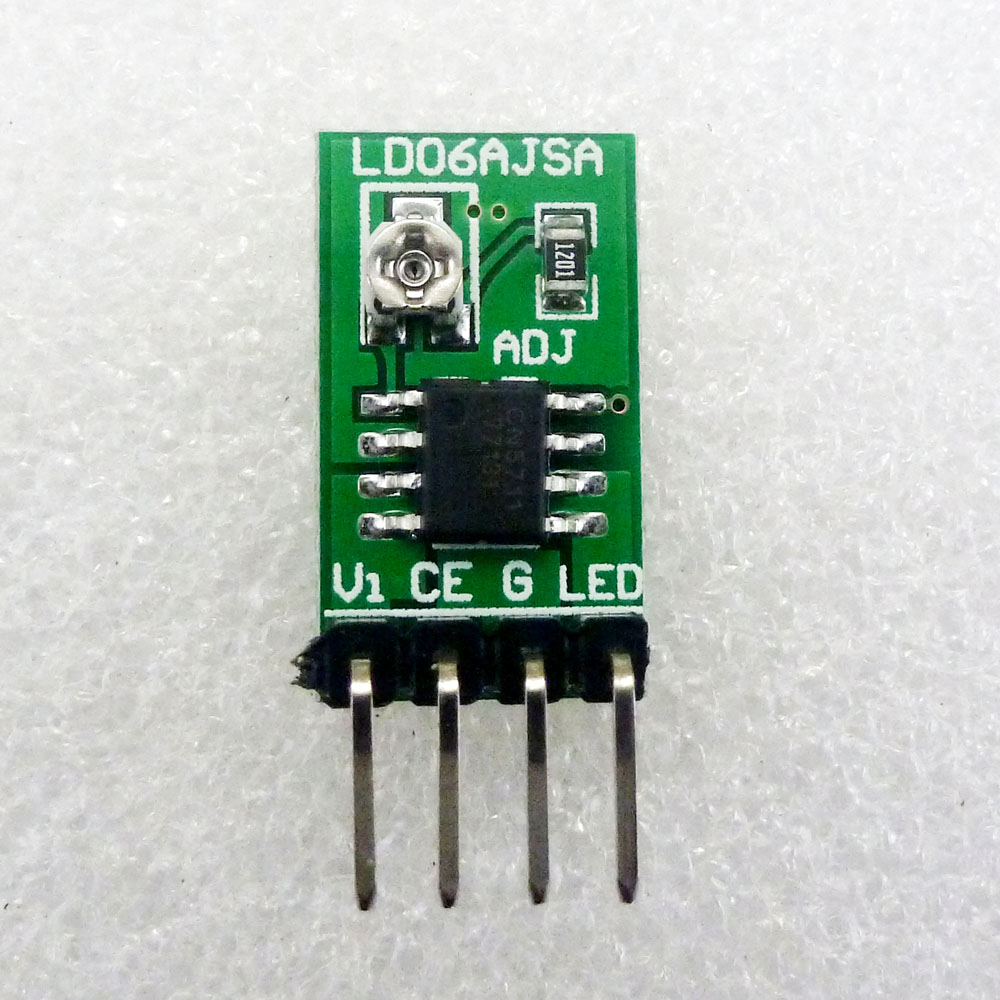

LD06AJSA DC 3-6V 0.03-1.5A Adjustable LED Driver PWM Controller DC-DC Constant Current Converter For Arduino MEGA2560 Breadboard

LD06AJSA DC 3-6V 0.03-1.5A Adjustable LED Driver PWM Controller DC-DC Constant Current Converter For Arduino MEGA2560 Breadboard

  • Model: LD06AJSA
  • Availability: In stock
  • Weight: 0.003Kg
US$1.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name : 1 Pcs DC 3-6V 0.03-1.5A Adjustable LED Driver PWM Controller DC-DC Constant Current Converter For Arduino MEGA2560 Breadboard









Packing list:


1 PCS 30-1500MA LED Driver Module(with Pin and no Pin optional)















Description:







Working voltage : DC 2.8-6V(Perfect for 3V 3.3V 3.7V 5V 6V LED Driver)






Output Current: 30-1500MA






Maximum output power: 9W







Can drive 1-16pcs 2.8-6V LEDs (maximum current does not exceed 1.5A)






Current regulation: 1 through adjustable resistance; 2 through PWM control







Chip Temperature Regulation



Over LED Current Protection



Operating Temperature Range







Size : 18mm x 10.3mm x 2.8mm



Weight : with Pin 0.86g,no Pin 0.56g





























Application 1: Wiring in accordance with the following figure, use a suitable screwdriver gently and slowly rotate the adjustable resistance.












Application 2: Adjust the adjustable resistance to 0 ohms (or maximize the current according to Application 1) and then use the MCU output PWM signal to control the LED output current



the frequency of the PWM signal should be less than 2KHz
































LD06AJSA/B is a current regulation integrated circuit operating from an input voltage of 2.8V to 6V, the constant



output current can be set up to 1.5A with an external resistor. The LD06AJSA/B consists of high precision reference



voltage, amplifier, current mirror, etc. The on-chip power transistor and current sense block greatly reduce the



external component count, which makes the LD06AJSA/B ideal for LED driver.



When the CE pin is high, the input voltage is greater than 2.8V, and is larger than the LED forward voltage plus



the required voltage drop, LD06AJSA/B functions normally to deliver constant current from the LED pin.



The LD06AJSA/B adopts the temperature regulation instead of temperature protection function, the temperature



regulation can make the LED being turned on continuously in case of high ambient temperature or high voltage



drop. When the LD06AJSA/B junction temperature reaches about 135 ° C, the internal temperature regulation block



reduces the LED current so that the junction temperature will not rise any more. This feature allows the users to



maximize the use of the power handling capability of the chip, do not worry about the chip overheating and



damage to the chip or external components.



The LD06AJSA/B also has the chip enable function, which can shutdown the whole chip to limit the current



consumption within 1uA.



The LD06AJSA/B also adopts the over current protection block. When LED current approaches 1.9A(Typical), the



over current protection block begins to function to prevent the LED current from increasing further.
