LD24AJTA DC 9V 12V 18V 24V 20W 30-900mA Adjustable LED Driver PWM Controller DC-DC Step-down Constant Current Converter

LD24AJTA DC 9V 12V 18V 24V 20W 30-900mA Adjustable LED Driver PWM Controller DC-DC Step-down Constant Current Converter

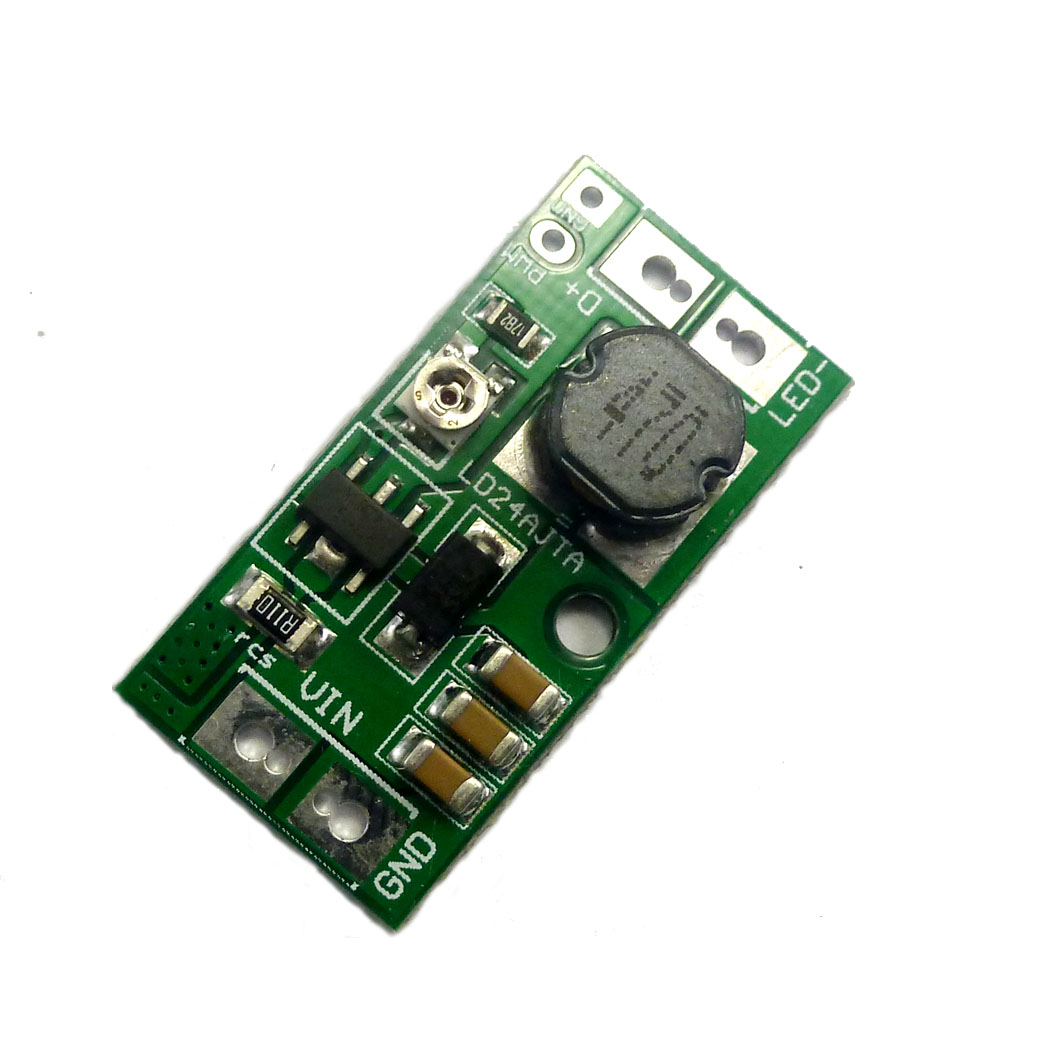

  • Model: LD24AJTA
  • Availability: In stock
  • Weight: 0.003Kg
US$1.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns

Product Name:  DC 9V 12V 18V 24V 20W 30-900mA Adjustable LED Driver PWM Controller DC-DC Step-down Constant Current Converter


Packing list:

1PCS 30-900MA 6-25VMultifunction LED driverModule

Description:

6-25V 900mA Step-down High Brightness LED Driver with 5000:1 Dimming

Working voltage : DC 6-25V(Perfect for 6V 9V 12V 18V 24V LED Driver)

Output Current: 30-900MA;By changing the RCS resistance, the maximum current can reach 1200MA

Maximum output power: 20W

Current regulation: 1 through adjustable resistance; 2 through PWM control

Single pin on/off and brightness control using DC voltage or PWM
Up to 1MHz switching frequency
Typical 5% output current accuracy
Inherent open-circuit LED protection
High efficiency (up to 97%)
High-Side Current Sense
Hysteretic Control: No Compensation
Adjustable Constant LED Current

Size : 30mm x 15mm x 6.3mm
Weight : 2.5g





Application 1: Wiring in accordance with the following figure, use a suitable screwdriver gently and slowly rotate the adjustable resistance.

Application 2: Ignore the adjustable resistance, control the output current through the PWM port, the current is 0-900MA adjustable
Application 3 : Add an enable control switch based on application 1.
