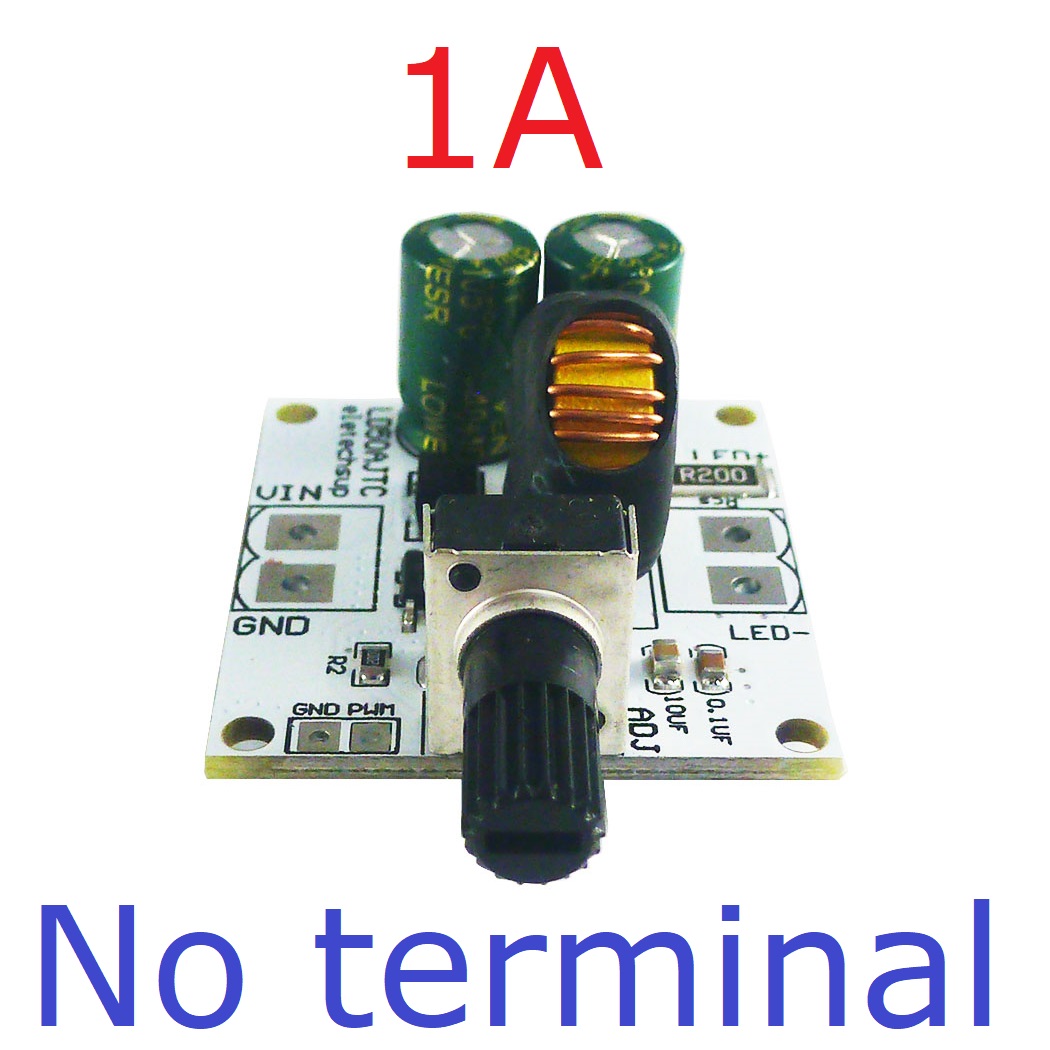

LD50AJTC DC 6-50V High-Power Handle Dimming LED Driver Module 0-3A Adjustable Constant Current DC-DC Converter LED Flashlight Controller

LD50AJTC DC 6-50V High-Power Handle Dimming LED Driver Module 0-3A Adjustable Constant Current DC-DC Converter LED Flashlight Controller

  • Model: LD50AJTC_1A
  • Availability: In stock
  • Weight: 0.013Kg
US$3.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name : DC 6-50V High-Power Handle Dimming LED Driver Module 0-3A Adjustable Constant Current DC-DC Converter LED Flashlight Controller

Packing list:
1 Pcs 72W DC 6-50V eletechsup LD50AJTC 1-3A Multifunction LED Constant Current Module

Description:

DC 6-50V 1/2/3A Step-down High Brightness LED Driver with 5000:1 Dimming

Working voltage : DC 6-50V(Perfect for 6V 9V 12V 18V 24V 36V 48V LED Driver)

Output Current: 1A/2A/3A;By changing the RCS resistance, the maximum current can reach 4A

Maximum output power: 72W(36V/2A,24V/3A)

Current regulation: 1 through adjustable resistance; 2 through PWM control

Single pin on/off and brightness control using DC voltage or PWM
Up to 1MHz switching frequency
Typical 5% output current accuracy
Inherent open-circuit LED protection
High efficiency (up to 96%)
High-Side Current Sense
Over temperature drop current function
Adjustable Constant LED Current

Size : 35mm x 31mm x 16mm
Weight : 13g(No terminal),16g(with terminal)

Notice:
1 The input terminal does not have reverse polarity protection, please do not reverse the power supply
2 This is an LED dimming module, which can only be used for LED dimming, and cannot be used as a constant current source.

Application 1: Wiring in accordance with the following figure, use a suitable screwdriver gently and slowly rotate the adjustable resistance.

Application 2: Ignore the adjustable resistance, control the output current through the PWM port, the current is 0-3000MA adjustable

Application 3 : Add an enable control switch based on application 1.
