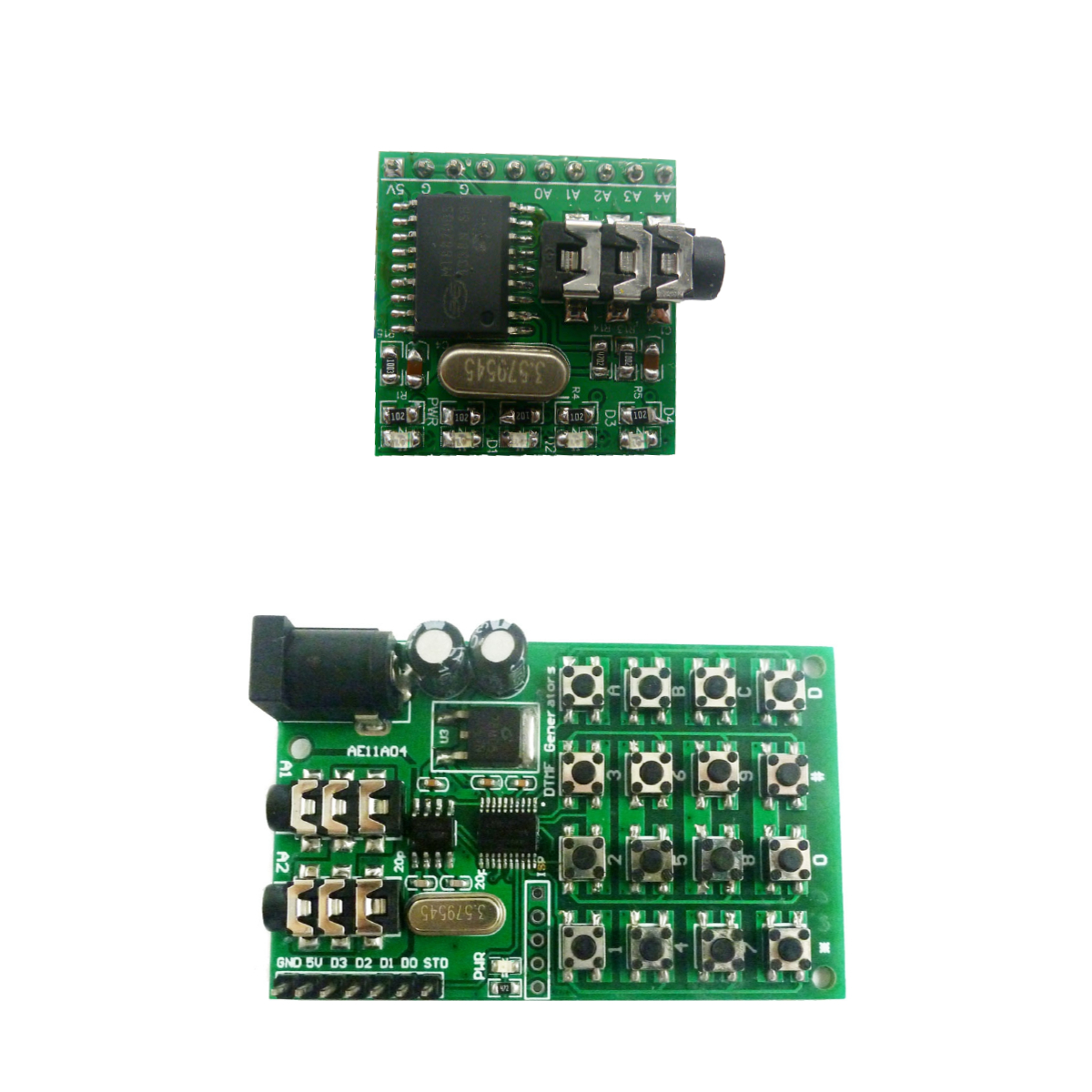

CE005 AE11A04 MT8870 DTMF Voice Decoder Encoder Telephone Module for Arduin MEGA2560 NANO

CE005 AE11A04 MT8870 DTMF Voice Decoder Encoder Telephone Module for Arduin MEGA2560 NANO

  • Model: CE005+AE11A04
  • Availability: In stock
  • Weight: 0.12Kg
US$13.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
MT8870 DTMF Voice Encoder Decoder Module Telephone Module for Arduino  MEGA2560 NANO




Module No.:  CE005



Package ：(Does not include Arduino UNO/MEGA2560):
1 PCS MT8870 DTMF decoder module;
1 PCS Male to Male audio wire (3.5mm jack ) ;







Description:

Onboard Complex Frequency Decoder IC MT8870DS

Onboard 5 LED indicators for easy viewing output state



DC Power Supply Voltage：5V(4.5V-5.5V)

Operating Temperature : -40-+85 °C

IO Drive : Current Maximum 10mA.

PCB Size : 25.4x25.4MM

This decoding module is for mobile and fixed telephone voice dialing decoding function
Designed specifically for ARDUINO Board.also use for other MCU(AVR PIC MSP430 STM32 ARM7/9/10/11 FPGA/CPLD)

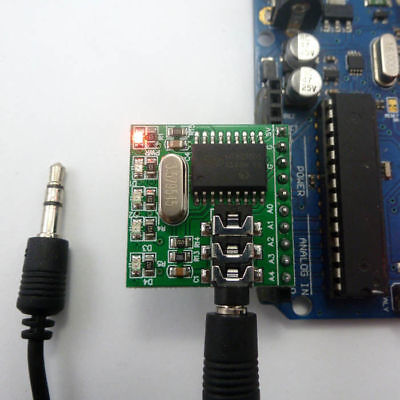

Does not require any wiring, can be inserted directly into the UNO/MEGA2560/DUE board to use.
12 Digital outputs decode mobile and fixed telephone keys (0-9, * #).Another 4 Digital output(ABCD) can use "DTMF Dial" Software control.

Arduino uno/mega2560 Code fragment:
After purchase, please contact me for complete code!

//*******************************************//

#include

int STD = A0;
int Q1 = A1;
int Q2 = A2;
int Q3 = A3;
int Q4 = A4;

....

//Check once every 5 ms
void dtmf_decode(void)
{

....

}

void setup()
{
.....
}

void loop()
{

//Complete the decoding
if(Decod_finished)
{
Decod_finished = 0;

Serial.print(" Activate : " );

switch(Q_dat){
case 1 : Serial.print("1 n" ); break;
case 2 : Serial.print("2 n" ); break;
case 3 : Serial.print("3 n" ); break;
case 4 : Serial.print("4 n" ); break;
case 5 : Serial.print("5 n" ); break;
case 6 : Serial.print("6 n" ); break;
case 7 : Serial.print("7 n" ); break;
case 8 : Serial.print("8 n" ); break;
case 9 : Serial.print("9 n" ); break;
case 10 : Serial.print("0 n" ); break;
case 11 : Serial.print("* n" ); break;
case 12 : Serial.print("# n" ); break;
case 13 : Serial.print("A n" ); break;
case 14 : Serial.print("B n" ); break;
case 15 : Serial.print("C n" ); break;
default : Serial.print("D n" ); break;
}
.....

//****************************************************************************//







Typical application for Mobile phones((Does not include Arduino UNO/MEGA2560):






Typical application for DTMF Dial Software:

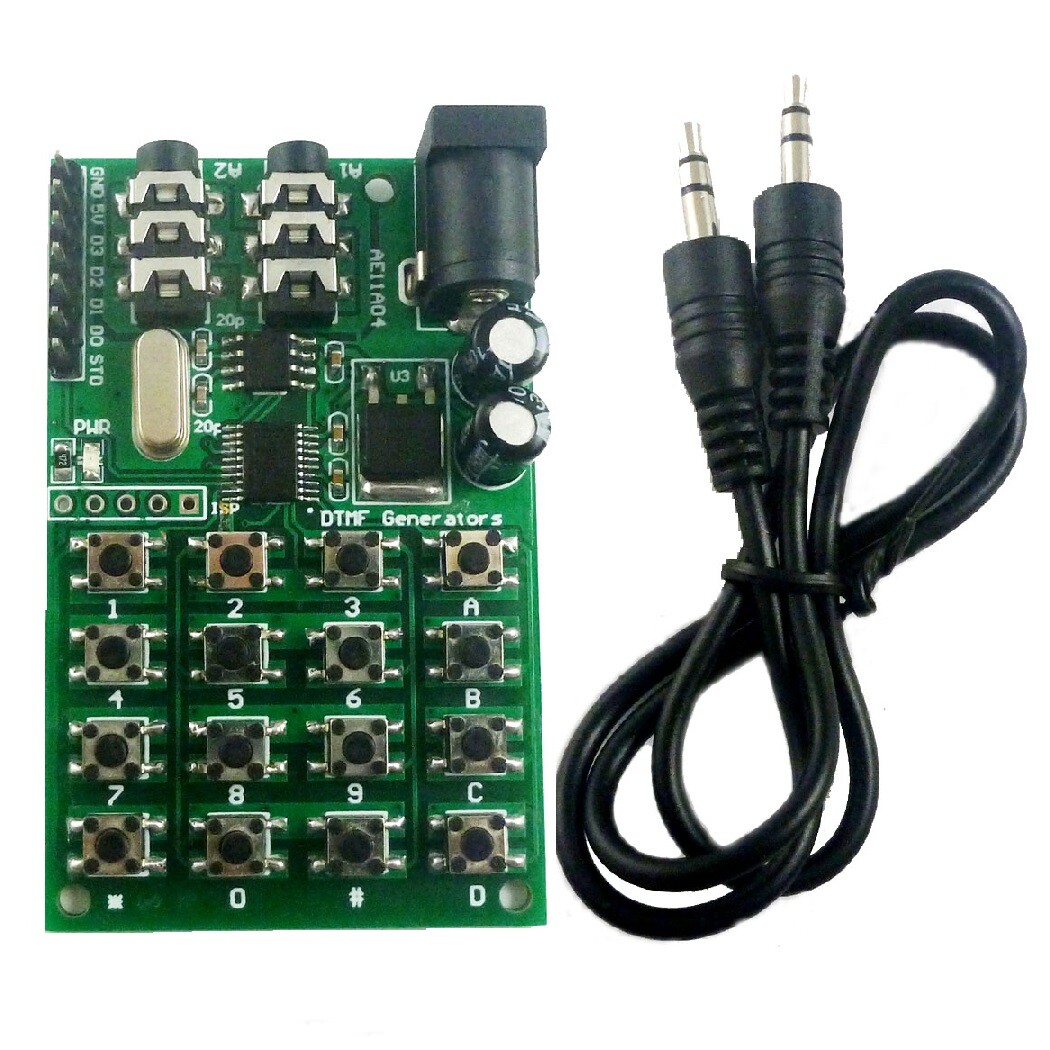

Packing list:
1 PCS AE11A04 DTMF Generators Module;
1 PCS 50cm Male to Male audio cable (  3.5mm  Cable);
Description:

Operating Voltage : 5-24VDC
Working current : 6-8MA
Power interface : 2.1mm x 5.5mm Female Male DC Power Plug
Audio interface :  2x 3.5mm audio jack socket
MCU input interface : 7x 2.54MM pin header,GND 5V D3 D2 D1 D0 STD

Size : 63*40*13mm
Weight : 16g

The AE11A04 DTMF tone generators are designed
for Dialing keyboard AND MCU interfaces. They can be instructed by a
MCU(OR Dialing keyboard ) to generate 16 dual tones from the Audio 1/2 .  16 dual tones is  ''1234567890#*ABCD''

For more information, please contact us



Audio 1: This is a universal interface that connects most audio devices. For example: mobile audio interface, PC audio interface, DTMF decoder

Audio 2: This is a specific audio interface. Support the following products of our company: CE004 CE005 CE023 AD22B04 AD22A08











How to use:

1 Output DTMF tone through Dialing keyboard

2 Output DTMF tone through MCU control
