Product Features:
1 Working voltage: DC 12V-24V
2 Working Current : Standby current (Digital tube OFF) 15MA, Standby current 50MA (Digital tube ON), 1 relay open 76MA, 2 relays open 107MA, ... 8 relays open 292MA
3 On-board resources: 1x RS485 Interface 8x opto-isolated inputs (low level trigger, NPN type), 4x 0/4-20MA Current Input,4x 0-5V/10V Voltage Input,4x buttons, 1x 4 bit digital tube display, 1x ESP32 slots, 8x relay outputs
ES32A08(Relay Module):
Size 180*72*20mm(Only Board)
Weight : 189g(Only Board), 317g(with shell)

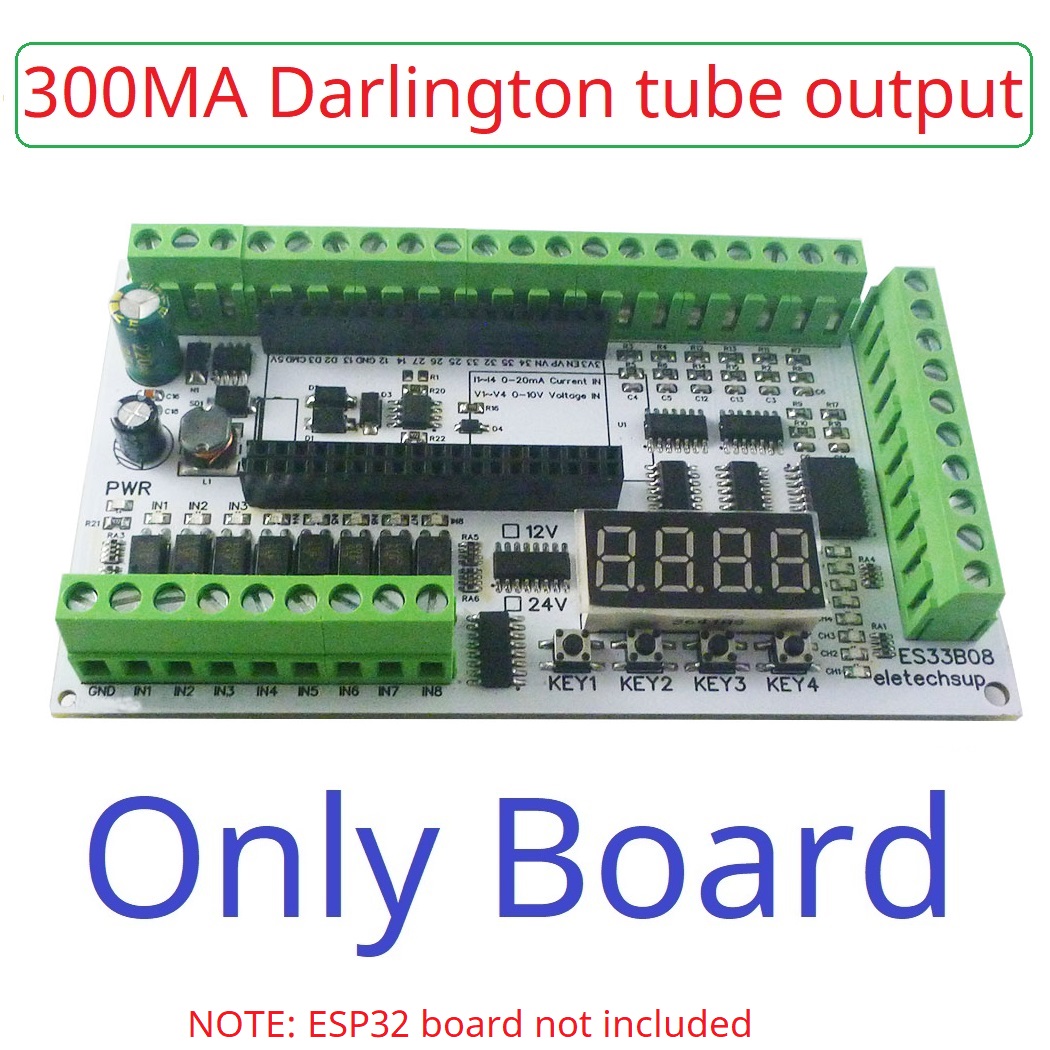

ES33B08(Darlington tube Module):
Size 123*72*20mm(Only Board)
Weight : 93g(Only Board), 184g(with shell)
Please contact me for more information!
Purchase Notes:
1 ES32A08/ES33B08 can not work independently, must be under the control of the 38PIN ESP32 board to work,If you do not have a 38PIN ESP32 board, purchase it separately or purchase a kit with 38PIN ESP32
2 This is an expansion board based on 38PIN ESP32. We only provide three vscode codes for testing the hardware. More codes and functions need to be developed by yourself.
3 If you need more functionality, write your own code. We do not provide additional code and technical support
4 The acquisition accuracy of analog quantities is determined by the ESP32 board. It is recommended to collect multiple times to obtain the average value.
Application examples:
As long as you write ESP32 code,You can use it to achieve a variety of delay timer function,such as:
WIFI remote control switch
WIFI Current and voltage collection
home automation/Smart home DIY
RS485 Master-Slave Device(PLC MCU),
4x 0/4-20MA Current Collection,
4x 0-5V/10V Voltage Collection,
Motor forward and reverse,
Timing ON/OFF
Power-up Delay,
Trigger delay,
Infinite loop delay,
A finite number of cyclic delays,
Power sequencer,
And so on.
Application 1: Through the programming of 38Pin ESP32, various delay customization functions can be realized instead of PLC.
Application 2: It can be used as an RS485 master device instead of PLC/PC/touch screen to control various RS485 slave devices.
