Package inlcuded:

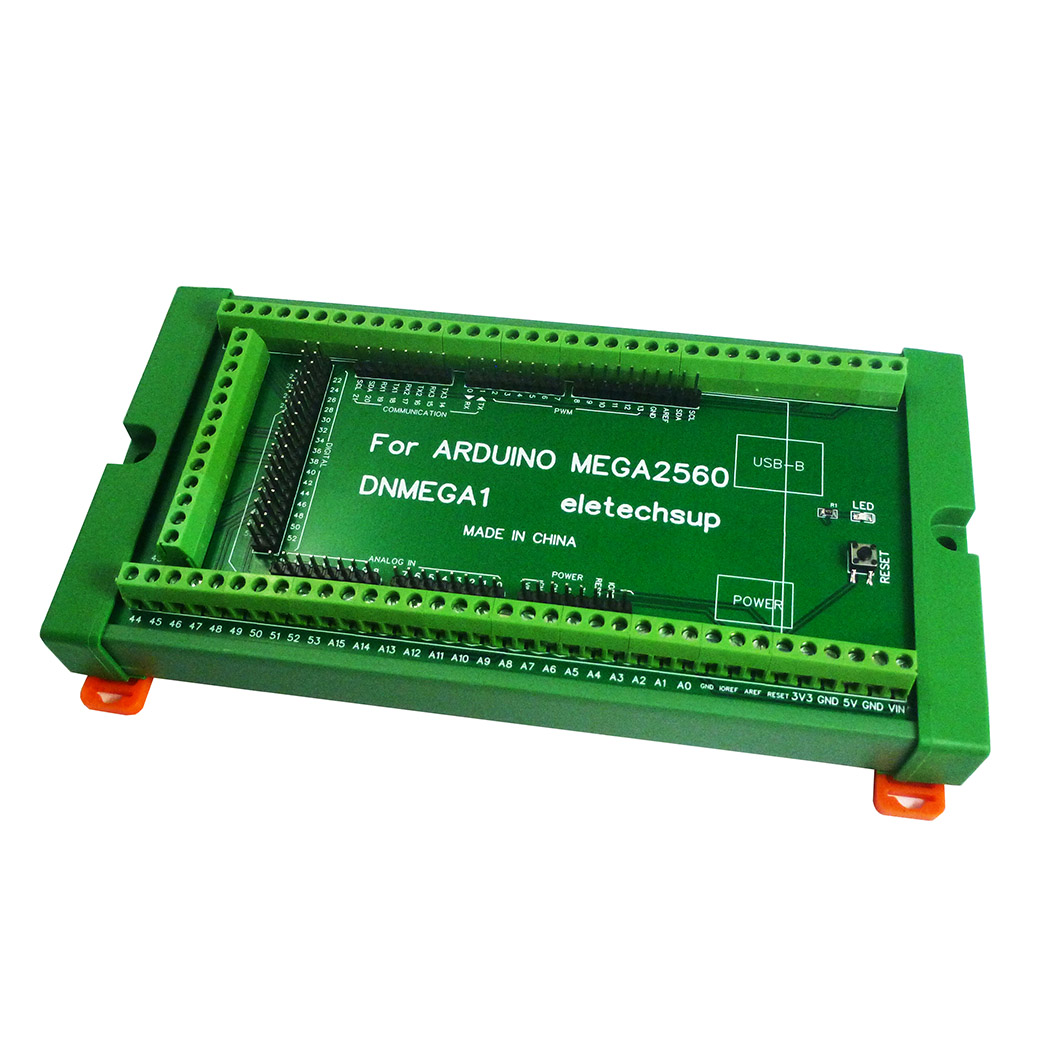

1 Pcs DNMEGA1 DIN PinBoard for MEGA2560 R3(only board or with shell)
(does not include the MEGA2560 module)
Illustrate:
Terminal spacing: 3.96mm.
Terminal Blocks: Wire Range 26-16AWG, Strip Length 3.96mm, Metric M2/M2.5 Slotted Screws.
Size: 147*80 *12mm(only Board);165*85 *25mm(with Rail Box)
Weight: 86g(only Board),192g(with Rail Box)
Use:
DIN Rail Mount Screw Terminal Adapter Module for Arduino MEGA2560 Board.
With this adapter modules, you can easily extend your Arduiuo projects to industrial control applications.
Notice:
This product does not include the MEGA2560 Board
DIN rail Box parameters:
Product model: PDM80
Color:
Green
Width: suitable for PCB board width PDM80(80mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 147 mm PCB boards
Net weight: 106g
Installation: DIN35 and C45 rail
