Model airplane;
Car Security System;
Garage Door Controller;
Remote Control Fan;
Home Security/Automation System;
Remote Control Toys;
Size (LxWxT): 17 * 12 * 9mm;
Weight: 2g (not including antenna) , 3g (including the antenna);
|
Operating voltage |
5.0VDC ±0.5V
|
|
Working priceple |
can work with transmitter signal from PT2262 SC2262 EV1527 PT2264 PT2260 |
|
Operating frequency |
433MHz
|
| Receiver Sensivity | -107dBm |
|
modulation Mode |
ASK/OOK
|
|
Operating temp. |
-10 °C ~ +60 °C
|
|
Antenns length
|
20 cm (315 MHz), 18 cm (433.92 MHz)
|
|
Output signal |
2 Channels output , TTL level , |

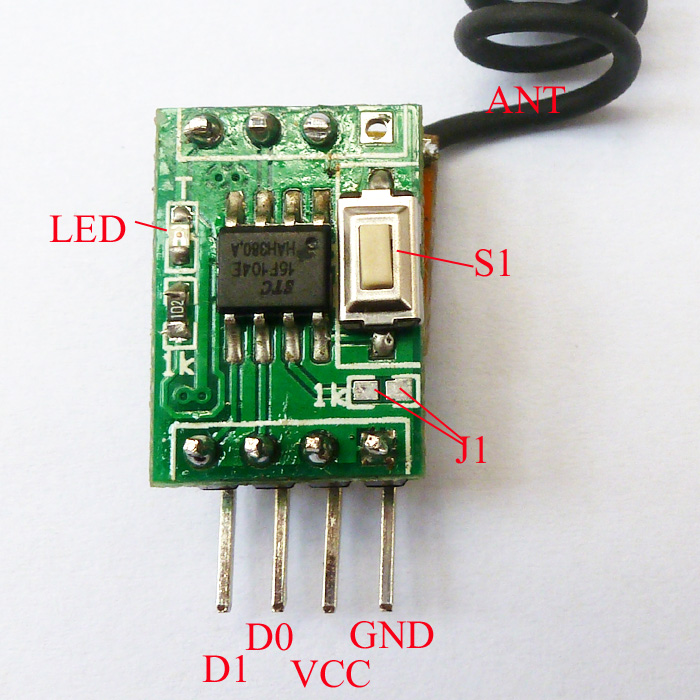

VCC: Positive Power Supply DC 5V (range 4.5 ~ 5.5V);
D0 channel : 0 output. Sink current up to 20MA, pull current 270UA ;
D1 channel : 1 output. Sink current up to 20MA, pull current 270UA ;
Note :
A.singnal Non-locking (Momentary)----Disconnect J1 (defult is Momentary) ;
B.singnal Self-locking (Toggle) ---- connect J1；
Momentary------------Press the Transmitter button A, the receiver relay A is ON, release button A; the receiver relay A is OFF, the same as B/C/D ,Every channel is Independent ;
Toggle-------------------Press transmitter button A for 1 time , the receiver relay A is ON, press button A again, the receiver relay A is OFF, the same as B/C/D. Every channel is Independent ;
Technical Data :
