CJ018 TB195 433MHz for Arduino Encode Decode RF Wireless Remote Adjustable Delay Time Link

CJ018 TB195 433MHz for Arduino Encode Decode RF Wireless Remote Adjustable Delay Time Link

  • Model: CJ018+TB195
  • Availability: In stock
  • Weight: 0.01Kg
US$9.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns

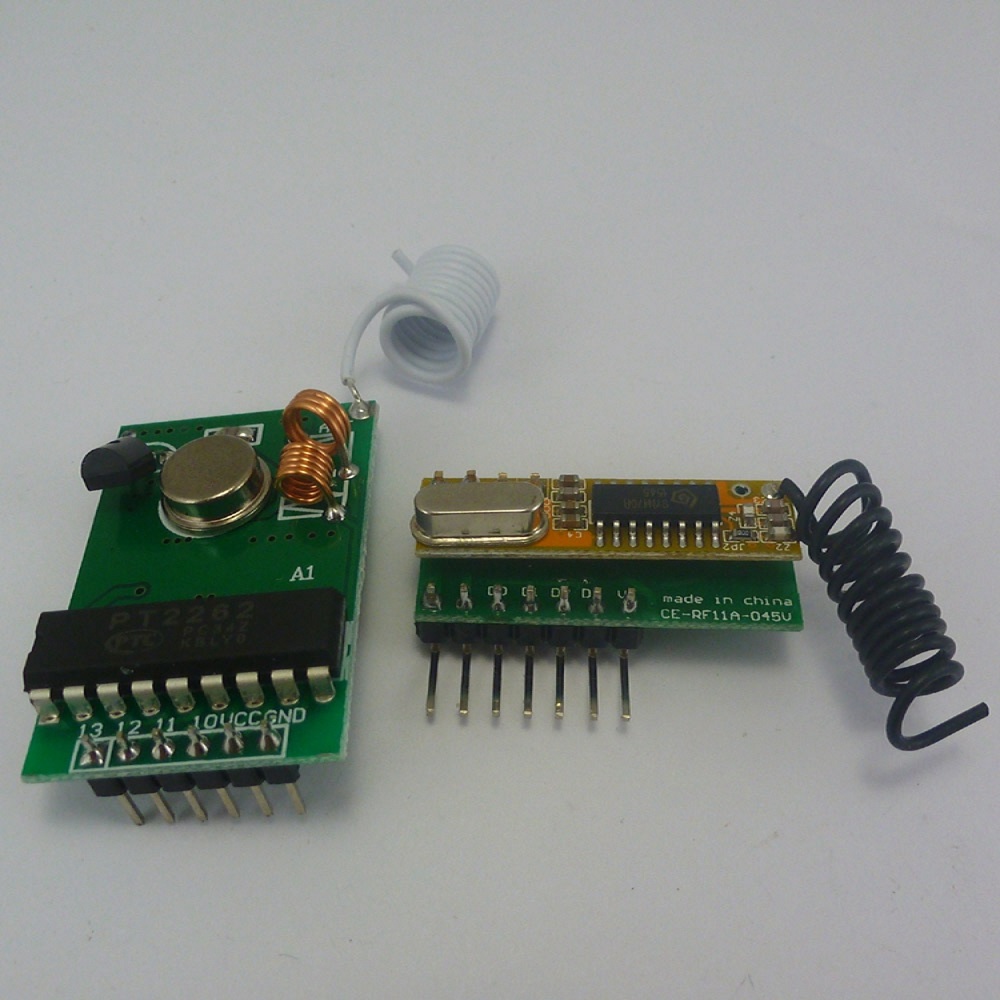

1PCS Super Heterodyne decoder receiver and 1 pcs PT-2262 encoder transmitter ;






Model No.

CJ005

Operating voltage

5.0VDC ±0.5V

Working priceple

Super Heterodyne receiver with decoder , learning type . decoding PT2262, PT2260, PT2240, EV1527 and other learning codeto chip or compatible chips, can learn and store 20 pcs different coded remote control. Intelligently distinguish shock resistance between fixed code and learning code , such as PT2262 and EV1527.

Static current

≤7 mA (DC 5V)

Operating frequency

433.92 MHz

modulation Mode

ASK/OOK

Receiving sensitivity

over -107 dBm (50 Ω)

Speed

< 5 K bps (at 315 MHz, -95 dBm)

Operating temp.

-10 °C ~ +60 °C
Max rate 1 KHZ
Antenns length
20 cm (315 MHz), 18 cm (433.92 MHz)

Dimension

30*13mm

Output signal

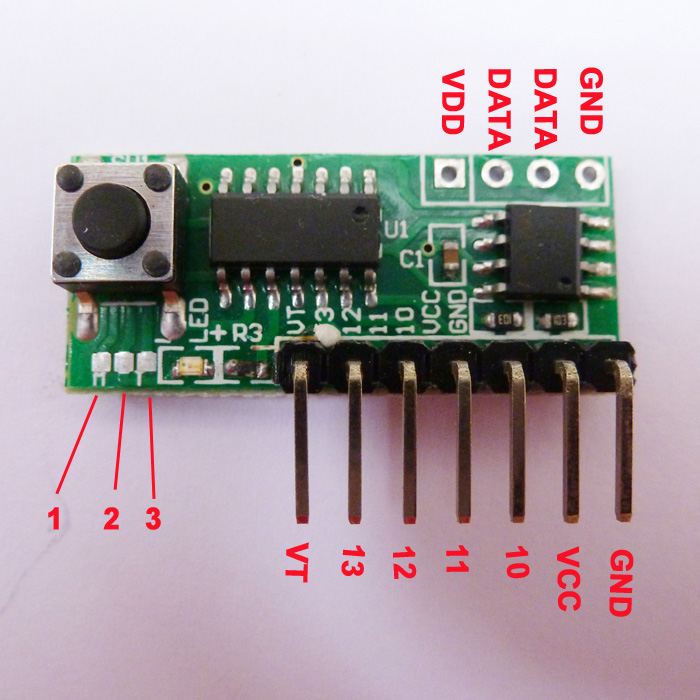

TTL level , Momentary, Latch, Toggle ,user can set it by welding, Latch is defult.

Band width

2MHz(315MHz, Sensitivity go down 3dBm test )









A.singnal Non-locking (Momentary)----connect 1  and 2 ;

B.singnal Self-locking (Toggle) ---- connect 2 and 3 ;

C.singnal Inter-locking (Latch) ---- disconnect all  ;

·         Toggle : Press->On; Press again->Off ;

·         Latched : Press->On; Press other button->Off ;

·            Momentary : Press and hold->On; Release->Off ;



User guide :
1: Learing ID : Press learning button , LED is on and beginning to learn ;after learning , LED will flash for a while .Then LED will keep being on to learn the next remote. If perss the learned remoter controller , auto-quit learning within 10 seconds;
2: Delete ID : Keep pressing learning button for 5 seconds , LED will be on and enter deleting . LED off means finishing deleting;
3: Antenna with a soft wire or other hard metals (such as whip antenna), try to straighten. Do not go near metal objects;
4: Power supply voltage requires stable and low ripple factor, multi-level filtering (such as adding beads, inductors, capacitors, etc.);

Transmitter Module:
Model No. TB195 Encoder Transmitter
Function discription Encoder Transmitter modules
Operating voltage
3V ~ 12V DC
Static current
max≤8mA(12V), min≤2mA(3V)
Operating frequency 433MHz
modulation Mode ASK/OOK
SAW Frequency stability ±150kHz(max)
Transmitter Power 50mW (315MHz, 12V)
Data rate ≤10Kbps
Antenns length 24 cm (315 MHz), 18 cm (433.92 MHz)
Dimension 36 * 27mm
Encodeing format PT2264 fixing code (same as PT2262 SC2262 ) ,Work with PT2272 decoder IC
Transmitter distance 300-500M (open area)
