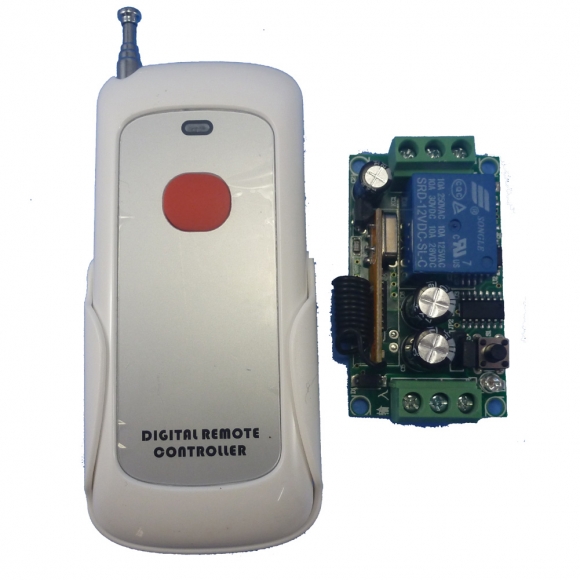

Technical indicators:
1.operating voltage: DC 12V ;
9. Pls connect the receiver modules properly before power supply ;
10: 1 channels;
11: Learning function (can works with EV1527 and PT2262 remote , can store 16 pcs different code remote );
Output:
A.singnal Inter-locking (Latch)----connect 2 and 3 ;
B.singnal Self-locking (Toggle) ---- connect 1 and 2 ;
C.singnal Non-locking (Momentary ) ---- All disconnect ;
· Toggle : Press->On; Press again->Off ;
· Latched : Press->On; Press other button->Off ;
· Momentary : Press and hold->On; Release->Off ;
Relay mode :
- Normally-open (NO) contacts connect the circuit when the relay is activated; the circuit is disconnected when the relay is inactive. It is also called a Form A contact or "make" contact. NO contacts may also be distinguished as "early-make" or NOEM, which means that the contacts close before the button or switch is fully engaged.
- Normally-closed (NC) contacts disconnect the circuit when the relay is activated; the circuit is connected when the relay is inactive. It is also called a Form B contact or "break" contact. NC contacts may also be distinguished as "late-break" or NCLB, which means that the contacts stay closed until the button or switch is fully disengaged.
Learning method and steps
1. Keep pressing learnig key on receiver board , release the button when LED is off , enter the learning state ;
2. Press any key on remote control within 5 seconds , LED flash 3 times and then turn on , then it have success in learning .
Clear the deposit information
Keep Pressing Learning Key , LED turns off , Wait 10 Seconds , LED turn on , that deposited information has been successfully cleared ;

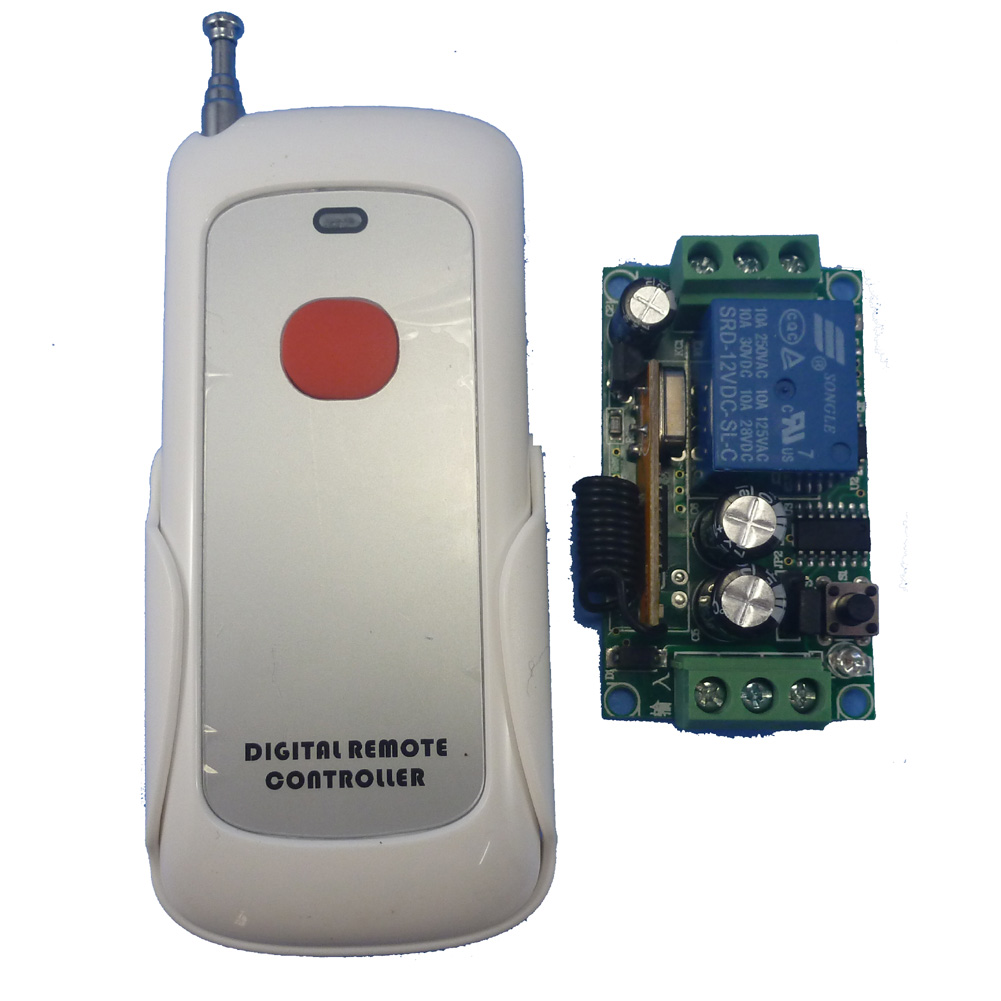

Features / Specifications :
Technical Data :
Wiring Diagram 2:
DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment
