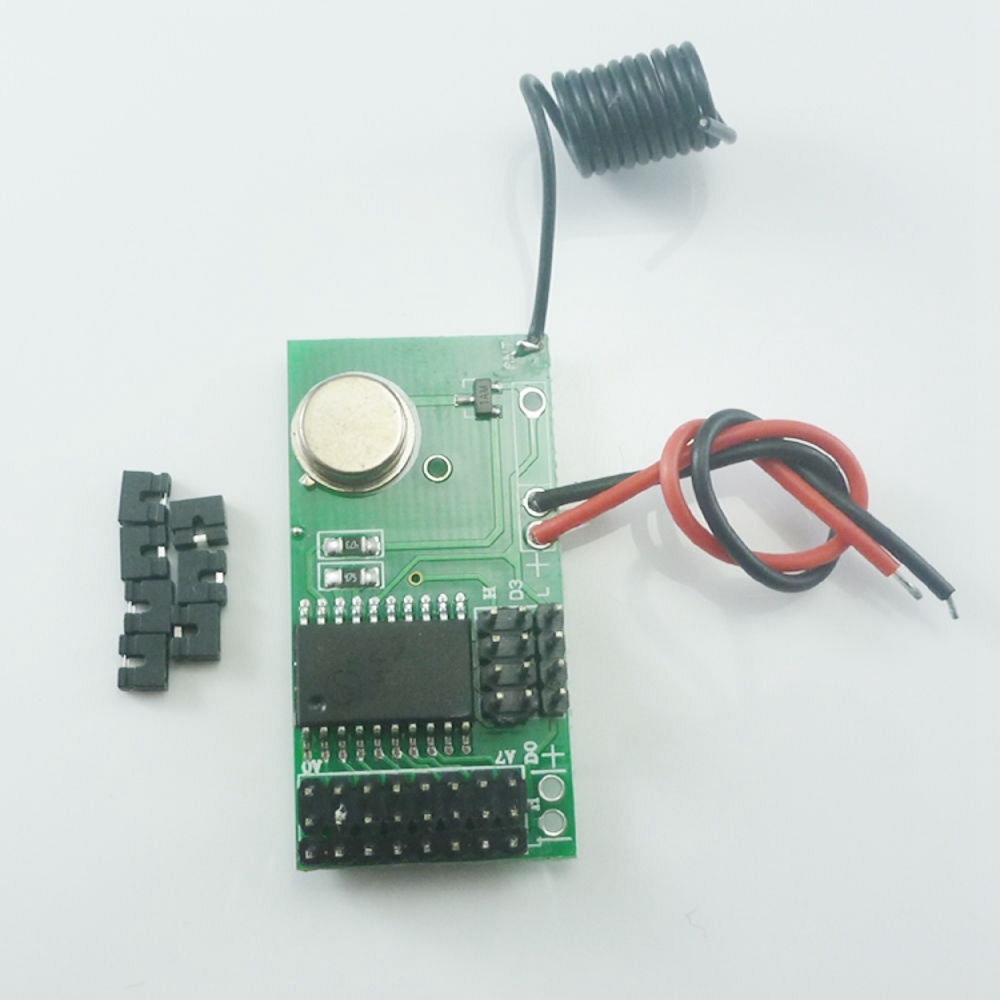

| Model No. | TD003 |
| Function discription | Encoder Transmitter modules |
| Operating voltage |
5V ~ 12V DC (recommand in 12V ， best performance )
|
| Static current |
max≤10mA(12V)， min≤4mA(5V)
|
| Operating frequency | 433MHz |
| modulation Mode | ASK/OOK |
| SAW Frequency stability | ±150kHz(max) |
| RC Resistance | 4.7M |
| Transmitter Power | 50mW(315MHz, 12V) |
| Data rate | ≤10Kbps |
| Antenns length | 24 cm (315 MHz), |
| Dimension | 40mm*20mm*10mm |
| Encodeing format | SC2262 fixing code (same as PT2262 PT2264) ，Work with PT2272 PT2264 decoder IC |
| Transmitter distance | 500-100M (open area) |
| Model No. | TD003 |
| Function discription | Encoder Transmitter modules |
| Operating voltage |
5V ~ 12V DC (recommand in 12V ， best performance )
|
| Static current |
max≤10mA(12V)， min≤4mA(5V)
|
| Operating frequency | 433MHz |
| modulation Mode | ASK/OOK |
| SAW Frequency stability | ±150kHz(max) |
| RC Resistance | 4.7M |
| Transmitter Power | 50mW(315MHz, 12V) |
| Data rate | ≤10Kbps |
| Antenns length | 24 cm (315 MHz), |
| Dimension | 40mm*20mm*10mm |
| Encodeing format | SC2262 fixing code (same as PT2262 PT2264) ，Work with PT2272 PT2264 decoder IC |
| Transmitter distance | 500-100M (open area) |
