N4DVA16 0-5V Modbus 16CH Differential Voltage Collector RS485 Analog Input Module for LI-ON LI-PO NIMH Lifepo4 Battery Measurement

N4DVA16 0-5V Modbus 16CH Differential Voltage Collector RS485 Analog Input Module for LI-ON LI-PO NIMH Lifepo4 Battery Measurement

  • Model: N4DVA16_5V
  • Availability: In stock
  • Weight: 0.072Kg
US$19.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
N4DVA16 is eletechsup's first differential voltage signal acquisition module. It can collect 0-5V/10V differential voltage signals or ordinary voltage signals, and can also monitor the voltage of 1-16 batteries at the same time.

Features:

1 Working voltage: DC 7-25V (DC 12V/24V)
2 Working current: standby 12MA, working 13-20MA
3 16-channel 0-5V/0-10V differential voltage input
4 Supports standard Modbus RTU instructions, function code: write 06/16, read 03/04
5. With hardware restoration to factory settings function, RS485 with TVS anti-surge protection, anti-reverse power supply and self-restoring fuse
6. In MODBUS command mode, up to 64 devices can be supported in parallel.
7 The default baud rate is 9600BPS. The baud rate can be selected through instructions: 1200 2400 4800 19200 38400 57600 115200BPS.
8. You can choose the parity mode is no parity, even parity and odd parity
9 You can set the data sending return time, the maximum can be set to 1000ms
10 Maximum load: 10A/250VAC, 10A/125VAC, 10A /30VDC, 10A /28VDC, 10A /12VDC
11 sizes 96* 72 * 18mm (Only Board) 98* 82*40mm (with DIN Shell):
12 Weight: 72 grams (Only Board); 148 grams (with DIN Shell )



Interface definition:

GND: Power input-
VIN : Power input+(DC 7-25V)
A+: RS485 signalA+
B-: RS485 signal B-
V1- : Voltage input channel 1-
V1+: Voltage input channel 1+
V2- : Voltage input channel 2-
V2+: Voltage input channel 2+
...
V16- : Voltage input channel 16-
V16+: Voltage input channel 16+

For more information, please contact me


Application

PLC Analog Input expansion board
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;
for LI-ON LI-PO NIMH Lifepo4 Battery Measurement
Automatic curtain control
0-10V/5V Voltage instrumentation
Wiring Diagram 1: 16-channel differential voltage signal acquisition

Wiring diagram 2: 16-channel common voltage signal collection

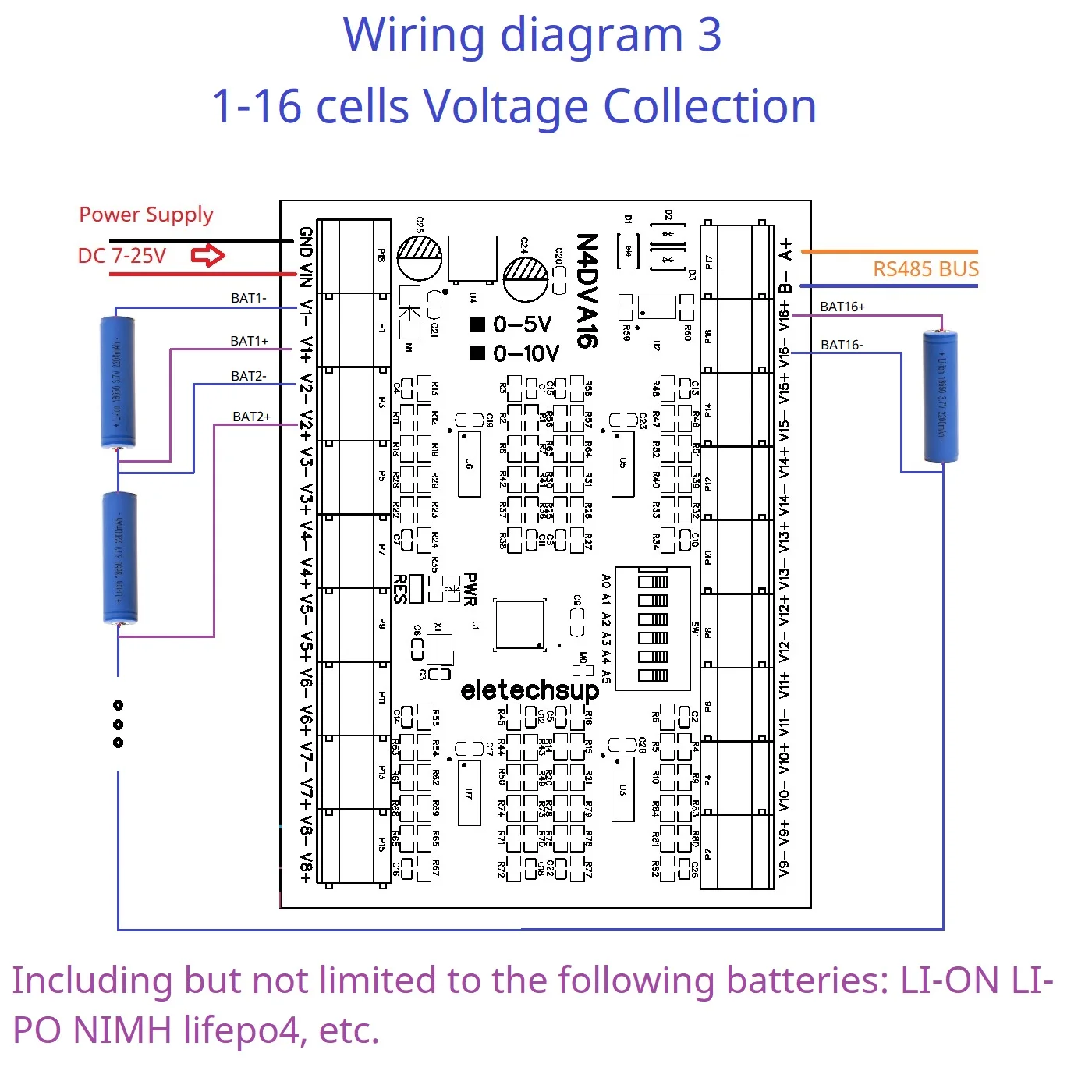

Wiring diagram 3: 1-16 cells Voltage Collection
Including but not limited to the following batteries: LI-ON LI-PO NIMH lifepo4, etc.
