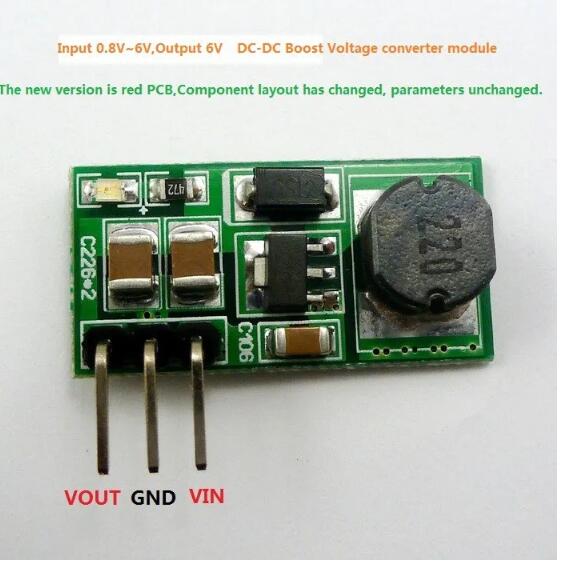

Product Name:  DC-DC 1.5V 3V 3.3V 3.7V 4.5V 5V to 6V Step-up Boost Converter Module for Relay Motor
Module No.:  TB396



Packing list:

1 PCS 1V-6V TO 6V Step-up Boost Modules(PCB Color : RED)





Description:

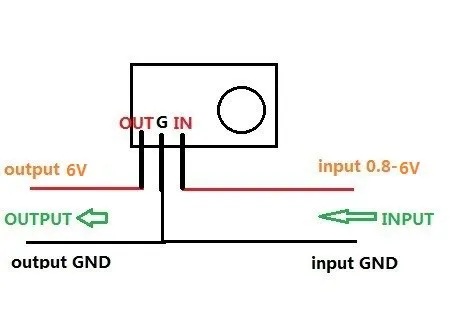

Input voltage 0.8 ~ 6V, output 6V
Maximum output current: 600MA
Start Voltage 0.8V,    Output Current 20MA
INPUT 1-1.5V,         OUTPUT 6V 20-60MA;
INPUT 1.5-3V,         OUTPUT 6V 60-200MA;
INPUT 3-4.2V,         OUTPUT 6V 200-300MA;
INPUT 4.2-5V,         OUTPUT 6V 300-500MA;
INPUT above 5V,     OUTPUT 6V 500-600MA;


DC-DC Boost module working frequency 100KHZ. efficiency is normal 80% , can be up to 95%. On-board high-precision,
Size : 20mm X 12mm (length X width)
The input and output terminals using the wire bonding connection, the selection of a plurality of parallel filtering of tantalum capacitors, effectively filter out the power supply noise.
Overcurrent burn out warranty!
Booster plate, regulator, the output voltage is always 6V!

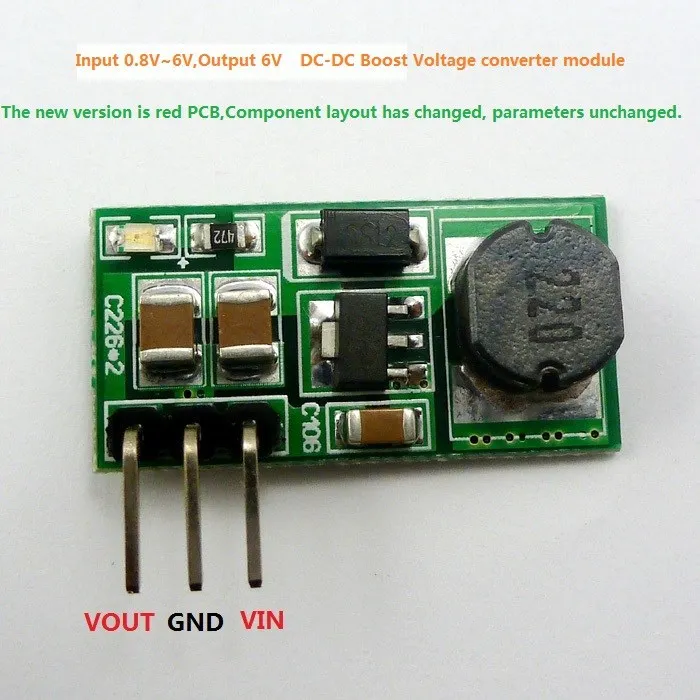

Prompt : The new version is red PCB,Component layout has changed, Pin order and parameters unchanged.


 Applications

Battery powered equipment
Breadboard Power Supply
6V Small power motors
Camera, Video camera
6V Toy car
PDA
LED Lighting
Wireless communication equipment
Ardiuno UNO MEGA2560 PRO MINI power supply
Audio equipment




This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

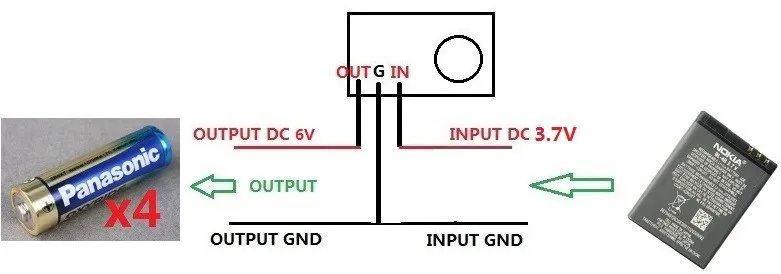

Input 3.7V/480MA,Output 6V/250MA
Input 4.5V/600MA,Output 6V/380MA

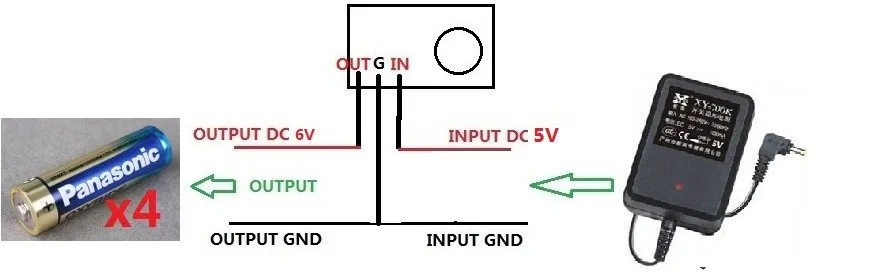

Input 5V/700MA,Output 6V/500MA
