OPMSA04 NPN Input 12-24V NPN Output 4CH DC 3.3-24V 0-2kHz PWM Signal Amplifier NPN/PNP Logic Level Converter LED Driver 5A IO Current Amplifier

OPMSA04 NPN Input 12-24V NPN Output 4CH DC 3.3-24V 0-2kHz PWM Signal Amplifier NPN/PNP Logic Level Converter LED Driver 5A IO Current Amplifier

  • Model: OPMSA04_NPN_N_12V
  • Availability: In stock
  • Weight: 0.021Kg
US$6.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns

Packname:DC 3.3-24V 4CH 5A NPN/PNP Digital Logic Level Signal Amplifier LED Driver OPMSA04 for Arduiuo Raspberry Pi Pico ESP32 ESP8266

Packing included:
1 PCS 4-Ch 3.3-24V
 NPN PNP PLC Signal Amplifier Module



Description:

Specification
1. Adopt original drive chip, stable and reliable performance.
2. Compatible with postive control,negative control two input modes.
3. Each channel has an LED indicator to indicate the current working state of the channel.
4. The input signal adopts optocoupler isolation design, which has strong anti-interference ability.
5. The module is designed wiht standard rail type.

Technical Paramteres:
Control Voltage: 3.3-8V(5V) and 8-24V(12V)
Input current: 8-15mA
Output type: Non-Contact type
Drive component: P/N channel FET
Operating time: 1ms or less
Rest time: 1ms or less
MAX switching frequency: 2000Hz
Module installation method: standard rail mounting
X1...X4 is the signal input terminal, COM is the signal common terminal.
Input level signal: 5V version 3-8V;12V version 8-25V
Y1...X4 is MOS load output terminals.
Load current: DC 3.3-4.5V <2A; DC 4.5-8V <4A;DC 8-24V <5A;

4CH:

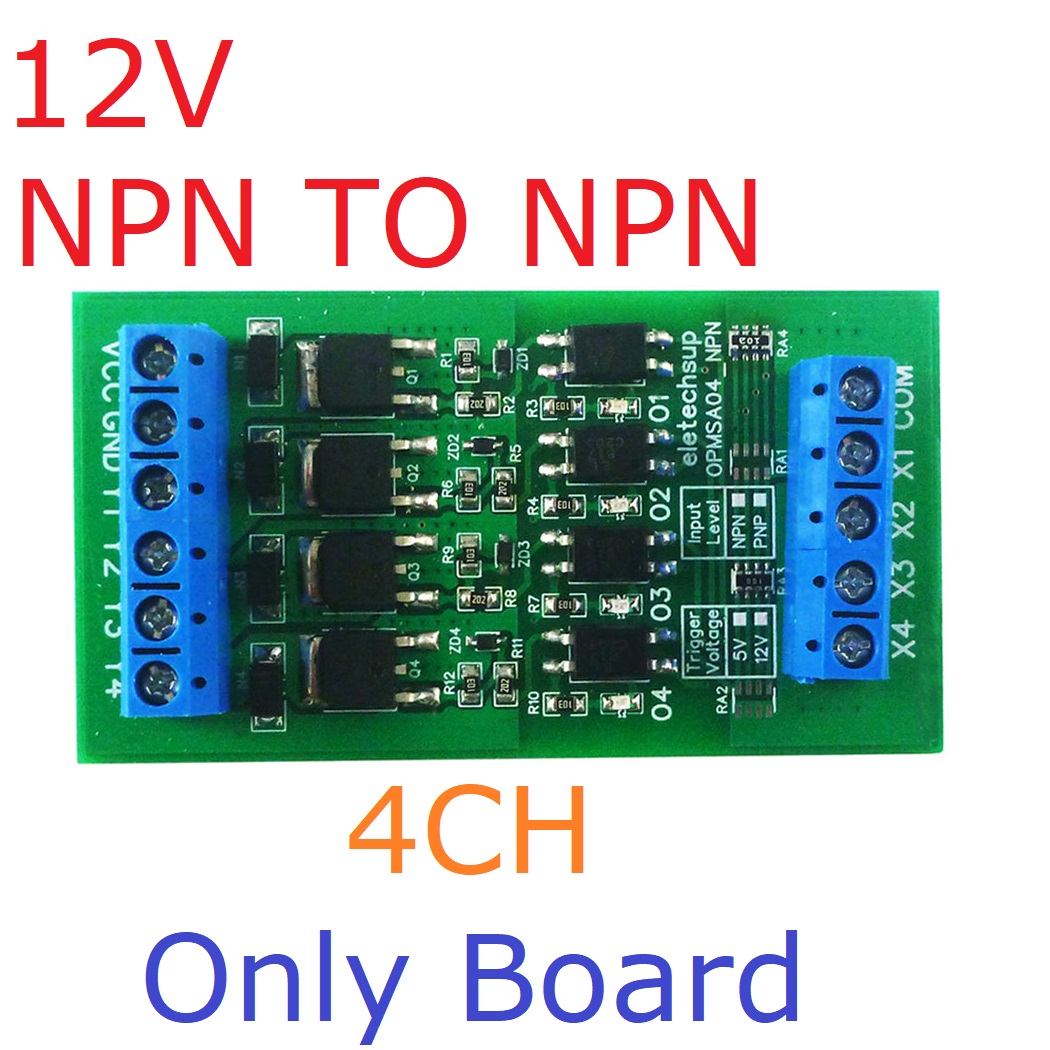

Size :39*72*12(Only Board), 42*86*36(with Shell)
Weight : 21g(Only Board),62g(with Shell)
