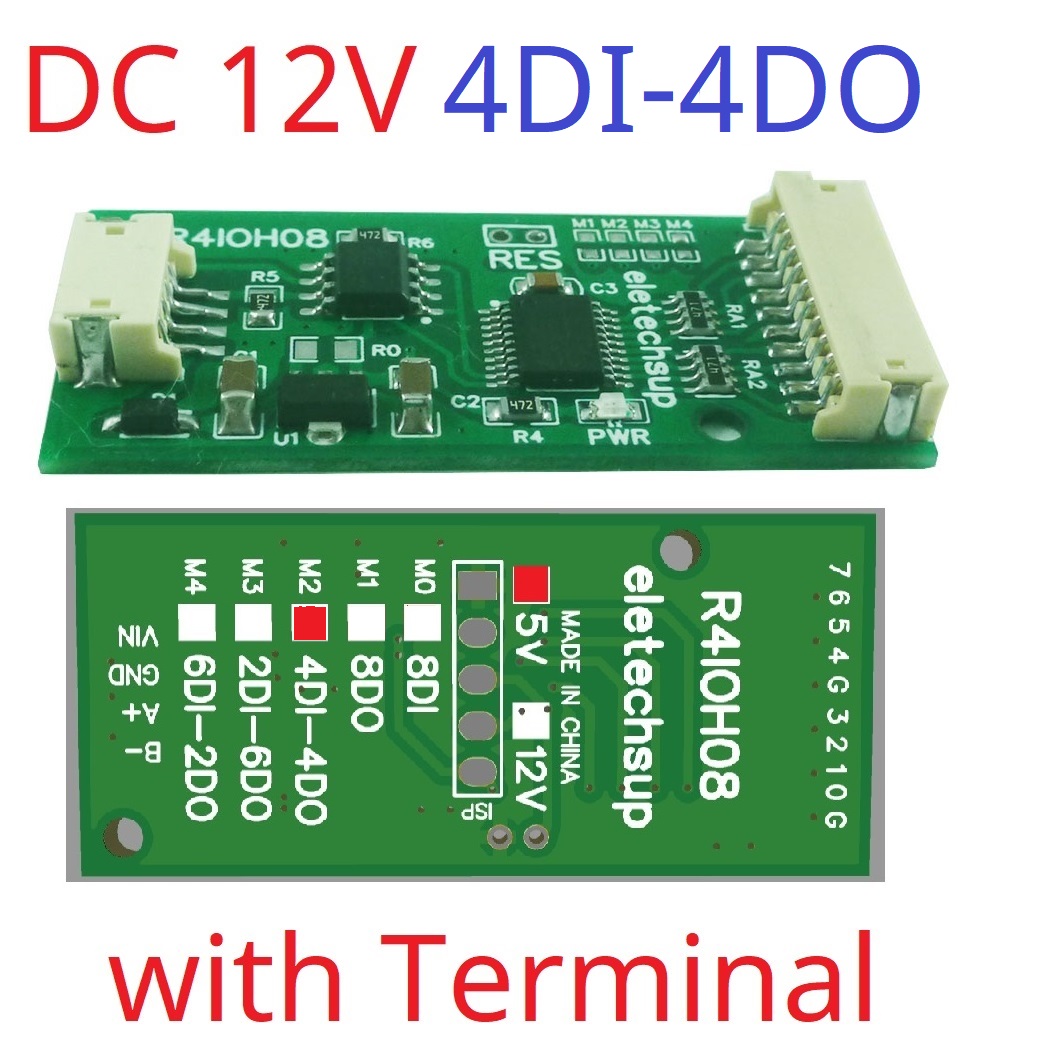

R4IOH08 12V 4DI-4DO Multipurpose RS485 Digital Input Output Module mini PLC IO Dilator DC 12V 24V for Arduino

R4IOH08 12V 4DI-4DO Multipurpose RS485 Digital Input Output Module mini PLC IO Dilator DC 12V 24V for Arduino

  • Model: R4IOH08_PIN_4DI-4DO_12V
  • Availability: In stock
  • Weight: 0.003Kg
US$3.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns




1 Working voltage: DC 12V (6-25V) OR
DC5V two voltage versions

2 Working current: 7-13MA

3 MODBUS RTU Function Codes:
01/02/03/05/06/15/16

4 5 Function IO modes can be selected by jumper: 8DI/8DO/4DI-4DO/2DI-6DO/6DI-2DO

5 By modifying the 0X00F5/0X00F6 register, the input and output levels (NPN/PNP) can be switched

6 Input mode: Support 3.3V/5V TTL level input, there are two input modes of low level input (NPN) and high level input(PNP)

7 Output mode: 5V TTL level, low level (
NPN) / high level output(PNP)

8 In MODBUS command mode, it can support up to 247 devices in parallel

9 Input port status supports query (default) and automatic reporting

10 BaudRate:1200 2400 4800 9600(default) 19200 38400 57600 115200, None/Odd/Even Parity

11 Use the ZH1.5MM Connector to make the board small and thin

12 Size: 44*20*5(Very Small and Very Thin)

13 Weight: 2.8grams(Very Light)




For a more detailed description, please contact me!




Packing list:


1 PCS 8 channels
Very Small and Very Thin RS485 Multifunctional Digital Quantity DI-DO Module











This module is a multi-function board, you can select various function modes through jumpers.


The jumper uses 0603 0Ω resistor (or wire)






Different Versions of Pin Definitions



For MODBUS RTU command details, see:''R4IOH08 MODBUS RTU Commamd''







By modifying the 0X00F5/0X00F6 register, various input and output levels (NPN/PNP) can be switched

NPN Input & NPN Output(Register 0X00F5=0,0X00F6=0,Default)
PNP Input & NPN Output(Register 0X00F5=1,0X00F6=0)
NPN Input & PNP Output(Register 0X00F5=0,0X00F6=1)
PNP Input & PNP Output(Register 0X00F5=1,0X00F6=1)













Note: The board does not include the ZH1.5mm terminal wire, which needs to be purchased separately








































































































1 Working voltage: DC 12V (6-25V) OR
DC5V two voltage versions

2 Working current: 7-13MA

3 MODBUS RTU Function Codes:
01/02/03/05/06/15/16

4 5 Function IO modes can be selected by jumper: 8DI/8DO/4DI-4DO/2DI-6DO/6DI-2DO

5 By modifying the 0X00F5/0X00F6 register, the input and output levels (NPN/PNP) can be switched

6 Input mode: Support 3.3V/5V TTL level input, there are two input modes of low level input (NPN) and high level input(PNP)

7 Output mode: 5V TTL level, low level (
NPN) / high level output(PNP)

8 In MODBUS command mode, it can support up to 247 devices in parallel

9 Input port status supports query (default) and automatic reporting

10 BaudRate:1200 2400 4800 9600(default) 19200 38400 57600 115200, None/Odd/Even Parity

11 Use the ZH1.5MM Connector to make the board small and thin

12 Size: 44*20*5(Very Small and Very Thin)

13 Weight: 2.8grams(Very Light)




For a more detailed description, please contact me!




Packing list:


1 PCS 8 channels
Very Small and Very Thin RS485 Multifunctional Digital Quantity DI-DO Module











This module is a multi-function board, you can select various function modes through jumpers.


The jumper uses 0603 0Ω resistor (or wire)






Different Versions of Pin Definitions



For MODBUS RTU command details, see:''R4IOH08 MODBUS RTU Commamd''







By modifying the 0X00F5/0X00F6 register, various input and output levels (NPN/PNP) can be switched

NPN Input & NPN Output(Register 0X00F5=0,0X00F6=0,Default)
PNP Input & NPN Output(Register 0X00F5=1,0X00F6=0)
NPN Input & PNP Output(Register 0X00F5=0,0X00F6=1)
PNP Input & PNP Output(Register 0X00F5=1,0X00F6=1)













Note: The board does not include the ZH1.5mm terminal wire, which needs to be purchased separately
