QCTCAJTA Type-C PD2.0 PD3.0 QC2.0 QC3.0 PD2.0 AFC Fast Charge decoy Trigger Module DC 5V 9V 12V 15V 20V For PTZ Camera PLC

QCTCAJTA Type-C PD2.0 PD3.0 QC2.0 QC3.0 PD2.0 AFC Fast Charge decoy Trigger Module DC 5V 9V 12V 15V 20V For PTZ Camera PLC

  • Model: QCTCAJTA
  • Availability: In stock
  • Weight: 0.003Kg
US$2.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns

Product Name: Type-C PD2.0 PD3.0 QC2.0 QC3.0 PD2.0 AFC Fast Charge decoy Trigger Module DC 5V 9V 12V 15V 20V For PTZ Camera PLC

Packing list:

1 pcs PD QC Voltage Trigger Module;

Description:

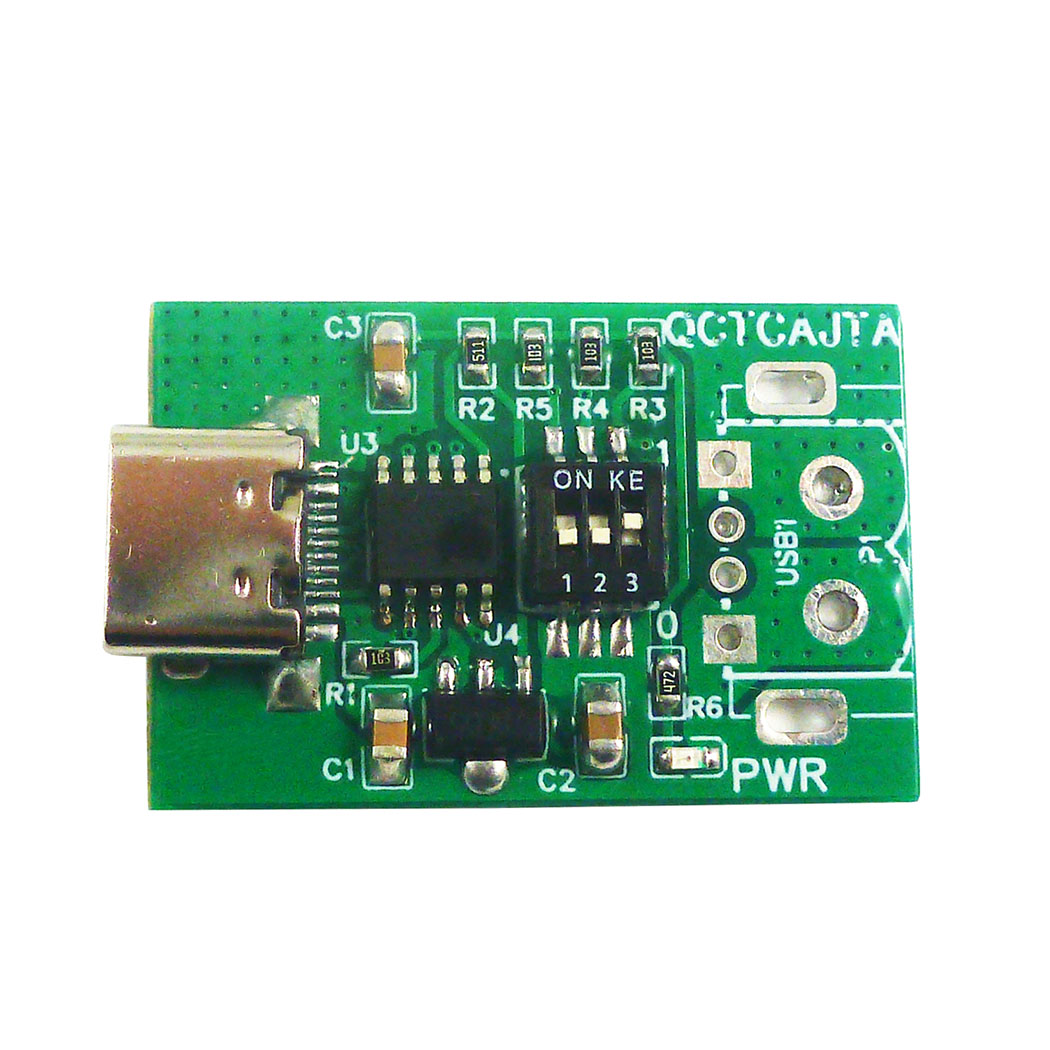

DIP switch to select voltage output Module(QCTCAJTA):

1.Fast charging support agreement:PD2.0/PD3.0.QC2.0/QC3.0.AFC.FCP
2.Voltage supported by the module:5V/9V/12V/15V/20V(Charger support is required)
3. Voltage regulation mode: according to the table behind the board, adjust the dial switch to control the voltage output


Note:
1 After adjusting the dial switch, because there is no voltage indicator, it is recommended to use a multimeter to measure the voltage before connecting to the application circuit
2 If the dial switch is not adjusted according to the table, the module will output the voltage supported by a module at will
3 Whether it can output these voltages (5V 9V 12V 15V 20V) is determined by your charger.


Size:30mm X 20mm X 10mm
Weight : 3g(Standard),4.6g(with Terminal),4.4g(with USB)


Button to select voltage output Module(QCTC20TB):

Product introduction:
1.Fast charging support agreement: support PD3 0.PD2. 0. QC, FCP, AFC voltage decoy output, mode free switching can also be set, and only PD is supported.
2. Support 5V / 9V / 12V / 15V / 20V decoy output (the specific range is related to your power supply).
3. It has the function of key lock to prevent misoperation (to avoid damaging the load equipment by setting the voltage by mistake).
4.5V/9V/12V/15V/20V quick setting. LED indication output.
5. The parameters are automatically saved and power on again to execute the last deception setting.
6. Ultra low power consumption, high current, support 100W output.
7. Maximum 20V / 2A output (actual value depends on your power supply).
8. Type-C is integrated and durable.
9. It is suitable for aging test, and the module can withstand voltage above 30V.
10. Each voltage can be quickly switched with an external key

Instructions:
1.PD only short contact: after short connection, the module only supports PD protocol.
2. DM and DP short-circuit contact: after short-circuit, DM and DP can be output from USB. Unless necessary, short-circuit is not recommended.
3.5 independent key short contacts: five independent keys can be connected to quickly switch the voltage, which can be short circuit, short press and long press (the grounding of these five short contacts on the module circuit are connected together).
4. S1 short contact: This is the key lock function. After short connection, the switching voltage needs to be unlocked. The unlocking method is to press and hold the key to power on. To power on again, you need to unlock again.
Matters needing attention:
1. The power supply must support PD or QC protocol.
2. Before use, confirm whether the output voltage is right to the power consumption voltage of the applied electrical equipment, so as to avoid burning the equipment due to misoperation, otherwise the consequences will be borne by yourself.
3. Try to hold the edge of the board with your hand and do not directly contact the chip to avoid human static electricity damaging the chip.
4. When the setting of the decoy output voltage is unknown, do not connect the load first, and then connect it after confirmation to avoid the voltage exceeding the withstand voltage of the load.
5. Cause of voltage jump (indicator light flashing): if the decoy output without load is normal, the voltage jump occurs with load (the voltage just rises and falls back to 5V or is simply disconnected). In this case, the load power exceeds the power that the power supply can provide. At this time, the power supply will be forced to carry out step-down or power-off protection. At this time, you can only change a higher power supply or reduce the power of your load.

Physical map:
Size: 40.57 x 20.32 X 10mm
Weight : 4.4g(Standard),6.5g(with Terminal),6g(with USB)
Wiring display:
