Product Name: 8CH Input/Output UART RS485 Modbus RTU Controller PLC Expansion Module For Arduino UNO MEGA NANO STM32 AVR PIC















Package inlcuded:


1 x
8-channel Multifunction
input Output module(Please select the version you need)







Description:








1 Working voltage: DC 12V (6-24V)



2 Working current: 10-16MA



3 MODBUS RTU 03 06 16 command control mode



4 Three functional modes can be selected by jumpers: 8 channel input/8 channel output/4 input 4 output



5 Input mode: support 3.3V/5V TTL level input, there are two input modes: low level input (default) and high level input



6 In output mode: 5V TTL level, low level (default)/high level output



7 In MODBUS command mode, it can support up to 247 devices to be used in parallel



8 Input port status supports query (default) and automatic reporting



9 The default baud rate is 9600BPS, which can be configured to support 1200 2400 4800 19200 baud rate



10 Size: 44*31*15

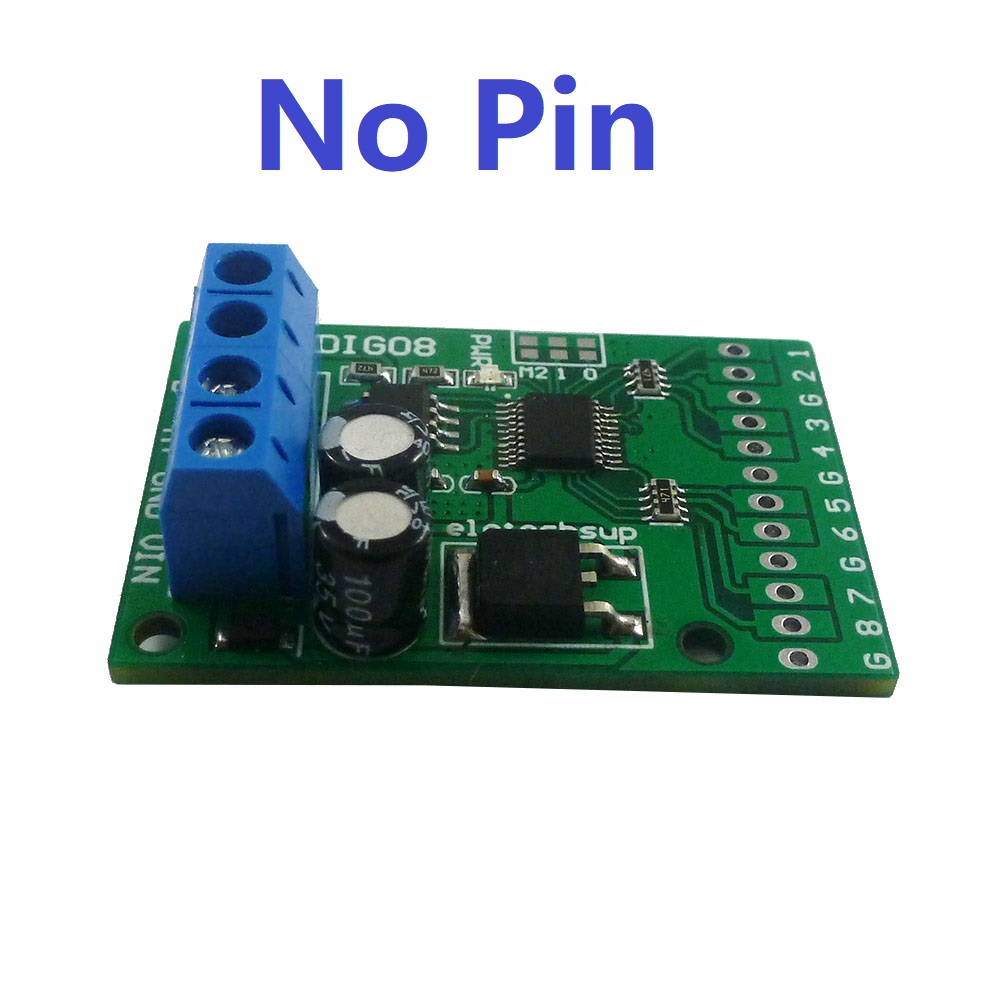

11 Weight: 9 grams (no Pin), 10 grams (with Pin), 12.5 grams (with Terminals)











Instruction manual Please ask us after the purchase








Application



Automated industry PLC

Digital in to RS485/RS485
to Digital out

Smart Home,Home Automation ;

Identification system;

CCTV Camera PTZ Control;

Security system;

LED dot matrix screen;

RS485 remote control;






Choose different functions through jumpers on the board:
As 8-channel inputs Please refer to ''N4DIG08 MODBUS RTU instruction (8-channel input)''
As 8-channel outputs Please refer to ''N4DIG08 MODBUS RTU instruction (8-channel output)''
As 4 input 4output Please refer to ''N4DIG08 MODBUS RTU instruction (4 Input 4 Output)''





As an 8-channel input wiring diagram:





As an 8-channel output wiring diagram:




As a 4 input 4 output wiring diagram:





RS485 Wiring diagram:
