2: Operating Current : 11-15MA
3: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands
4: Two instruction-control mode : AT command and MODBUS command
5: Under the AT command ,the maximum delay is 9999 seconds
Under the MODBUS command ,the maximum delay is 255 seconds
6 AT commands can be made serial HyperTerminal (serial assistant) Enter;
MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;
7 Automatic recognition of two kinds of commamds,no need to switch..
7 Under the MODBUS command mode, it can support up to 247 devices in parallel
8 With RS485 and RS232 (TTL) dual bus interface
9 Output control pins 16, 5V TTL level, low level (default) / high level output
10 Size: 40 * 30 * 22mm(A version); 40 * 30 * 11.5mm(B version)
11 Weight: 9.2g(A version); 6.2g(B version);

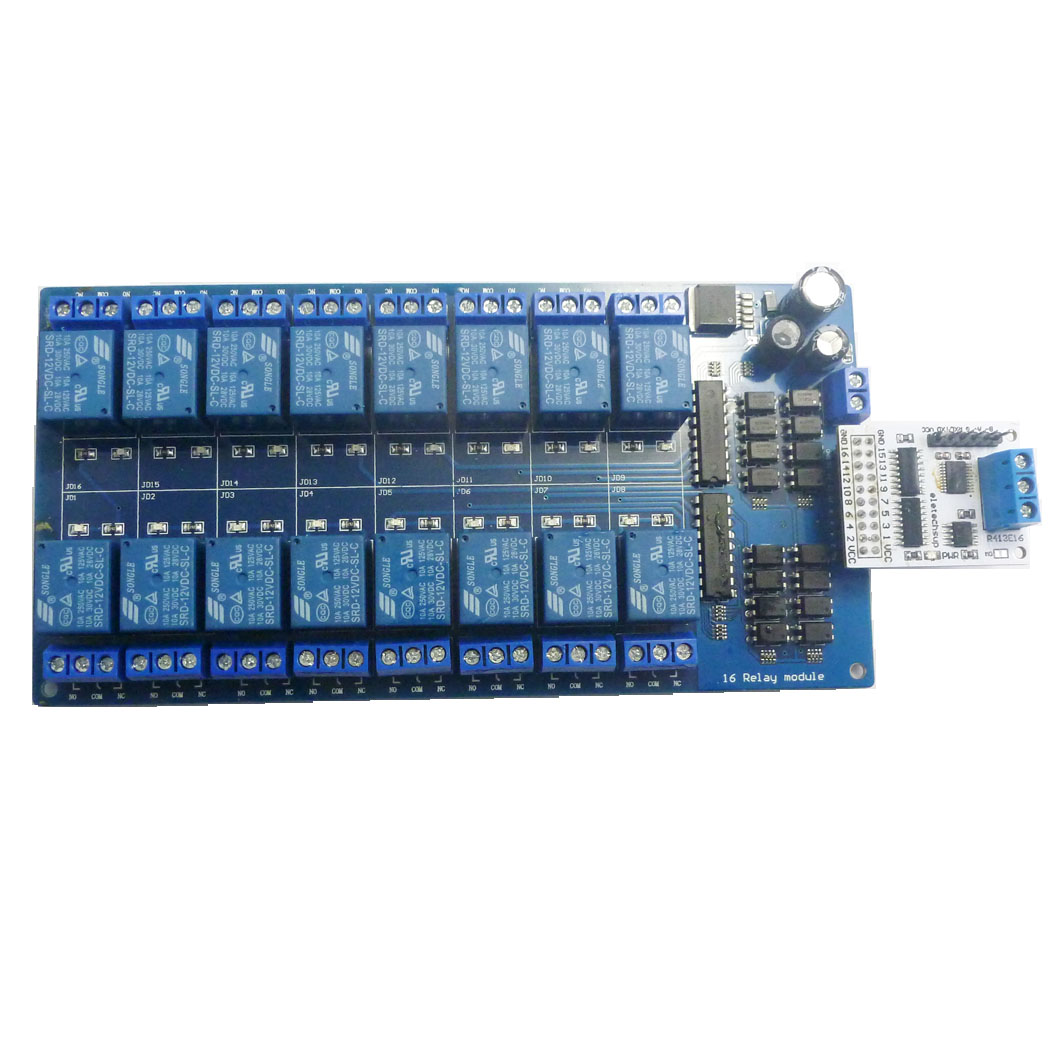

Note: The relay board needs to be purchased separately or prepared by yourself
5V 12V 24V 1-16 Channel Relay Module
Smart Home,Home Automation ;
Identification system;
Motor FW & BW;
CCTV Camera PTZ Control;
Security system;
LED dot matrix screen;
RS485 remote control;
diy electronic
MODBUS command and AT command is automatically recognized, no switching required
Output level selection : ( figure above) M0 disconnect is Low level output. M0 Connect is Hight level output
Slave ID: Different ''Sliver ID'' can be set by command, the maximum number is 247
Under the MODBUS command mode,the slave ID must be correct
command Description, Please refer to '' 16 Channel Multifunction RS485 Module commamd''
2 MODBUS command mode, you can control a variety of ways: Serial Hyper Terminal Control (need to manually add the CRC), Modbus Poll software control (software automatically add the CRC), PLC or MCU process control
It can control 1-16 channels 5V/6V/9V/12V/24V Relay Module
With RS485 interface and RS232 (TTL) interface(It is recommended to remove the SP485 chip)
Version identification:
A version for esy insertion into existing relay boards
B version for easy embedding of custom PCB
