2.Standby current (all relays closed) 11MA, 1 relay open 40MA, 2 relays open 69MA, 3 relays open 95MA,4 relays open 123MA

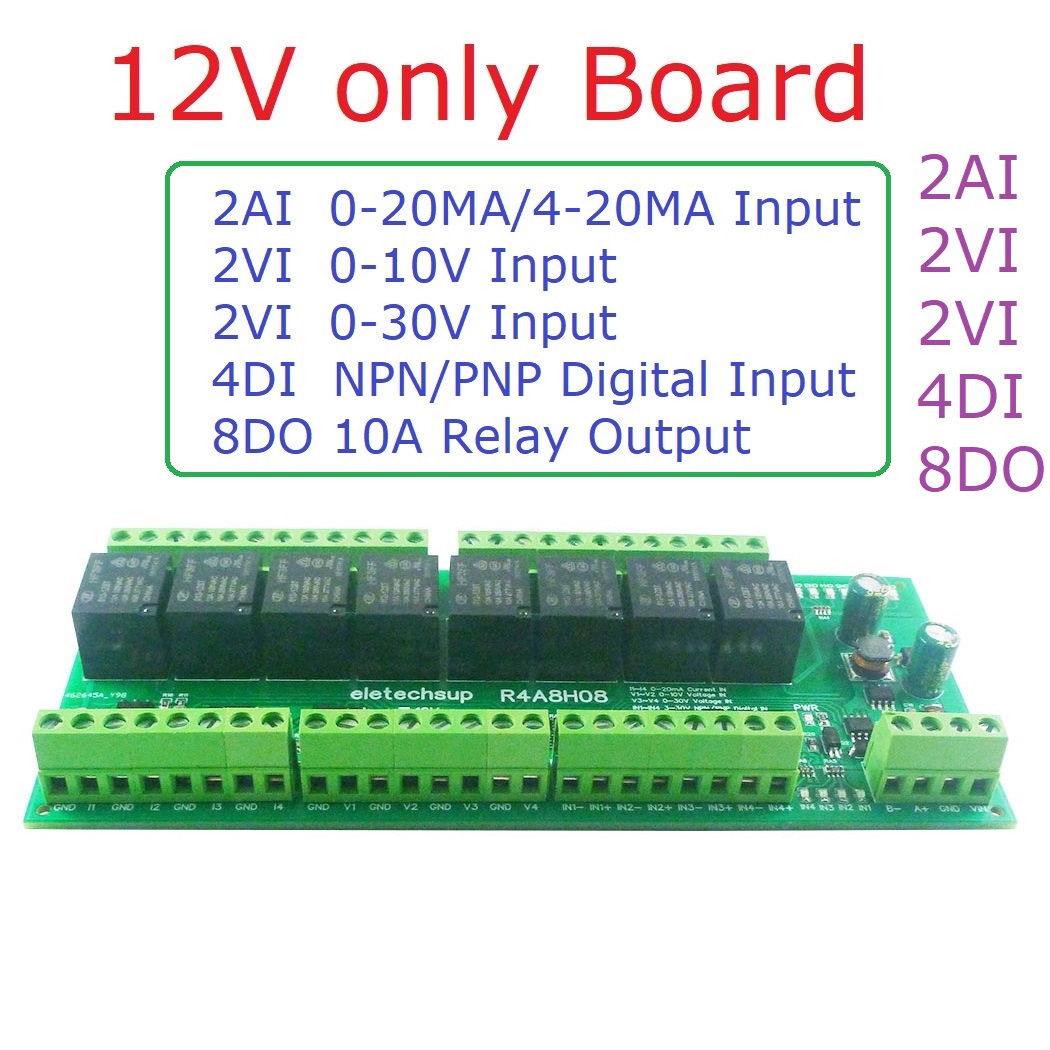

3:4-channel 0-20MA/4-20MA current analog input, 2-channel 0-10V voltage analog input, 2-channel 0-30V voltage analog input, 4-channel photoelectric isolation switch input (compatible with NPN/PNP), 8-channel 10A relay switch output
4: Support standard Modbus RTU command, function code:
write 05/06/15/16 read 01/02/03/04
5: With hardware Reset function, with TVS anti-surge protection
6 Under the MODBUS command mode, it can support up to 64 devices in parallel
7 The default baud rate is 9600BPS. The baud rate can be selected by Conmand 2400 4800 9600 19200 38400 57600 115200BPS
8 The parity can be none parity, even parity and odd parity
9 The data sending and returning time can be set,with a maximum value of 1000ms
10 Size: 168* 72 * 12mm(Only PCB Board);174* 82*40mm(with Din Rail Box)
11 Weight: 165g(Only PCB Board);285g(with Din Rail Box)
12 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
Upgraded Features:
Supports 01 02 03 04 05 06 16 function code
Support more baud rates, can modify the parity bit
Hardware reset to factory settings (RES jumper)
Upgraded relays (more durable)
TVS anti-surge protection
For more information, please contact me
DIN rail Box parameters:
Product model: UM72
Color: Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 168mm PCB boards
Net weight: 120g
Installation: DIN35 and C45 rail
Smart Home,Home Automation ,Wiser Home;
PTZ Camera
Security Monitoring
Identification system;
IP Camera
LED Lamp Drivers
Automatic curtain control
Wiring Diagram:
4-channel 0-20MA current analog input
2-channel 0-10V voltage analog input
2-channel 0-30V voltage analog input
4-channel NPN/PNP Digital Input
8-channel 10A relay switch output
Typical applications:
1 Control a single module
2 Control multiple modules
