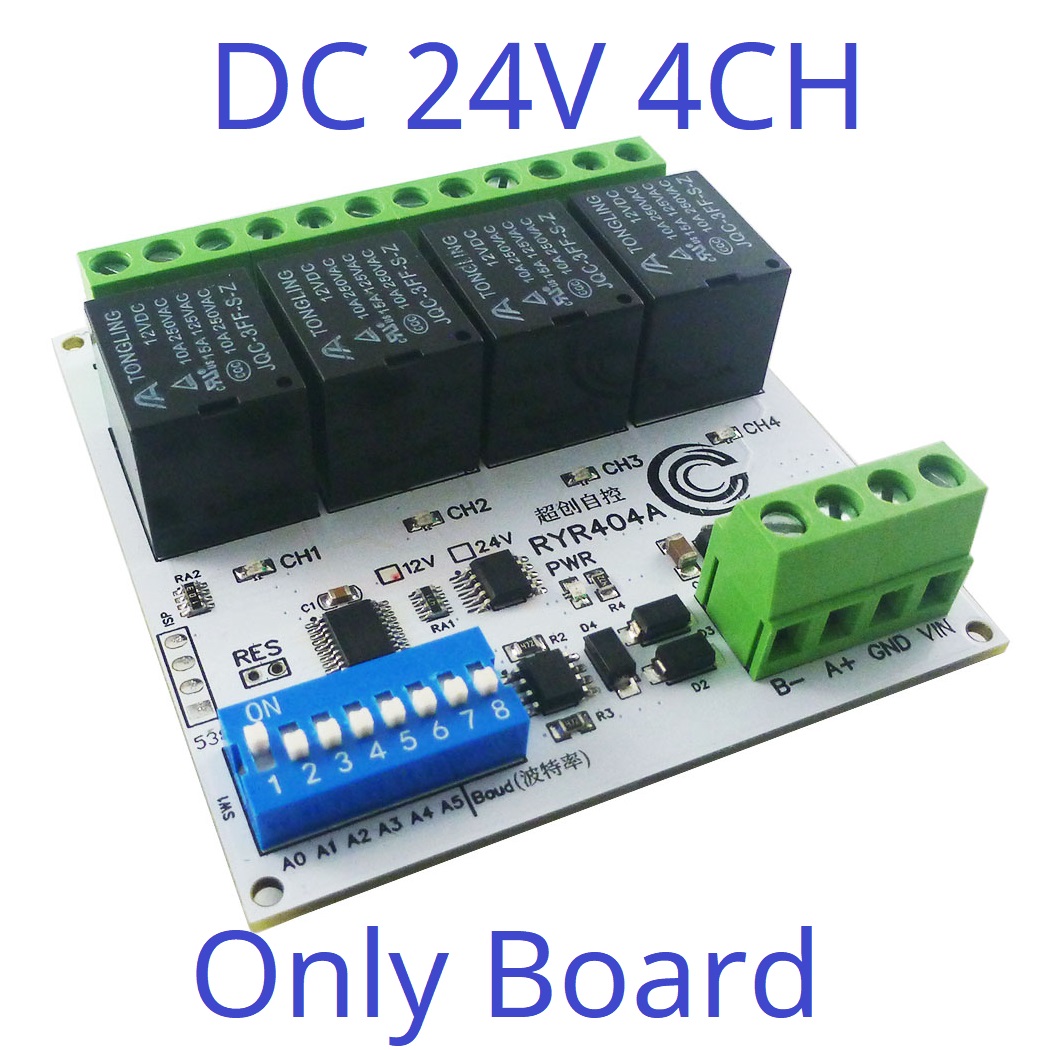

RYR404A Easy Setup 24V 4 Channels Modbus Relay Board IOT RS485 Network PC UART Industrial Control Switch Module for PLC HMI TP PTZ

RYR404A Easy Setup 24V 4 Channels Modbus Relay Board IOT RS485 Network PC UART Industrial Control Switch Module for PLC HMI TP PTZ

  • Model: RYR404A_24V
  • Availability: In stock
  • Weight: 0.08Kg
US$16.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Description:

1: Working Voltage DC 24V;
2: Standby current (all relays closed) 5MA/6MA, 1 relay ON 30MA/49MA, ...,32relay ON 1500MA
3: ''ON'' ''OFF'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''Open all'' ''Close all''8 Commands
4: MODBUS RTU command, Write 05/06/15/16, Read 01/03
5: Under the ''Delay'' command ,the maximum delay is 255 seconds;
6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;
7 Set the Slave ID through the DIP Switch: 1-63 ID
8 Set BaudRate via DIP switch : 9600/19200/38400/115200BPS
9 Parity :None(Default)/Even/Odd



For more information, please contact me


Application

PLC IO Expansion Board
HMI Configuration Software
Smart Home,Home Automation ,Automated industry;
PTZ CCTV Camera
Security Monitoring
Identification system;
Automatic curtain control
LED Control
Farm water supply system
Stirring system
