SHA8C01 5V TTL232 -40-125Celsius 0-100%RH SHT30 SHT3X RS485 RS232 TTL Modbus Rtu Digital Temperature Humidity Sensor Module

SHA8C01 5V TTL232 -40-125Celsius 0-100%RH SHT30 SHT3X RS485 RS232 TTL Modbus Rtu Digital Temperature Humidity Sensor Module

  • Model: SHA8C01_232_5V_A
  • Availability: In stock
  • Weight: 0.003Kg
US$2.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name: -40-125Celsius 0-100%RH SHT30 SHT3X RS485 RS232 TTL Modbus Rtu Digital Temperature Humidity Sensor Module



Packing list:

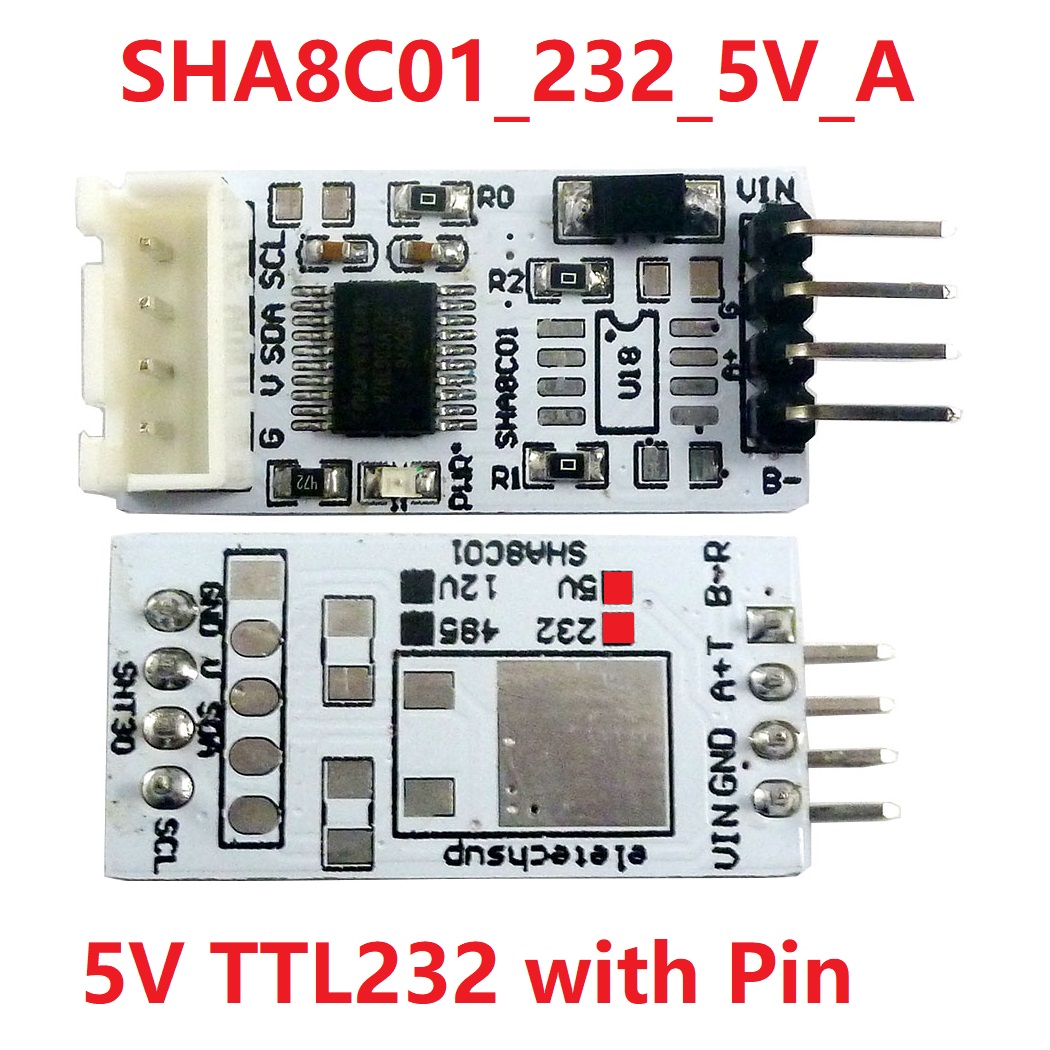

1 pcs SHA8C01 RS485/TTL232 Temperature and humidity collector
Board(Please choose the version you need)


Description :

SHA8C01 RS485 SHT30 Acquisition module Description:

Working voltage: 5V version(DC 3.7-5.5V); 12V version(6-25V)

Working current: 7-13MA

MODBUS RTU protocol, 03 read command, 06 write command.

Serial port baud rate: 9600 (default), N, 8, 1

By modifying the 485 address, up to 247 modules can be cascaded (more than 16 please use R485 repeater)

Adapted sensor: SHT30 temperature and humidity sensor

Temperature measurement range: -40-125℃ (Because the shell and wire are not resistant to high temperature, please use it in the environment of -40-80℃)

Humidity measurement range: 0-100%RH Accuracy: ±0.2℃; ±2%RH

Size: 30 X 15 X 5.8MM
Weight: 2g

SHT30 sensor specifications:

Product model: TB446 SHT30
Working voltage: 2.5-5.5V DC
Output signal: IIC digital signal
Output interface: XH2.54 4P terminal block
Temperature measurement range: -40-125℃ (Because the shell and wire are not resistant to high temperature, please use it in the environment of -40-80℃)
Humidity measurement range: 0-100%RH
Accuracy: ±0.2℃; ±2%RH
IIC address: 0X44
Wire length: 30 cm
Weight: 15 grams
Shell material: ABS

For more information, please contact us!!!

Typical application:

Temperature and humidity controller
Industrial Systems
Consumer Products
Thermometers
Thermally Sensitive Systems
Indoor and outdoor temperature measurement
Temperature in vegetable garden
Weather forecasting, and monitoring
Temperature and humidity in Computer Room
Warehouse temperature and humidity
