IO23B01 AC 110V 220V Multifunction Self-lock Relay PLC Cycle Timer Module Delay Time Switch

IO23B01 AC 110V 220V Multifunction Self-lock Relay PLC Cycle Timer Module Delay Time Switch

  • Model: IO23B01
  • Availability: In stock
  • Weight: 0.04Kg
US$5.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Typical applications:

Home lighting system
Remote control switch
Remote locking
Smart Home / Home Automation
AC 85-265V LED lighting
Fluorescent lamp
AC 85-265V DC Motor
Fluorescent lamp
Automotive electronics
Industrial automation and control


1 AC 85-265V control circuit,Power supply is AC 85-265V ,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other AC 85-265V equipment

2 DC 1-110V control circuit,Power supply is AC 85-265V ,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC equipment

3 DC 1-110V control circuit,Power supply is DC 5V ,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other AC DC equipment

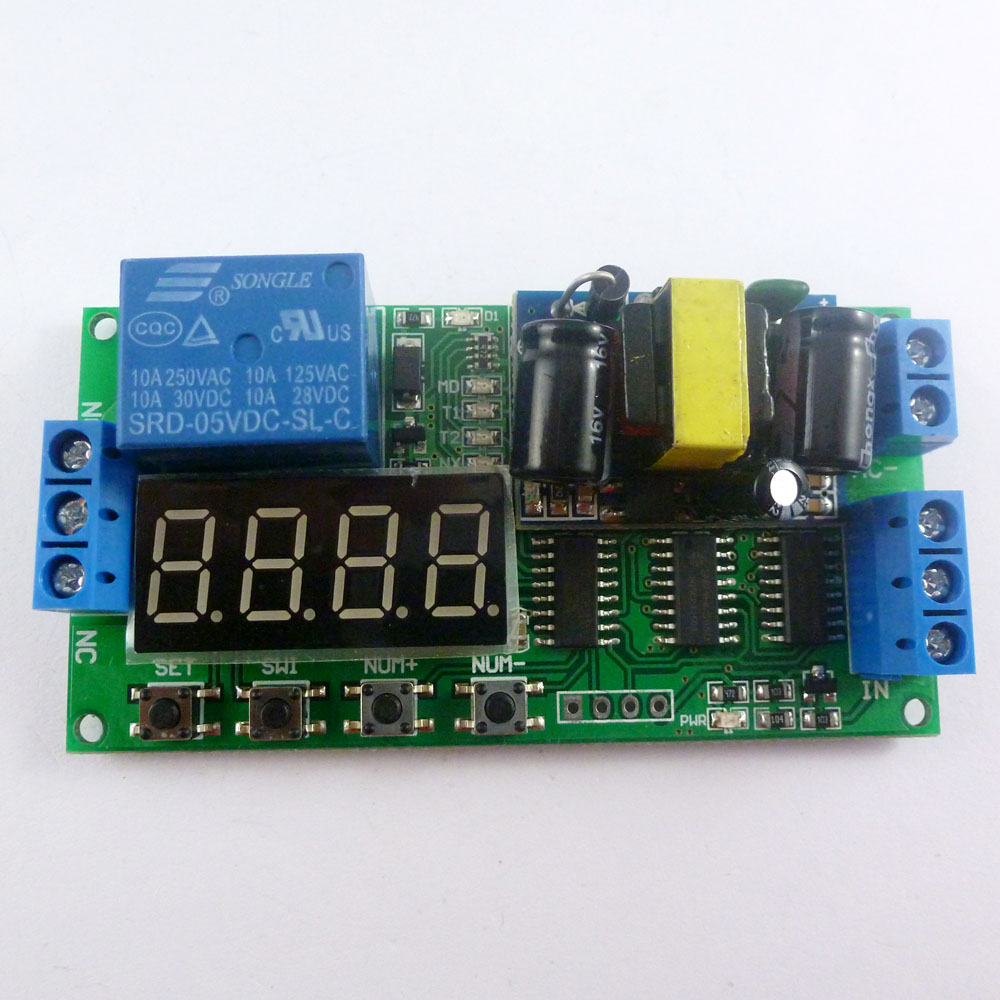

Product Name:IO23B01 AC 110V 220V Multifunction Self-lock Relay PLC Cycle Timer Module Delay Time Switch



Package inlcuded:
1 PCS AC 85-265V 1 channel multi-function delay relay module


Description:


IO23B01 multifunction relay control module, designed specifically for a variety of users with different needs, the use of micro-controller as the primary
Control unit, preset 18 kinds of functions, and can be based on user needs, customize and add other specific functions.
Genuine high quality power relay modules, high power high-voltage transistor, red, blue signal lights, military grade double-sided
PCB board, cloth board to consider a comprehensive, stable performance, can be widely used in a variety of power control type applications.

Features:

1 new upgrade to version 3.0, the module functions by eight kinds before, increased to 18 kinds, to meet the needs of more applications;
2 Power is AC 85-265V(110V 220V)
3 uses top-quality high-voltage power supply modules, discrete power supply before replacing the system more stable and reliable;
4 increased 0.1 seconds timing, timing accuracy from the previous 0.1 seconds, upgrade to 0.01 seconds;
5 increase in automatic power saving feature, users can independently set.
6.Size:77.5x40x20mm
7 Weight : 39 grams

Module Functions:
Tips: Function 1-8 on power-up self-start function 9-18 require high pulse signal (high duration is shorter than 20ms, hereinafter the same) trigger the start.

Function 1:
Timing Pick: After power, time delay relay pull T1, T1 between 0.1 seconds -270 hours adjustable, IN interface to a high level pulse signal, repeat the above functions;

Function 2:
Timing off: when the power relay, time delay relay disconnected T1, T1 between 0.1 seconds -270 hours adjustable, IN interface to a high level pulse signal, repeat the above functions;

Function 3:

Timing pull off again: After power relay to not pull, the delay time T1 reaches the relay is energized; pull the relay off after T2 arrival time, delay time T1 and T2 in 0.1 seconds -270 hours between adjustable, CH1 interface to a
high pulse signal, repeat the above functions;

Function 4:
Timing and then pull off: After power, immediately pull the relay, the relay off delay time T1 after arrival; T2 arrive after disconnecting time relay, -270 hour in 0.1 seconds delay time between T1 and T2 adjustable to CH1 interface a high pulse signal, repeat the above functions;

Function 5:
Infinite loop timing mode 1: After power relay to not pull, after the delay time T1 reaches the relay is energized; pull the relay off after time T2 arrives, and then repeat the above condition, the delay time T1 and T2 at 0.1 adjustable between second -270 hours, giving a high level pulse signal CH1 interface, you can restart the above functions;

Function 6:
Infinite loop timing mode 2: After power, immediately pull the relay delay time T1 reaches the relay off; arrive after disconnecting time T2 relay, and then repeat the above condition, the delay time T1 and T2 in 0.1 seconds adjustable between -270 hours, giving a high level pulse signal CH1 interface, you can restart the above functions;

Function 7:
Finite loop timing mode 1: 5 on the basis of functionality, increasing the number of cycles function, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable cycles NX adjustable between 1-9999 times to CH1 interface a high pulse signal, the above functions can be re-started;

Function 8:
Finite loop timing mode 2: 6, on the basis of the function, increasing the number of cycles function, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable cycles NX adjustable between 1-9999 times to CH1 interface a high pulse signal, the above functions can be re-started;

Function 9:
Latching relay modes: CH1 interface to relay a high level pulse signal, relay, give a high pulse signal relay disconnected.

Function 10:
Trigger relay modes: CH1 interface to a high signal relay, relay, low disappear, relay disconnected.

Function 11:
Pull the trigger timing: After power relay does not act, a high -level interface to CH1 pulse signal, the delay time relay pull T1, T1 between 0.1 seconds -270 hours adjustable, repeating a high level interface to CH1 pulse signal, repeat the above function;

Function 12:
Trigger timing off: After power relay does not act, a high -level interface to CH1 pulse signal relay, the relay off delay time T1, T1 between 0.1 seconds -270 hours adjustable, repeat to CH1 interface a high pulse signal, repeat the above functions;

Function 13:
Pull the trigger timing then disconnect: After power relay does not act, CH1 interface to a high level pulse signal, the delay time T1 reaches the relay is energized; pull the relay off after T2 arrival time, delay time T1 and T2 between 0.1 seconds -270 hours adjustable, repeat CH1 interface to a high level pulse signal, repeat the above functions;

Function 14:
Disconnect and then pull the trigger timing: After power relay does not act, a high -level interface to CH1 pulse signal, immediately pull the relay, the relay off delay time T1 after arrival; T2 arrive after disconnecting time relay, delay time between T1 and T2 in 0.1 seconds -270 hours adjustable, repeat CH1 interface to a high level pulse signal, repeat the above functions;

Function 15:
Infinite loop timing mode 1: After power relay does not operate to a high level pulse signal CH1 interface, the delay time T1 reaches the relay is energized; pull off the relay arrival time T2, and then repeat the above condition, the extension when the time between T1 and T2 in 0.1 seconds -270 hours adjustable, repeat CH1 interface to a high level pulse signal, the above functions can be re-started;

Function 16:
Infinite loop timing mode 2: After power relay does not act, a high -level interface to CH1 pulse signal, immediately pull the relay, the relay off delay time T1 after arrival; break time T2 after reaching relay, then repeat the above condition, the delay time between T1 and T2 in 0.1 seconds -270 hours adjustable, repeat CH1 interface to a high level pulse signal, the above functions can be re-started;

Function 17:
Finite loop timing mode 1: 15 on the basis of functionality, increasing the number of cycles function, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable cycles NX adjustable between 1-9999 times, repeating to CH1 interface a high pulse signal, the above functions can be re-started;

Function 18:
Finite loop timing mode 2: 16 on the basis of functionality, increasing the number of cycles function, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable cycles NX adjustable between 1-9999 times, repeating to CH1 interface a high pulse signal, the above functions can be re-started;


Connections:

Module Voltage Signal Input:There have three interfaces, all interfaces have terminal,user easy to use.

1.AC+:AC power live;
2.AC-:AC power null;
3.GND : DC 5V Negative
4.5V : DC 5V Positive
5.IN:Input signal interface. (2.5-24V high voltage to be valid; 0-0.6V low voltage to be invalid;0.7V-2.4V voltage is unpredictable,you should avoid this voltage range)

Module Output: There have three interfaces, all interfaces have terminal.
1.NO : Normally open interface,the relay becomes vacant before, after pull-in short with the COM;
2.COM : Common interface;
3.NC : Normally closed interface, short with COM before, become vacant after pull-in.

Module Size

1. Dimensions: 77.5mm * 40mm * 20mm (L * W * H);
2. Screw Size: 4*2.5mm.
3. Screw holes center distance: 73.5mm * 36mm
4. Weight : 39g
