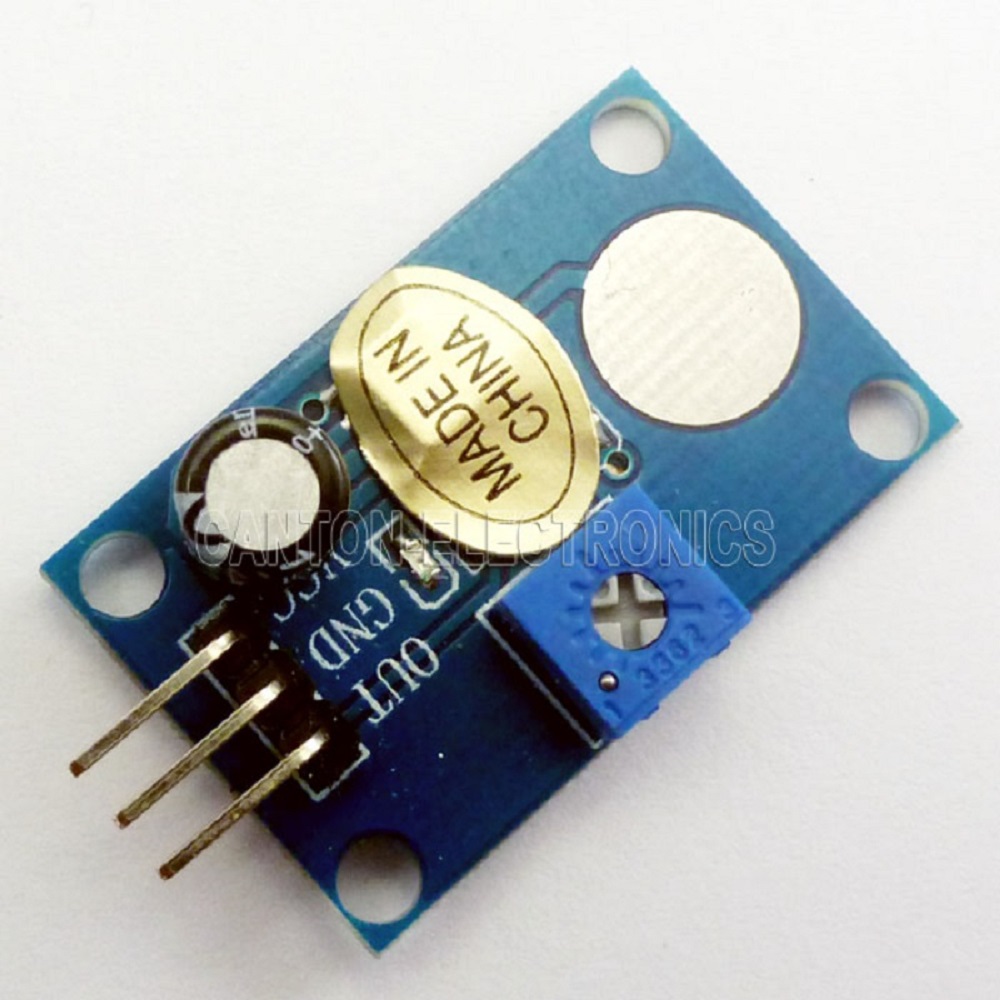

TB408 DC 5V 12V Touch Switch Module 0-130s Delay Timer Button Board for Arduiuo Relay

TB408 DC 5V 12V Touch Switch Module 0-130s Delay Timer Button Board for Arduiuo Relay

  • Model: TB408
  • Availability: In stock
  • Weight: 0.003Kg
US$1.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns

Typical applications:

For Arduiuo UNO MEGA2560 Pro mini DUE
For ARM MCU FPGA/CPLD Development Board
For raspberry pi
5V/12V Relay Module



Product Name:DC 5V 12V Touch Module 0-130s Delay Timer Button Board for Arduiuo UNO Relay raspberry pi



Packing list:


1 pcs  DC 5V 12V Touch Module 0-130s Delay Timer Button Board


Description:

Click the "touch key" with your finger,Then "OUT pin" output high after the delay 0-130 seconds to restore low

Time delay 0-130 seconds adjustable
2.54mm pin
PCB Size : 32MM X 20MM X 13MM


VCC : 5V-12V Power supply positive
GND : Power supply negative
OUT : Trigger Output(4V-11V,VCC-1V)





Connected with the 12V relay module:
