Product Name: 8CH DC 5V 12V Multi-function IR infrared Control Delay Relay Module Flip-Flop Latch Bistable Self-locking Interlock Latch

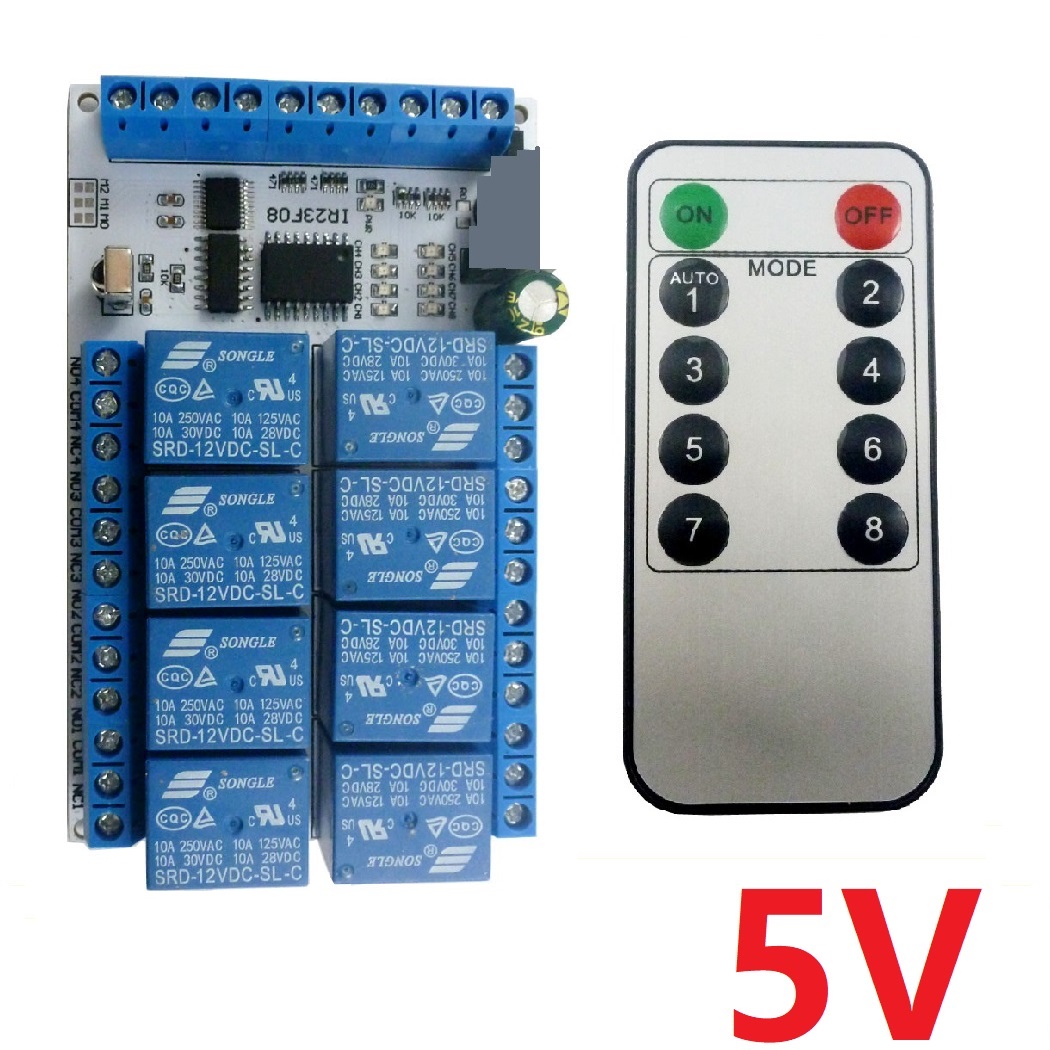

Package inlcuded:


1 PCS 8 Channel
IR remote control

1 PCS
8 Channel IR Relay Control




Description:








Product Specifications:

1 Operating Voltage : DC 12V(5V optional)

2 Operating Current(DC 12V) : Standby current 8MA, 1 relay open 37MA, 2 relays open 66MA, 3 relays open 94MA, 4 relays open 122MA, 5 relays open 150MA, 6 relays open 178MA, 7 relays open 206MA, 8 relays open 232MA

3 ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' Four functional modes

4 Infrared receiver: VS1838(Or compatible IC)

5 Infrared remote control: NEC coding

6 Working distance: 8-15 meters (receiver sensitivity ≥0.5mW / m2)

7 Input control pins 8 ,5V TTL level ,NPN trigger, 0.2-2 second low pulse

8 Size: 99 x 62 x 20 mm

9 Weight : 116g

10 Relay maximum load capacity: DC 1-110V/5A; AC 85-265V/6A




Product Features:

8 channel Multi-function infrared controller, each channel independently triggered independent delay, do not interfere with each other.

4 kinds of Functional mode: Non-locking (Momentary );Delay(2/10/60/600/3600seconds); Self-locking (Toggle); Inter-locking (Latch), The function mode and delay time are selected by the Solder pad.

Low pulse trigger(Connect to the power supply GND via the trigger button or low level control via the MCU IO port)









Glossary:

NO : Relay normally open contact

COM : Relay common contact

NC : Relay normally closed contact

Relay open: COM connect NO.

Relay close: COM disconnect NO.

Momentary : Press the remote control button (or trigger input port), Relay open, return to Close after 0.5 second;

Self-locking : Press the remote control button (or trigger input port), Relay open, Press again, port Relay close, and so on;

Latched : Enter the Channel 1 Latched command, port 1 Relay open, port 2-8 Relay close. Enter the Channel 2 Latched command , port 2 Relay open, port 1/3-8 Relay close

Delay : Enter the Delay command, Relay open, delay of 2/10/60/600/3600 seconds)after, Relay close;




Function mode selection by shorting three pads M2 1 0




Infrared remote control Technical Parameters



Transmission / coding: NEC coding

IRED: Infrared

Wavelength: 950nm

Power supply: DC 3V

Working voltage: 2.2-3.4V

Working current: ≥10mA

Static current: ≥1uA

Transmit power: 90 mW / sr typ.

Working distance: 8-15 meters (receiver sensitivity ≥0.5mW / m2)

Frequency: 38 kHz

Battery: CR2025(Not included)

Operating temperature: +55 ~ -45 or specific specifications

Storage temperature: -25 ~ +55 or specific specifications

Size : 85 x 40 x 7mm

Weight : 11g
