Product Name:
DC 5-12V 433M 868M RS485 Lora 22DBM RF Wireless Transceiver Master-Slave Transmission for RS485 PLC PTZ Wireless Meter Reading
Package inlcuded:

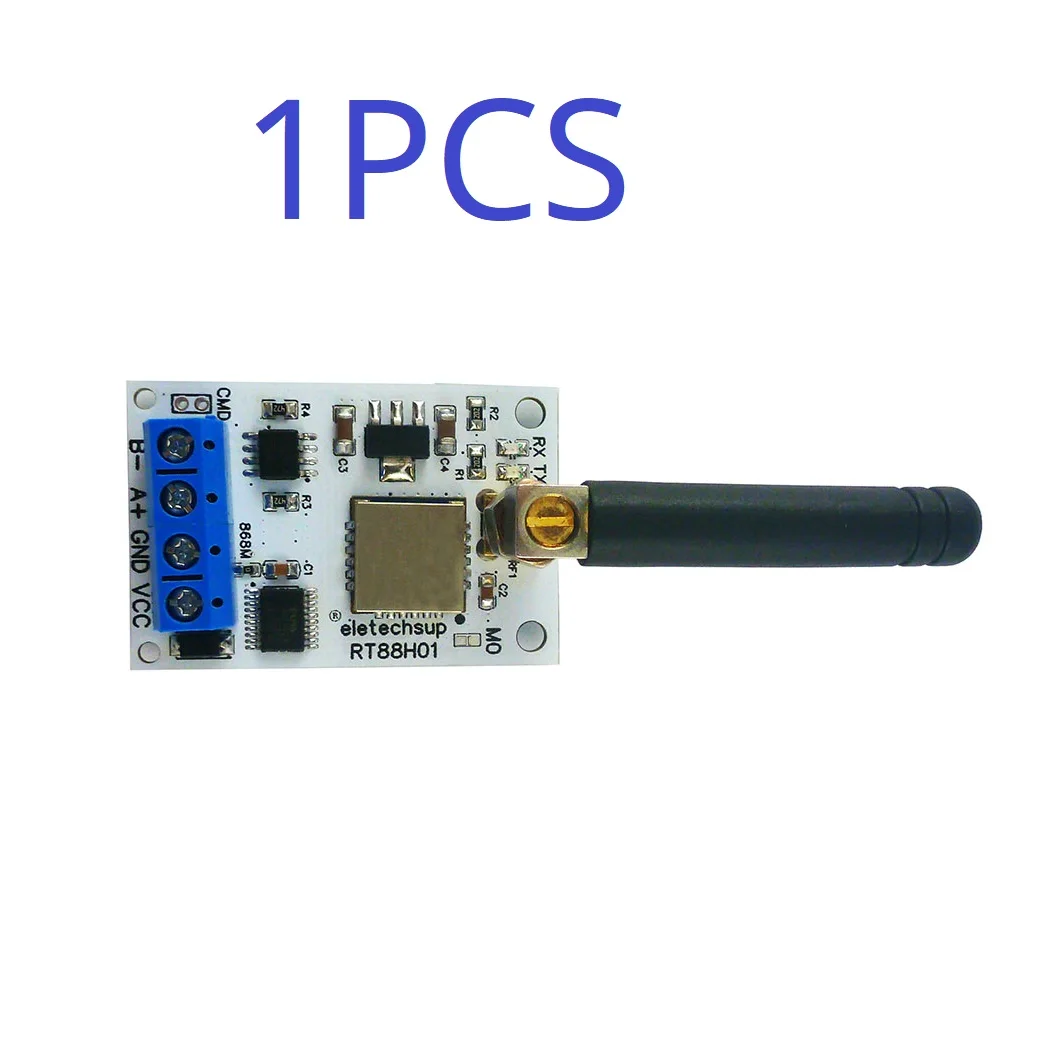

1 PCS 433M/868M(915M) RT88H01 RS485 LORA Wireless Transmitter and Receiver Module
Description:
Working voltage: 5V-12V;
Interface : RS485
Frequency: 433M Version(410~512MHz);868M/915M Version(854.5~931MHz)
Transmit power: -9~+22dBm;
Receiver sensitivity: -129dBm;
Operating temperature: -25℃~+75℃;
Transparent transmission mode baud rate :1200 2400,4800,9600(Default),19200,38400,57600,115200;
Open ground Transmission distance : 1000M
Size(without antenna): 45x30x14mm
Weight(without antenna):12g
Module features
Long-distance wireless transmission (up to 1000 meters in open space, Bit rate 1.76~62.5Kb/s);
Working frequency range: 410~512MHz for 433 version, 854.5~931MHz for 868 version, up to 256 communication channels;
Maximum 156mW (22dBm) transmit power (10 levels of power can be set);
Built-in MCU, use serial port to communicate with external devices;
Send a maximum of 250 bytes at a time, and a maximum of 240 bytes in encrypted mode;
The module can support one-to-one, one-to-many transparent transmission communication through ID setting
The receiving module can be set to Repeater mode to extend the communication distance (solder the M0 solder spot on the module);
The module can set data AES encrypted transmission to enhance data confidentiality.
For more information, please contact me
Recommend to buy more than 2pcs!!!
How to use (>=2pcs):
1 2PCS,Module 1 and Module 2 send data to each other.
2 3PCS,Module 1 sends data, module 2 acts as a repeater (multiple repeaters can be used), and module 3 receives data; delay sending and receiving distance.
3 >=3PCS,One as master device, the other as will be as slave device.
the way they work as well as wired RS485 bus. Master device transmit data, Slave devices all receive data.Any slave device transmit data, master device and the other slave devices can receive .When ever only allowed one device (master or slave) to transmit data.
(Tip: The master and slave devices are self-adapting and no configuration is required.)
Application
PTZ Camera
Modbus modbus Temperature and humidity sensor
R4D3C32 N4D8B08 N4D8C12
RS485 Relay
Remote control, remote measurement system;
Wireless meter ;
Smart Home,Home Automation ,Wiser Home;
Access control ;
Identification system ;
Data collection;
IT household appliance ;
Intelligence household appliance;
Baby monitoring system;
Thermometer
