Package inlcuded:

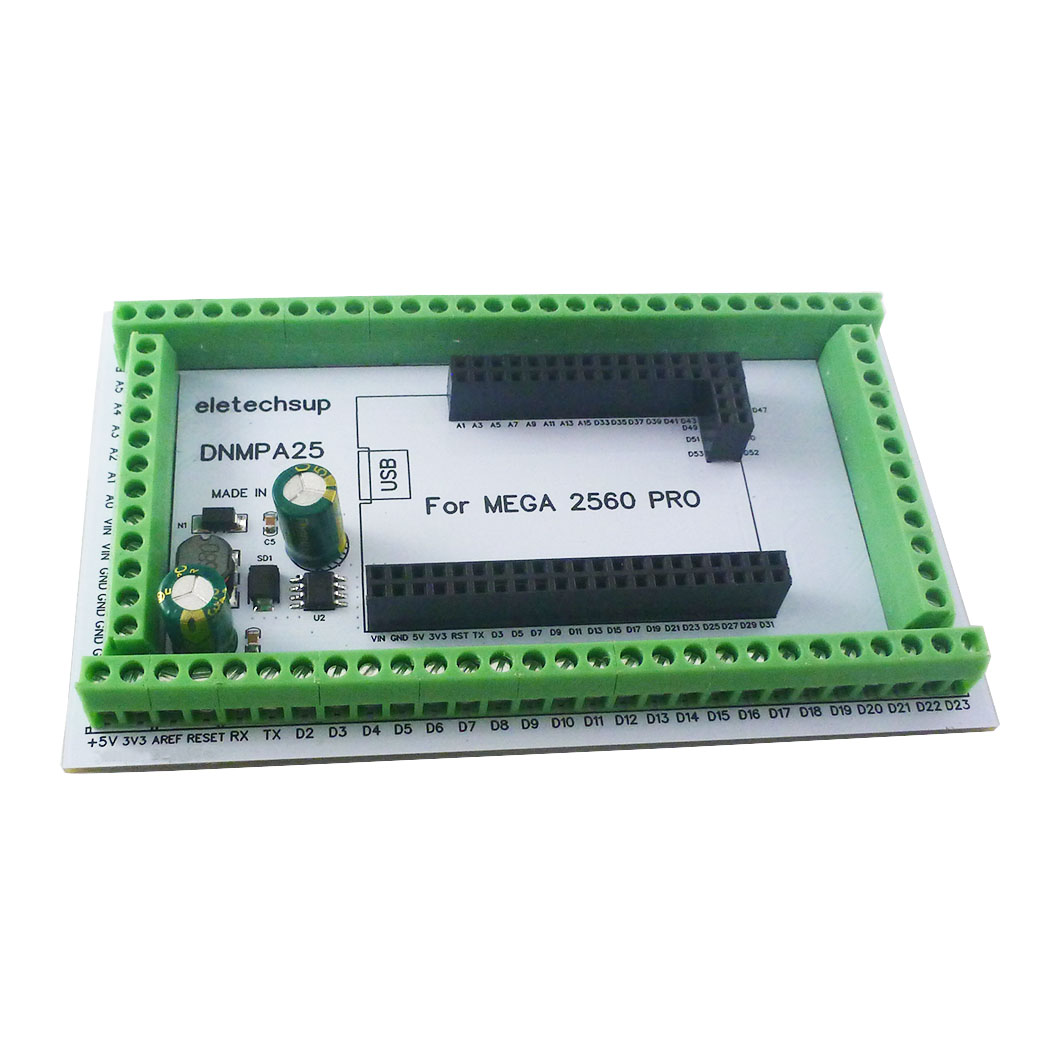

1PCS MEGA2560 PRO DIN Rail Expansion Board(only board or with shell)
(does not include the MEGA2560 pro module)
Description:
Terminal spacing: 3.96mm.
Terminal Blocks: Wire Range 26-16AWG, Strip Length 3.96mm, Metric M2/M2.5 Slotted Screws.
All pins are led to 3.96MM terminal blocks
Onboard DC 7-30V TO 5V/2A DC DC Converter
Optional DIN Rail Box
Size: 117 * 72 * 14mm(Only Board);121 * 82*38mm(with Din Rail Box)
Weight: 74g(Only Board);162g(with Din Rail Box)
Use:
DIN Rail Mount Screw Terminal Adapter Module for Arduino MEGA2560 PRO Board.
With this adapter modules, you can easily extend your Arduiuo projects to industrial control applications.
Notice:
Without MEGA2560 PRO board, you need to bring your own
DIN rail Box parameters:
Product model: UM72
Color: Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 117 mm PCB boards
Net weight: 88g
Installation: DIN35 and C45 rail
