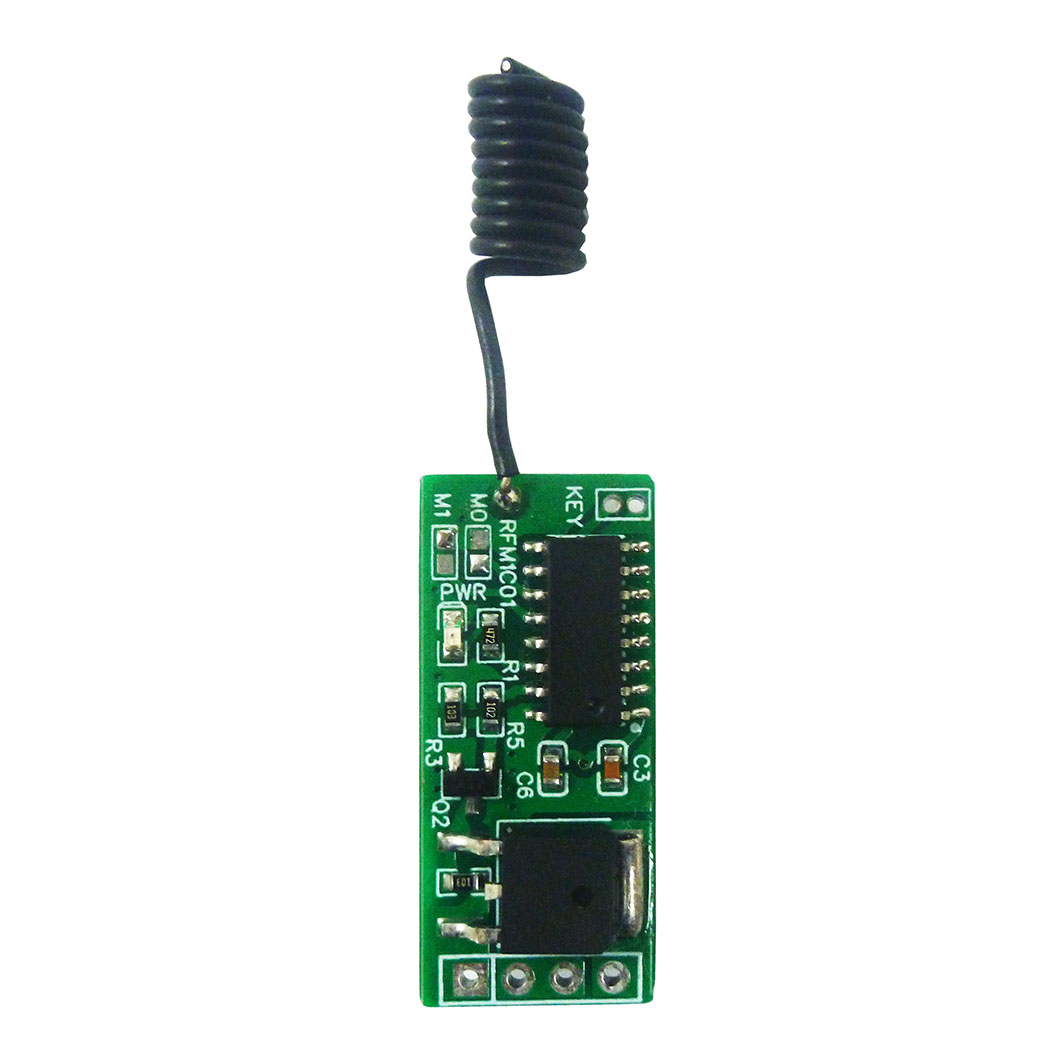

Product Name: 3.7V-14.8V 2A Mini Wireless Remote Control Switch Board Standby Current Low Power Lithium Battery Power Control Module
Package inlcuded(It is recommended to choose to buy a kit):
Description:
Working voltage: DC 3.5~18V;
Working current: The standby current is about 5mA in Normal Mode,
The average standby current in Low Power Mode is 80uA
Working Mode: Normal Mode, Low Power Mode;
Output Mode:Non-locking (Momentary ), self-locking (Toggle), delay 10 seconds, delay 30 seconds;
Working principle: Superheterodyne;
Receiving method: OOK/ASK;
Working frequency: 433.92MHz;
Receive sensitivity: -117dBm;
Decoding type: learning code, can be adapted to EV1527/PT2262 and compatible remote control, can store up to 32 remote control keys;
Load current : <=2A,(<20W);
Size: 29x13x8mm;
Weight: About 3 grams;
Working voltage: DC 3.5~18V;
Working current: The standby current is about 5mA in Normal Mode,
The average standby current in Low Power Mode is 80uA
Working Mode: Normal Mode, Low Power Mode;
Output Mode:Non-locking (Momentary ), self-locking (Toggle), delay 10 seconds, delay 30 seconds;
Working principle: Superheterodyne;
Receiving method: OOK/ASK;
Working frequency: 433.92MHz;
Receive sensitivity: -117dBm;
Decoding type: learning code, can be adapted to EV1527/PT2262 and compatible remote control, can store up to 32 remote control keys;
Load current : <=2A,(<20W);
Size: 29x13x8mm;
Weight: About 3 grams;
For more information, please contact me
Working Mode:
RFM1C01 has two working modes: Normal Mode and Low-Power Mode.
How to switch working modes:
In Normal Mode, press and hold the button to power on to enter Low-Power Mode;
In Low-Power Mode, press and hold the button to power on to Normal Mode.
Normal mode: The average standby current is 5mA, the LED light (PWR) will be always on, and when a valid remote control (EV1527/PT2262) key value is received, the LED will flash rapidly.
Low-Power Mode: The average standby current is 80uA, and the LED light (PWR) will be off. Usually, when RFM1C01 is in Sleep State,you need to keep pressing the button for 2 seconds to activate RFM1C01. After activation, RFM1C01 can be controlled normally. No pressing again for 30 seconds Press the button, RFM1C01 will resume the Sleep State.
Note: Low-Power Mode, you need to keep pressing any button for 2 seconds (or pressing the button multiple times) to activate the RFM1C01.
Description of Average Standby Current in Low Power Mode:
Working current: Normal Mode working current: 5mA
Sleep current: Current in sleep state in Low Power Mode: 4uA
Average standby current in Low Power Mode: RFM1C01 2000MS sleep in Low Power Mode, 32MS wake-up scan. That is, the current of RFM1C01 entering 2000:32 sleep and wake-up scan state: 80uA (5MA/62.5).
Current test description: The average standby current is calculated according to the sleep and wake-up ratio and the working current. It is difficult to measure this average standby current with a multimeter. At the same time, the meter line of the multimeter will interfere with the receiving chip being continuously awakened to detect and process data, resulting in fluctuations in the current.
Pin descriptionV+: Power supply+
- : Power supply-
- : MOS output-
P+ : MOS output+
KEY : Button pin, can be used by external button.
RFM1C01 has two working modes: Normal Mode and Low-Power Mode.
How to switch working modes:
In Normal Mode, press and hold the button to power on to enter Low-Power Mode;
In Low-Power Mode, press and hold the button to power on to Normal Mode.
Normal mode: The average standby current is 5mA, the LED light (PWR) will be always on, and when a valid remote control (EV1527/PT2262) key value is received, the LED will flash rapidly.
Low-Power Mode: The average standby current is 80uA, and the LED light (PWR) will be off. Usually, when RFM1C01 is in Sleep State,you need to keep pressing the button for 2 seconds to activate RFM1C01. After activation, RFM1C01 can be controlled normally. No pressing again for 30 seconds Press the button, RFM1C01 will resume the Sleep State.
Note: Low-Power Mode, you need to keep pressing any button for 2 seconds (or pressing the button multiple times) to activate the RFM1C01.
Description of Average Standby Current in Low Power Mode:
Working current: Normal Mode working current: 5mA
Sleep current: Current in sleep state in Low Power Mode: 4uA
Average standby current in Low Power Mode: RFM1C01 2000MS sleep in Low Power Mode, 32MS wake-up scan. That is, the current of RFM1C01 entering 2000:32 sleep and wake-up scan state: 80uA (5MA/62.5).
Current test description: The average standby current is calculated according to the sleep and wake-up ratio and the working current. It is difficult to measure this average standby current with a multimeter. At the same time, the meter line of the multimeter will interfere with the receiving chip being continuously awakened to detect and process data, resulting in fluctuations in the current.
Pin descriptionV+: Power supply+
- : Power supply-
- : MOS output-
P+ : MOS output+
KEY : Button pin, can be used by external button.
433M 2 Button EV1527 Remote Control:
Technical Data :
Power supply : 12V 27A battery replacable .(This remote doesnot have a battery , Please buy in your local market )
Operating current: ≤ 12mA ;
Oscillation mode: SAW resonator ;
Oscillation resistor : 330K
Modulation mode:ASK OOK ;
Operating frequency:433.92MHz ;
Frequency deviation:±0.2MHz;
Encoding format: Million Group Code ( EV1527 ) ;
Transmit power:10 mW.
Data Rate : 50~60KHZ;
Product Name: 3.7V-14.8V 2A Mini Wireless Remote Control Switch Board Standby Current Low Power Lithium Battery Power Control Module
Package inlcuded(It is recommended to choose to buy a kit):
Description:
Working voltage: DC 3.5~18V;
Working current: The standby current is about 5mA in Normal Mode,
The average standby current in Low Power Mode is 80uA
Working Mode: Normal Mode, Low Power Mode;
Output Mode:Non-locking (Momentary ), self-locking (Toggle), delay 10 seconds, delay 30 seconds;
Working principle: Superheterodyne;
Receiving method: OOK/ASK;
Working frequency: 433.92MHz;
Receive sensitivity: -117dBm;
Decoding type: learning code, can be adapted to EV1527/PT2262 and compatible remote control, can store up to 32 remote control keys;
Load current : <=2A,(<20W);
Size: 29x13x8mm;
Weight: About 3 grams;
Working voltage: DC 3.5~18V;
Working current: The standby current is about 5mA in Normal Mode,
The average standby current in Low Power Mode is 80uA
Working Mode: Normal Mode, Low Power Mode;
Output Mode:Non-locking (Momentary ), self-locking (Toggle), delay 10 seconds, delay 30 seconds;
Working principle: Superheterodyne;
Receiving method: OOK/ASK;
Working frequency: 433.92MHz;
Receive sensitivity: -117dBm;
Decoding type: learning code, can be adapted to EV1527/PT2262 and compatible remote control, can store up to 32 remote control keys;
Load current : <=2A,(<20W);
Size: 29x13x8mm;
Weight: About 3 grams;
For more information, please contact me
Working Mode:
RFM1C01 has two working modes: Normal Mode and Low-Power Mode.
How to switch working modes:
In Normal Mode, press and hold the button to power on to enter Low-Power Mode;
In Low-Power Mode, press and hold the button to power on to Normal Mode.
Normal mode: The average standby current is 5mA, the LED light (PWR) will be always on, and when a valid remote control (EV1527/PT2262) key value is received, the LED will flash rapidly.
Low-Power Mode: The average standby current is 80uA, and the LED light (PWR) will be off. Usually, when RFM1C01 is in Sleep State,you need to keep pressing the button for 2 seconds to activate RFM1C01. After activation, RFM1C01 can be controlled normally. No pressing again for 30 seconds Press the button, RFM1C01 will resume the Sleep State.
Note: Low-Power Mode, you need to keep pressing any button for 2 seconds (or pressing the button multiple times) to activate the RFM1C01.
Description of Average Standby Current in Low Power Mode:
Working current: Normal Mode working current: 5mA
Sleep current: Current in sleep state in Low Power Mode: 4uA
Average standby current in Low Power Mode: RFM1C01 2000MS sleep in Low Power Mode, 32MS wake-up scan. That is, the current of RFM1C01 entering 2000:32 sleep and wake-up scan state: 80uA (5MA/62.5).
Current test description: The average standby current is calculated according to the sleep and wake-up ratio and the working current. It is difficult to measure this average standby current with a multimeter. At the same time, the meter line of the multimeter will interfere with the receiving chip being continuously awakened to detect and process data, resulting in fluctuations in the current.
Pin descriptionV+: Power supply+
- : Power supply-
- : MOS output-
P+ : MOS output+
KEY : Button pin, can be used by external button.
RFM1C01 has two working modes: Normal Mode and Low-Power Mode.
How to switch working modes:
In Normal Mode, press and hold the button to power on to enter Low-Power Mode;
In Low-Power Mode, press and hold the button to power on to Normal Mode.
Normal mode: The average standby current is 5mA, the LED light (PWR) will be always on, and when a valid remote control (EV1527/PT2262) key value is received, the LED will flash rapidly.
Low-Power Mode: The average standby current is 80uA, and the LED light (PWR) will be off. Usually, when RFM1C01 is in Sleep State,you need to keep pressing the button for 2 seconds to activate RFM1C01. After activation, RFM1C01 can be controlled normally. No pressing again for 30 seconds Press the button, RFM1C01 will resume the Sleep State.
Note: Low-Power Mode, you need to keep pressing any button for 2 seconds (or pressing the button multiple times) to activate the RFM1C01.
Description of Average Standby Current in Low Power Mode:
Working current: Normal Mode working current: 5mA
Sleep current: Current in sleep state in Low Power Mode: 4uA
Average standby current in Low Power Mode: RFM1C01 2000MS sleep in Low Power Mode, 32MS wake-up scan. That is, the current of RFM1C01 entering 2000:32 sleep and wake-up scan state: 80uA (5MA/62.5).
Current test description: The average standby current is calculated according to the sleep and wake-up ratio and the working current. It is difficult to measure this average standby current with a multimeter. At the same time, the meter line of the multimeter will interfere with the receiving chip being continuously awakened to detect and process data, resulting in fluctuations in the current.
Pin descriptionV+: Power supply+
- : Power supply-
- : MOS output-
P+ : MOS output+
KEY : Button pin, can be used by external button.
433M 2 Button EV1527 Remote Control:
Technical Data :
Power supply : 12V 27A battery replacable .(This remote doesnot have a battery , Please buy in your local market )
Operating current: ≤ 12mA ;
Oscillation mode: SAW resonator ;
Oscillation resistor : 330K
Modulation mode:ASK OOK ;
Operating frequency:433.92MHz ;
Frequency deviation:±0.2MHz;
Encoding format: Million Group Code ( EV1527 ) ;
Transmit power:10 mW.
Data Rate : 50~60KHZ;
