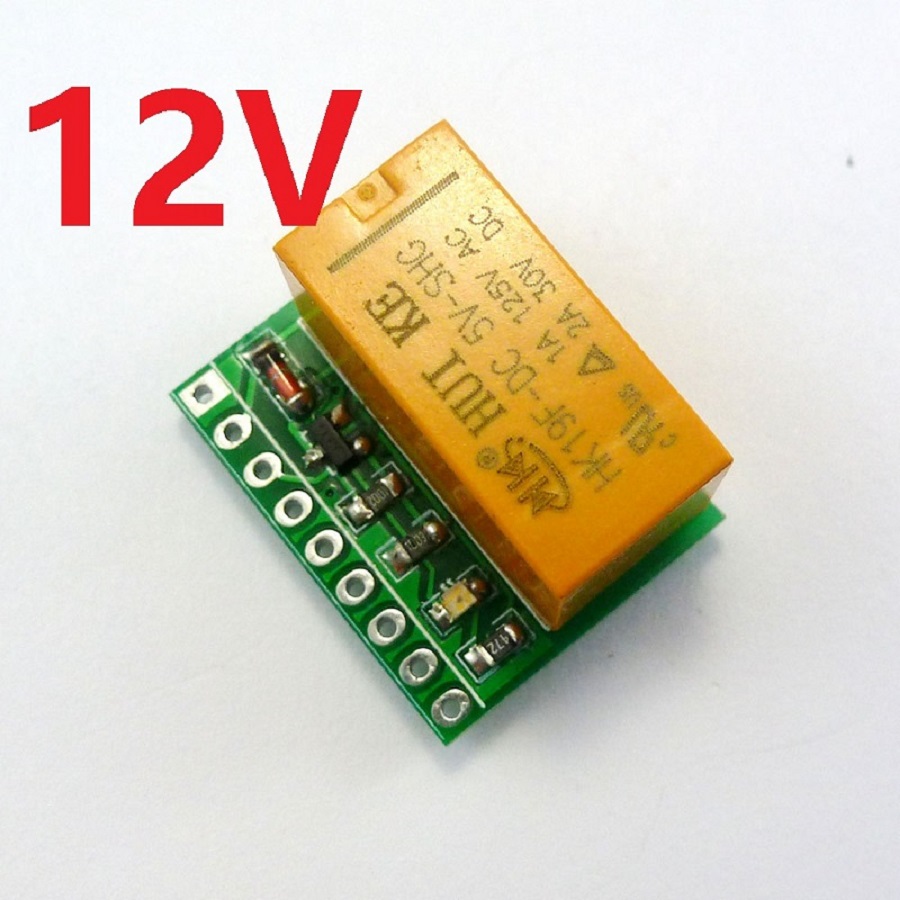

DR21D01 mini Ultralight 1 Channel DPDT Relay Module switch control board for 18650 battery sensor

DR21D01 mini Ultralight 1 Channel DPDT Relay Module switch control board for 18650 battery sensor

  • Model: DR21D01
  • Availability: In stock
  • Weight: 0.006Kg
US$1.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns

Typical applications:

Automotive electronics
Audio and video equipment
lithium battery 18650
Motor,Toy car, boat, model aircraft
Emergency lighting




Product Name :1pcs mini Ultralight 1 Channel DPDT Relay Module switch control board for 18650 battery sensor motor driver

Packing list:


1 PCS DR21D01 one Channel DC 12V DPDT Relay Module


Description:

DR21D01 12VDC one Channel DPDT Relay Board

Operating Voltage : DC 12V
Operating Current(Relay ON): 15MA
Standby Current(Relay OFF) : <1MA

Input control signal voltage:
                     0V - 0.6V Low stage (relay is OFF),
                     0.6V – 2.5V (unknown state).
                     2.5V - 24V High state (relay is ON).
Input control signal high state current:
                     2.5V: 0.15mA
                     5V: 0.4mA
                     12V: 1.2mA
                     20V: 2mA

Relay Load : 1A 125VAC;2A 30VDC


Size   : 22.86x18x14
Weight :6g



Schematic:
