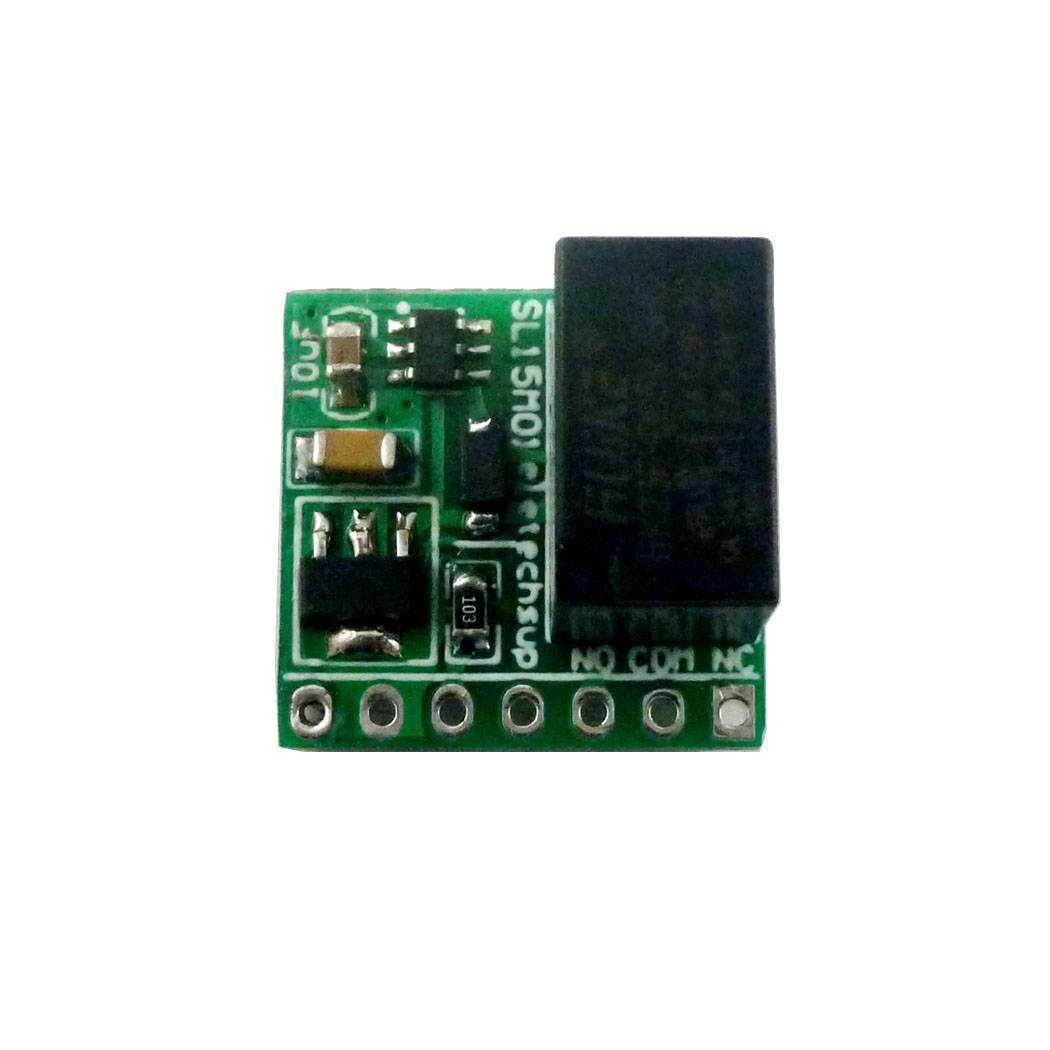

ProductName :DC 12V 2A mini 1ch Bistable Self-locking Relay Module Flip-Flop Latch Switch Board for LED Motor Solenoid valve
Packing list:
1 PCS 1 Channel mini DC7-24V Self-locking Relay Module
Description:
Ultra-small size self-locking relay module,Switching sound is low
Working voltage: DC 7-24V
Working current: 18-20MA
Standby current: 3UA
Load current : AC 120V/2A, DC 24V/2A
Trigger mode: Low pulse trigger
Size(no Pin) : 17.78mm x 17mm x 12.8mm(Ultra-small size)
Weight : 3.1g(no Pin),3.7g with Pin(Ultralight)
This is a bistable (self-locking) relay mini size module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)
Module interface:
1. V : positive power supply (VCC)
2. G : negative power supply (GND)
3. T : Low pulse trigger(Momentary switch or MCU IO control)
Relay outputs:
1. NO: normally open relay interface
2. COM: Common Interface Relays
3. NC: normally closed relay interface
USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on
Typical applications:
Automotive electronics
Industrial equipment
Motor
LED
Smart Home
Emergency lighting
MCU development board
Toy car
Model airplane
