1 Input Voltage: DC 5V(5V version); DC 6-24V(12V version)
2 Module working current:Standby 1-2ma;Relay is on: 60-71MA;
3 Load current: Maximum 5A(Motor <=3A)
4 Power indicator AND Working indicator
5 Control method : low pulse trigger
6 Size: 39.5mm X 33.3mm X 23.3mm
7 Weight: 23 g

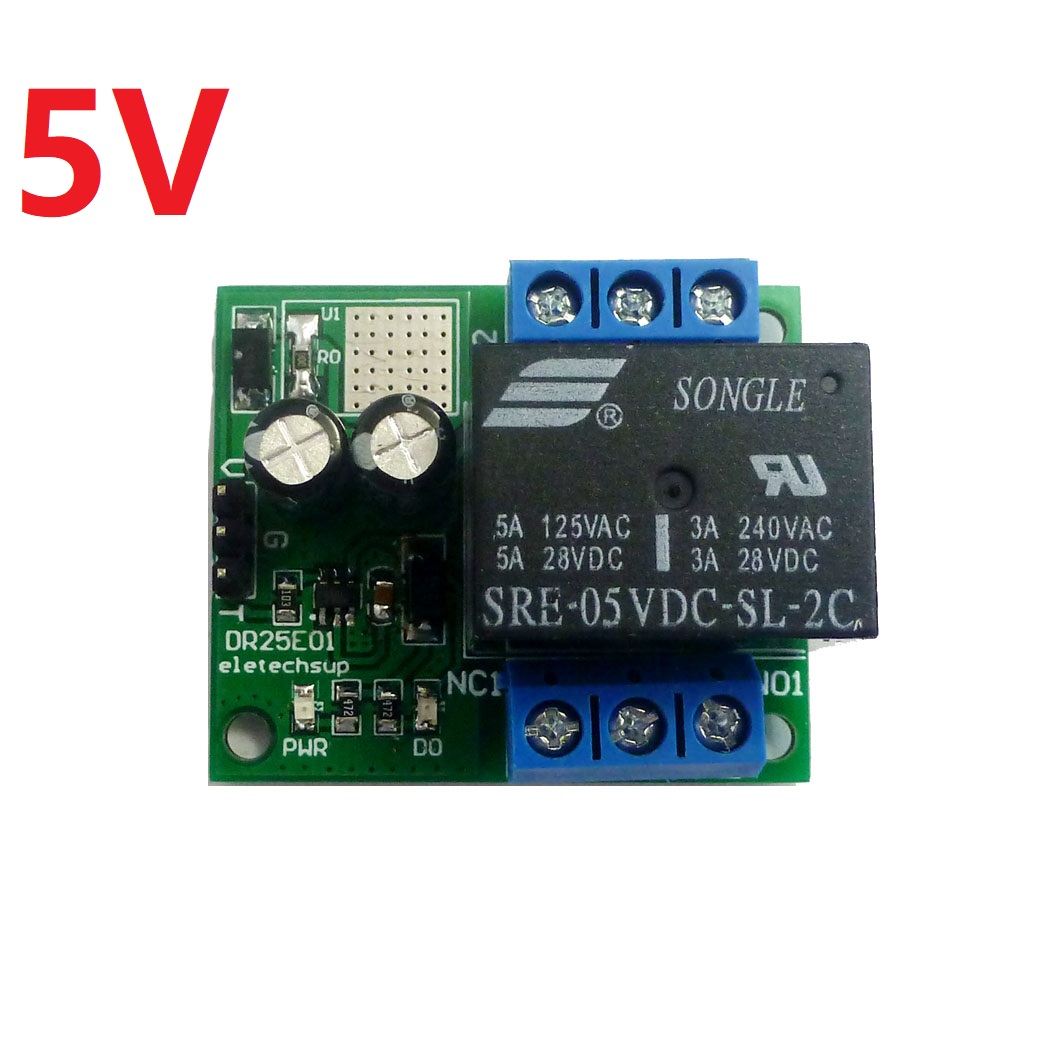

This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)
Module interface:
1. V positive power supply (VCC)
2. G negative power supply (GND)
3. T : Low pulse trigger(0.2-2 second low pulse trigger)
DPDT Relay outputs:
1. NO1: normally open relay interface
2. COM1: Common Interface Relays
3. NC1: normally closed relay interface
4. NO2: normally open relay interface
5. COM2: Common Interface Relays
6. NC2: normally closed relay interface
How to use:
By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on
Automotive electronics
Industrial equipment
AC DC Motor
LED lighting
Smart Home / Home Automation
Emergency lighting
MCU AVR For UNO MEGE2560 development board
Toy car
PLC
5 wiring methods:
1 Control two independent loads, the load is activated simultaneously
2 Dual channel simultaneously controls one load (load current multiplication)
3 Control the positive and negative wires (turn off or turn on the positive and negative wires)
4 Polarity switching output (load can be low power motor)
5 Audio 2 L/R to 1 L/R Switcher
