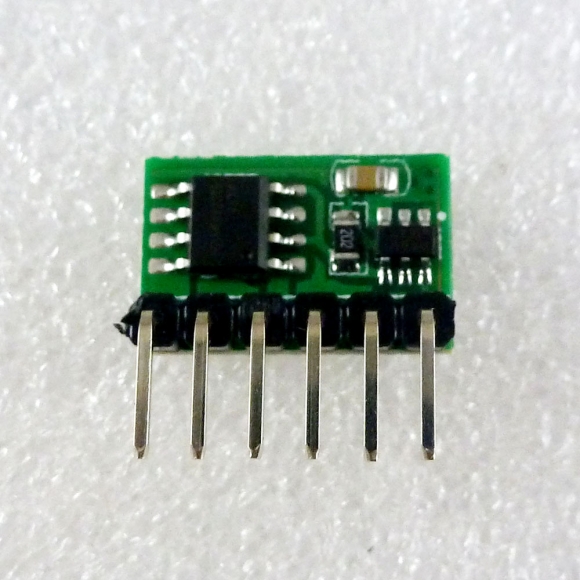

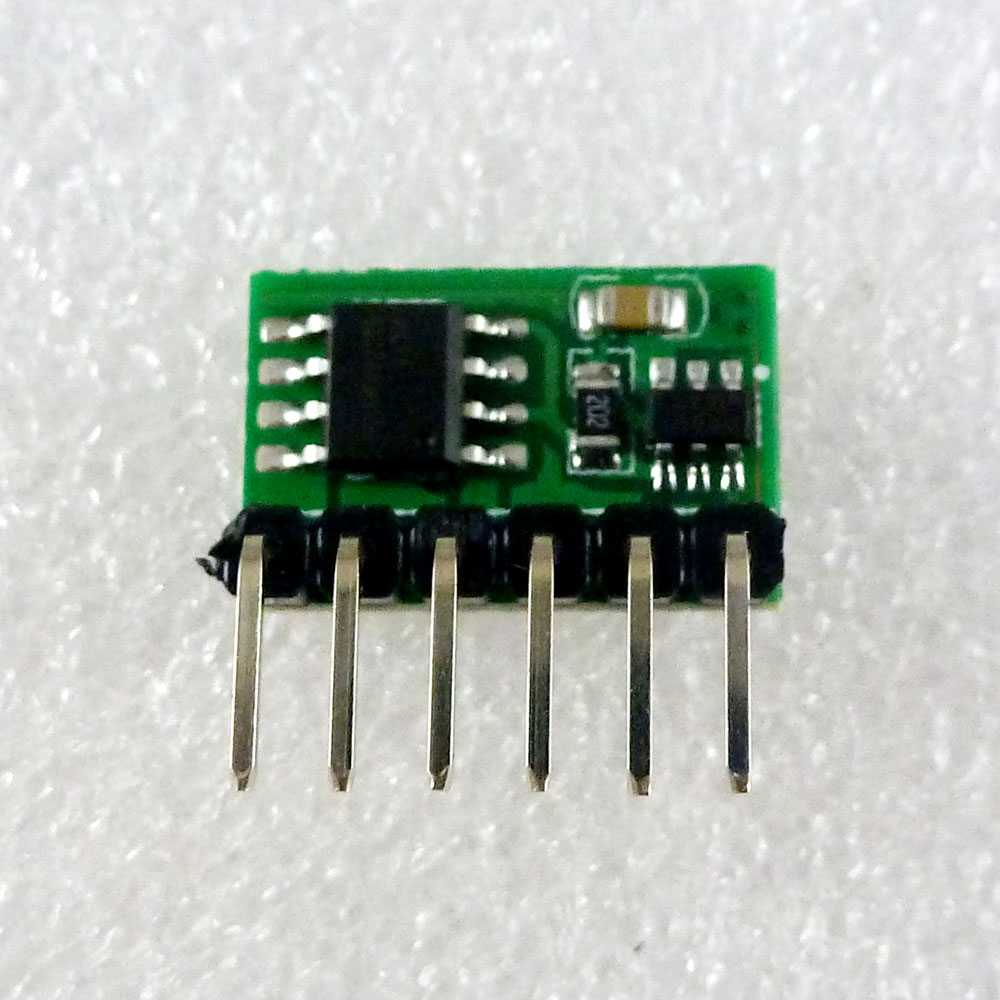

IO15A01 2.5V-6V 6A Flip-Flop Latch Bistable Self-locking Trigger Switch Module For Arduino Breadboard MCU Board LED Motor

IO15A01 2.5V-6V 6A Flip-Flop Latch Bistable Self-locking Trigger Switch Module For Arduino Breadboard MCU Board LED Motor

  • Model: IO15A01
  • Availability: In stock
  • Weight: 0.003Kg
US$2.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name: 5 Pcs 2.5V-6V 6A Flip-Flop Latch Bistable Self-locking Trigger Switch Module For Arduino Breadboard MCU Board LED Motor














Packing list:









5 PCS 2.5-6V 6A Flip-Flop Latch Switch Module













Description:





Falling edge - triggered. Initial state after power no voltage output, once triggered, output terminal output the power supply votage, after once again trigger the output terminal no voltaged output, and so on.


Low standby power consumption, high output power.




Electrical parameters:




Power supply voltage:DC 2.5V-6V





Standby current:less than 10uA





Driver IC is Dual P-channel MOSFET MEM2313,Maximum drive current is 6A





Allowing continuous output current:


5A(5V-6V)


4A(3.7V-5V)


2A(2.5V-3.7V)





Pin pitch 2.54mm.





Size:free pin size 15.5mm x 10mm x 2.5mm.




Weight : 0.9g







Note:inductive load, the load to the appropriate freewheeling diode in parallel to avoid damaged to the switching elements of the circuit.





Pin description:





Vo:output;


Vi:power supply;


G:power ground.


T:trigger signal input terminal;





Applications:





MCU Development Board


Motor


mobile power


LED Lighting


5V Relay


esp8266 WIFI MODULE


315M 433M Wireless remote controller
