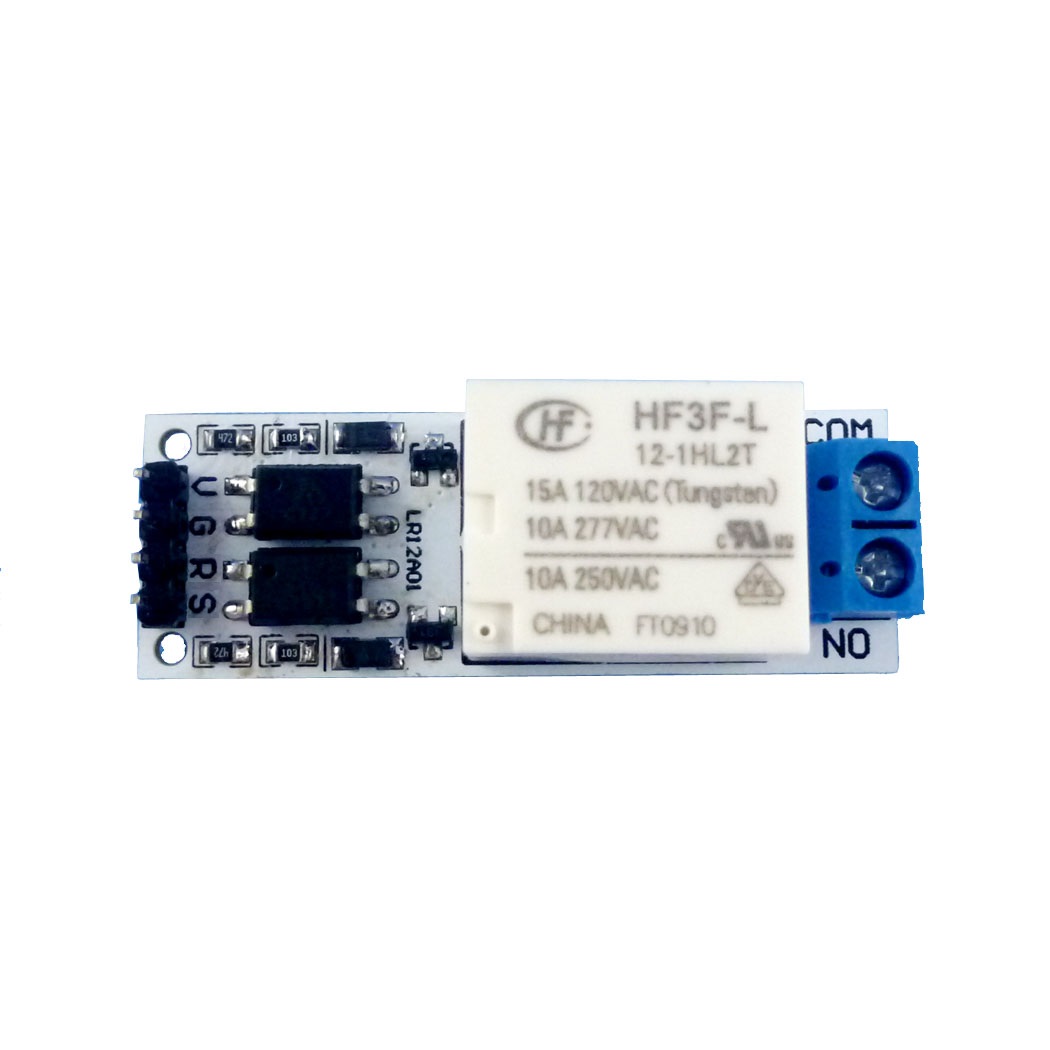

ProductName:DC 12V 10A Relay Module Zero Power Hold Switch Bistable Self-locking Flip-Flop Latch Board For LED Motor PTZ
Packing list:
Working current: 60MA(Provide current only when switching states)
Standby current: 20uA(ORzero power consumption standby)
Load current : AC 250V/10A, DC 30V/10A
Trigger mode: Low pulse trigger
Size: 48mm * 17mm * 17.5mm (L * W * H), Small size
Weight: 12.5g
Module interface:
1. V: Positive power supply (VCC)
2. G: Negative power supply (GND)
3. R : Reset(Relay OFF)
4. S : Set(Relay ON)
Relay outputs:
1. NO: normally open relay interface
2. COM: Common Interface Relays
This is a latching(keep) relay module,Trigger S port , the relay pull (and holds);Trigger R port, the relay releases (and holds)
The trigger duration is 0.5-2 seconds, it is recommended not to exceed 1 minute.
Question:
What's a latching relay?
Answer:
It is a relay that is set (ON) or reset (OFF) by the input of a pulse voltage. Even after the input voltage is interrupted, this relay maintains its set or reset condition until it receives the next inverting input. It is also called a keep relay.
Camera PTZ CCTV
UPS Uninterruptible power supply
If you follow the wiring method of Application 2, you can achieve zero power consumption standby
Note:
The power supply cannot be reversed, otherwise it will burn out the transistor (S8050 J3Y)
But don't worry, replace the S8050 (J3Y) transistor can be used normally.
