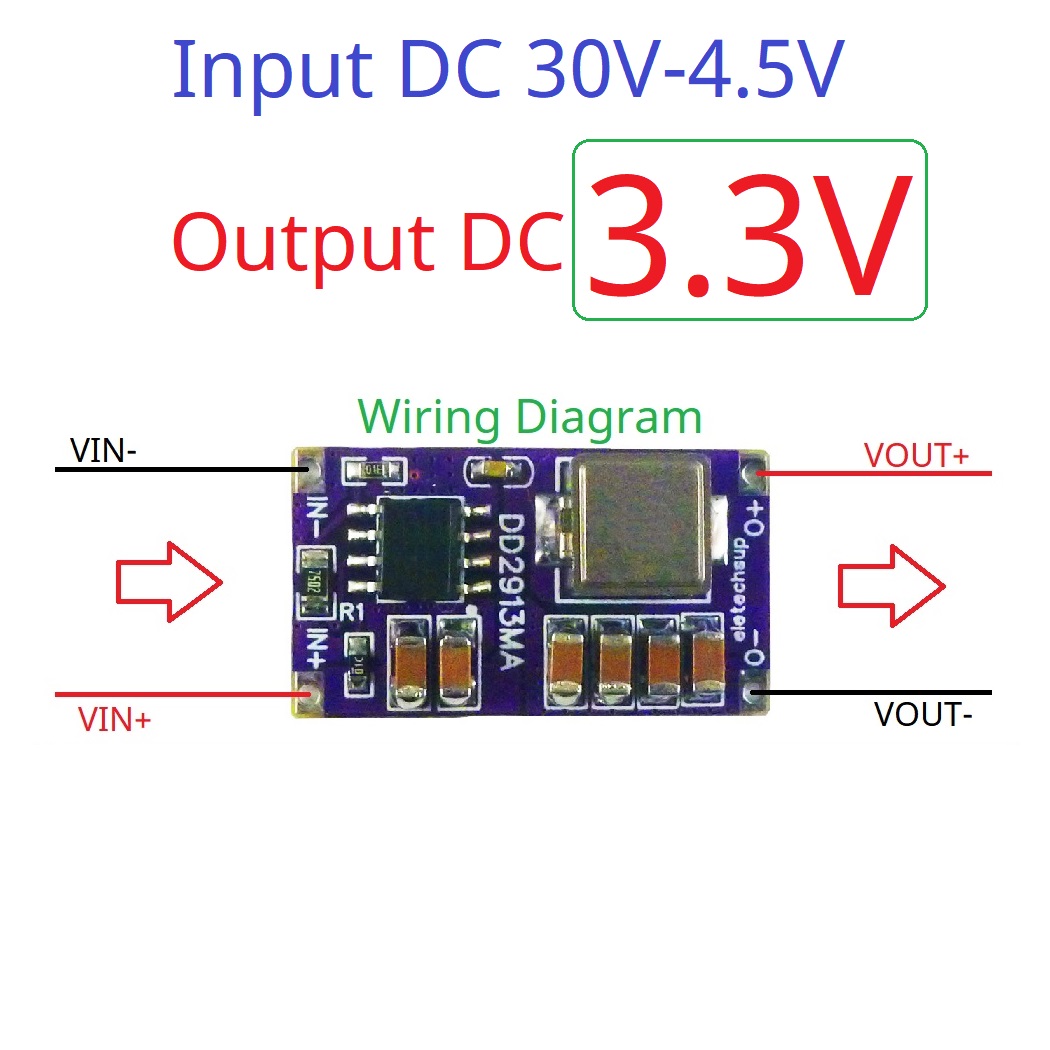

Mini Size High Efficiency PFM Synchronous Rectified Step Down Regulator Module
Input DC 30V-4.5V,Output DC 3V
Input DC 30V-4.5V,Output DC 3.3V
Input DC 30V-5V,Output DC 4.2V
Input DC 30V-6.5V,Output DC 5V
Input DC 30V-8V,Output DC 6V
Input DC 30V-9V,Output DC 7.5V
Input DC 30V-11V,Output DC 9V
Input DC 30V-14V,Output DC 12V
Maximum output current 2.6A,Short time maximum output current 3A(With good heat dissipation)
DC-DC Step-Down Converter module working frequency 500KHz. efficiency is 84-93% .
Quiescent current: 0.6mA
Operating Temperature :–40°C to +105°C
Size : 24 x 13.5 x 6mm
Weight : 2.5g
36W output power refers to the maximum output power of the 12V version
Multiple protections to ensure the safety of power supply at the rear stage:
Under-voltage protection (UVP)
Over Voltage Protection(OVP)
Over-Current Protection (OCP)
Over Temperature Protection(OTP)
Short Circuit Protection(SCP)
Internal Soft-Start
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Applications:
DC motor power supply
WIFI Router Ethernet Switch
Network Equipment
Multimeter instrumentation
PTZ CCTV IP Camera
Electric toys
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
Battery powered equipment
Audio amplifier
In addition to driving resistive loads such as LEDs, the eletechsup DD2913MA module can also drive inductive loads such as motors by adding a protection circuit.
If the voltage is not suitable for your application or you purchased the wrong voltage version, you can change the output voltage by modifying the R1 resistor.
