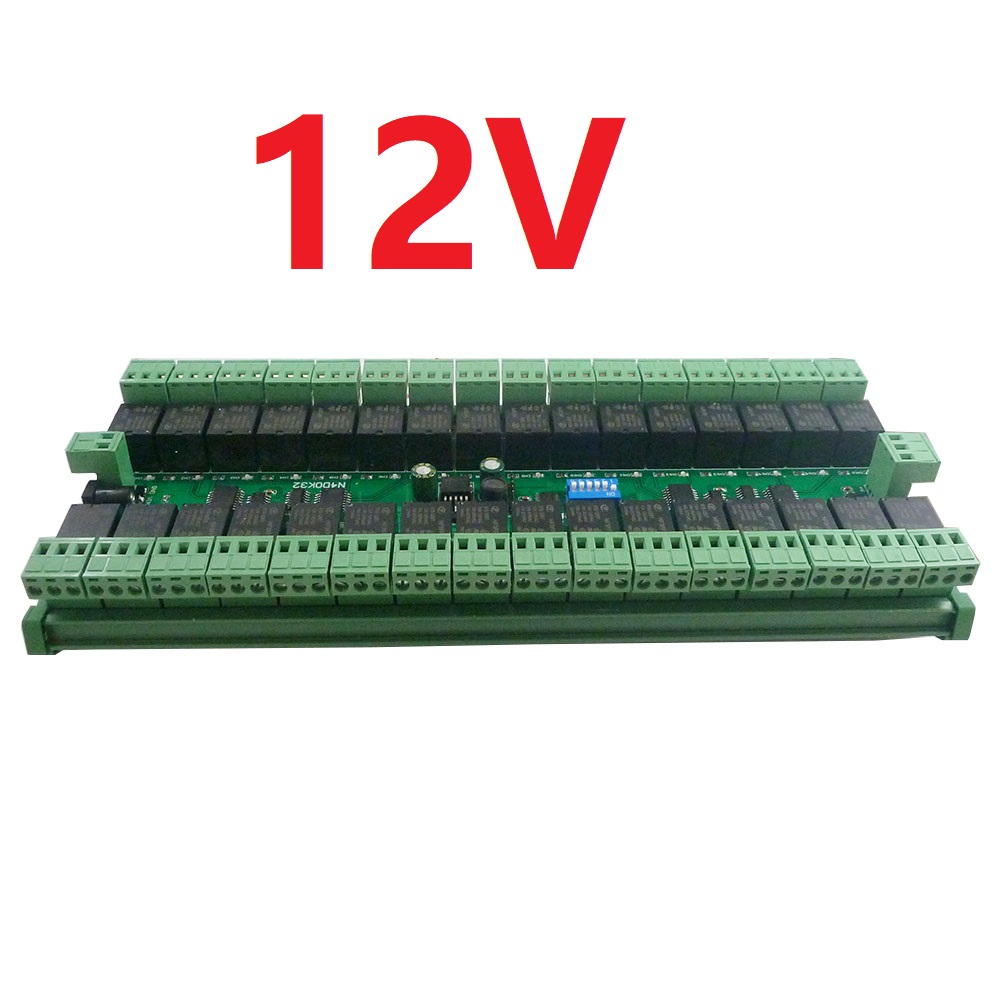

N4DOK32 12V 32ch 03 06 16 Modbus RTU RS485 SPDT Relay Switch Module UART Serial port Module DIN Rail Box PLC IO expanding board

N4DOK32 12V 32ch 03 06 16 Modbus RTU RS485 SPDT Relay Switch Module UART Serial port Module DIN Rail Box PLC IO expanding board

  • Model: N4DOK32_12V
  • Availability: In stock
  • Weight: 0.76Kg
US$39.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name: DC 12V 24V 32ch 03 06 16 Modbus RTU RS485 SPDT Relay Switch Module UART Serial port Module DIN Rail Box PLC IO expanding board


Package inlcuded:
1 x DC 12V/24V 10A 32 Channels Rail RS485 03 06 16 Modb us RTU SPDT Relay Module


Description:

1: 12V (12V version)/24V (24V version).

2: Standby current (all relays closed) 8MA, all 32 relay open 1.21A

3: ''Open'' ''Close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands

4: Support 03 06 16 MODBUS RTU function code

5 The default baud rate is 9600BPS, which can be configured to support 1200 2400 4800 19200 baud rates

6 Support 1 register operation 16 channels

7: Under the ''Delay'' command ,the maximum delay is 255 seconds

8 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;

9 Under the MODBUS command mode, it can support up to 64 devices in parallel

10 Size: 269 * 115 * 48mm
11 Weight: 735grams

12 Maximum load: 10A / 250VAC, 12A / 125VAC

DIN rail Box parameters(DIN Rail Box Version):

Product model: UM100
Color: green
Width: suitable for PCB board width UM100(100mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 226 mm PCB boards
Net weight: 224g
Installation: DIN35 and C45 rail

For more information, please contact me

Application

Automated industry PLC
Smart Home,Home Automation ,Wiser Home;
IP PTC Camera
Security Monitoring
Identification system;
Motor FW & BW
​LED Home lighting
Door Lock
PLC expansion board
diy electronic

Typical applications:

MODBUS RTU command mode (HEX), you can control a variety of ways: Serial Hyper Terminal Control (need to manually add the CRC), Modbus Poll software control (software automatically add the CRC), PLC or MCU process control








Wiring Diagram:



1 DC 12V/24V control circuit,Wiring diagram below. ''LOAD'' may be camera,LED lights, fans, motors and other DC 12V/24V equipment





2 DC 1-110V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V/24V load, need another DC 12V power supply). ''LOAD'' may be LED lights, fans, motors Lights, fluorescent lights, solar water heaters and other DC AC equipmen






Test Software(We offer a demo video):
Serial HyperTerminal:

Modbus Poll
