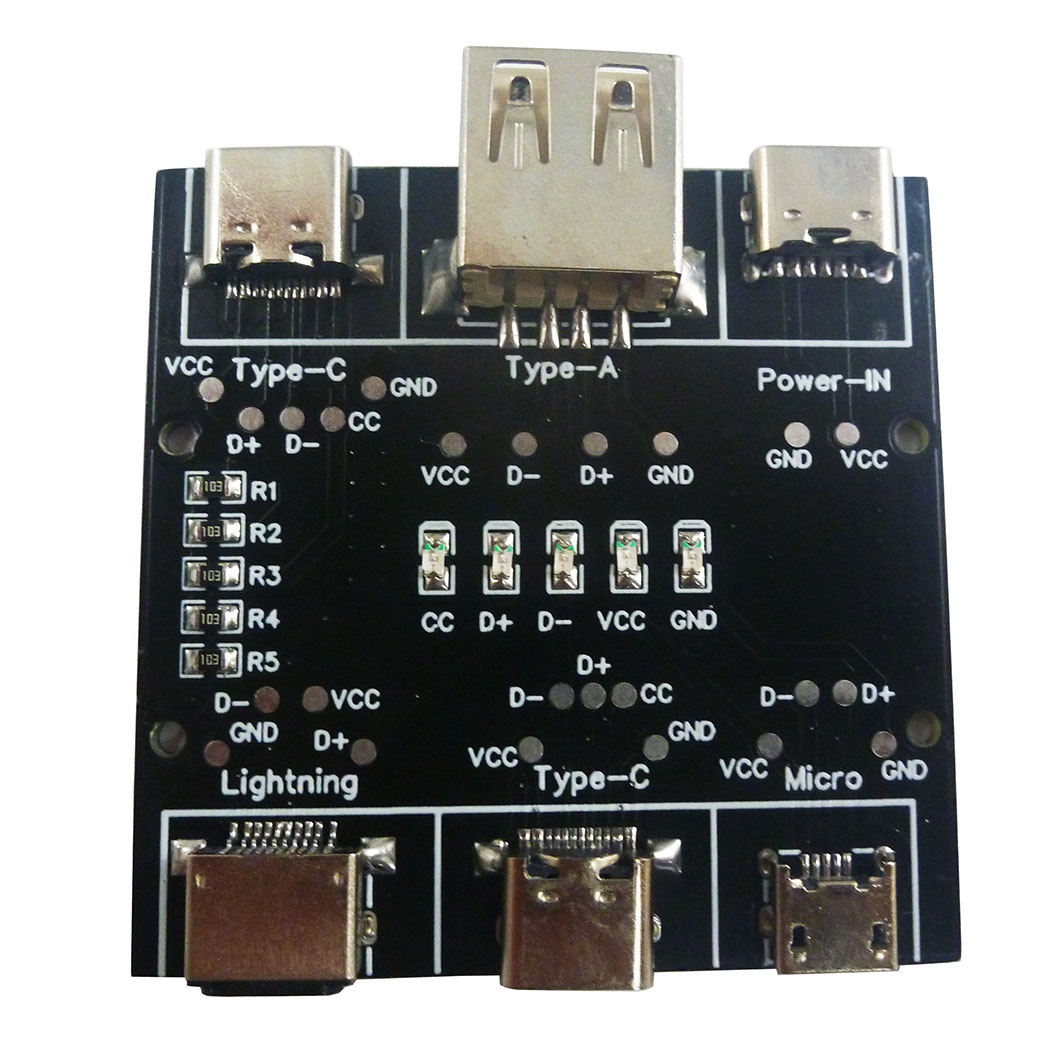

Product Name: Multifunction Mini USB Cable Tester USB A to Type-C Micro Lightning Short Circuit On-Off Data Cable Compatible With DT3
Packing list:
1 pcs USB A Type-C Cable Tester
Working power: DC 5V(TYPE-C Input)
Working current: 10-20MA
Model : UD11A03 (compatible with DT3)
Weight: 12.7g
Size: 50*50*10MM
Testable data line port:
USB-A to Micro
USB-A to Type-c
USB-A to Lightning
Type-c to Type-c
Instruction of The Tester:
1 Use the Type-c charging cable to plug into the Power-IN interface to supply power to the PCB board.
2 Insert one end of the data cable to be tested into the corresponding input port, and the other end into the corresponding output port.
3 Observe the indicator light.
Indicator light description:
1 D+, D-, VCC, GND indicator lights are on, indicating that the data line has data transmission function.
2 The VCC and GND indicators are on, indicating that the data line does not have the function of data transmission.
3 Type-c to Type-c data cable detection, CC, D+, D-, VCC, GND indicators are on. When testing other data cables, the CC indicator does not light up.
4 VCC or GND is off, indicating that the charging function of the data line is abnormal.
Notice:
During the test, except for the Power-IN port, the input and output ports of the test data line, other ports cannot be connected to the data line, otherwise the test result will be affected.
