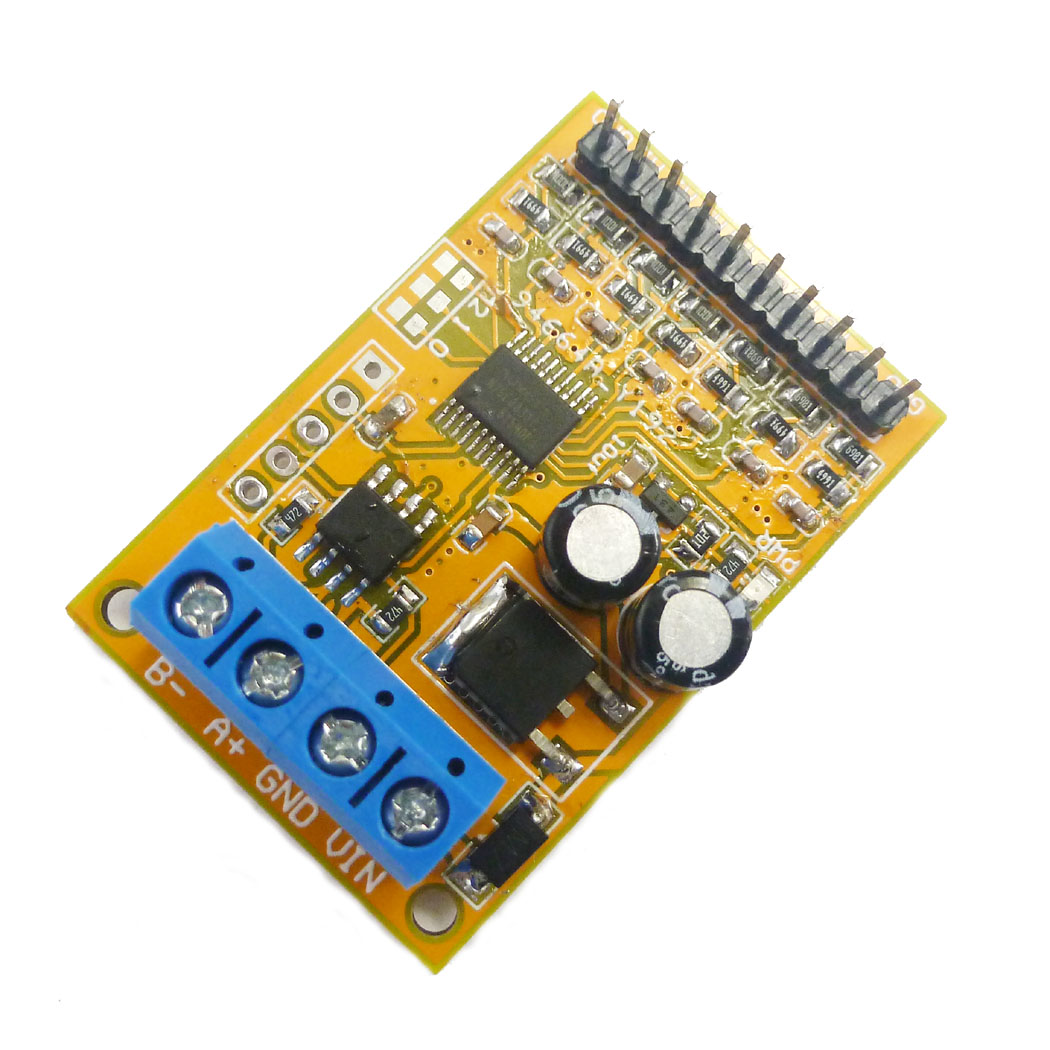

1 x R4AVA07 8-25V 7 Channel Voltage analog acquisition RS485 module
Description:
1: Operating Voltage : DC 8-25V(DC 9V 12V 15V 24V)
2: Operating Current : 10-15MA
3: MODBUS RTU Command support 03 06 function code
4: The A1/2/3/4 channel voltage measurement range is 0-5V, and the A5/6/7 channel voltage measurement range is 0-10V. The drive capability of the tested voltage source must be greater than 1MA, otherwise the measurement cannot be accurate (MCU IO voltage cannot be measuring)
5: Voltage measurement accuracy of 1%, calibration can be calibrated if the error is greater than 1%
6 :MODBUS commands can be made serial HyperTerminal (serial assistant) OR PLC Enter;
7 :Under the MODBUS command mode, it can support up to 247 devices in parallel
8 :Size: 45 * 30 * 15mm
9 :Weight: 10g
NOTE :
The drive capability of the tested voltage source must be greater than 1MA, otherwise the measurement cannot be accurate (MCU IO voltage cannot be measuring),
Recommend to buy a new version. click here
:
N4AIA04
Instruction manual Please ask us after the purchase
Application
4-20MA/0-20MA Sensor
Voltage analog acquisition
Automated industry PLC
Smart Home,Home Automation ;
Identification system;
RS485 Remote monitoring;
Multimeter voltmeter
