USE 1:
Power on, the relay is OFF, press the trigger button, the relay ON, press again, the relay OFF, the third press, the relayON, and so on.
USE 2:
Power on, the relay is OFF, MCU output low-pulse(0.3-1seconds), the relay ON, low-pulse again, the relay OFF, the third low-pulse, the relay ON, and so on.
Control Port:
1. V: Positive power supply (VCC)
2. G: Negative power supply (GND)
3. T (T1/T2/T3/T4): Low pulse trigger
Relay Output Port:
1. NO: Normally open Port
2. COM: Common Port
3. NC: Normally close Port
How to use:
After power on, the relay is OFF, triggering the T (T1/T2/T3/T4) port, the relay is ON;triggering again, the relay is OFF;and so on.
Typical applications:
Automotive electronics
Motor/PLC/HMI/LED
Smart Home/Home automation
Emergency lighting
MCU development board
Toy car/Model aviation
for UNO MEGA2560 raspberry pi
DIY for electronics enthusiasts
1 Channel DC 12V Self-locking Relay Module :
Working voltage: DC 7-24V(Recommended DC 9V 12V)
Working current: 61-70MA
Standby current: 0.12mA
Load current : AC 250V/10A, DC 30V/10A
Trigger mode: Low pulse trigger
Size: 48mm * 16mm * 19mm (L * W * H), Very small size
Weight: 15g

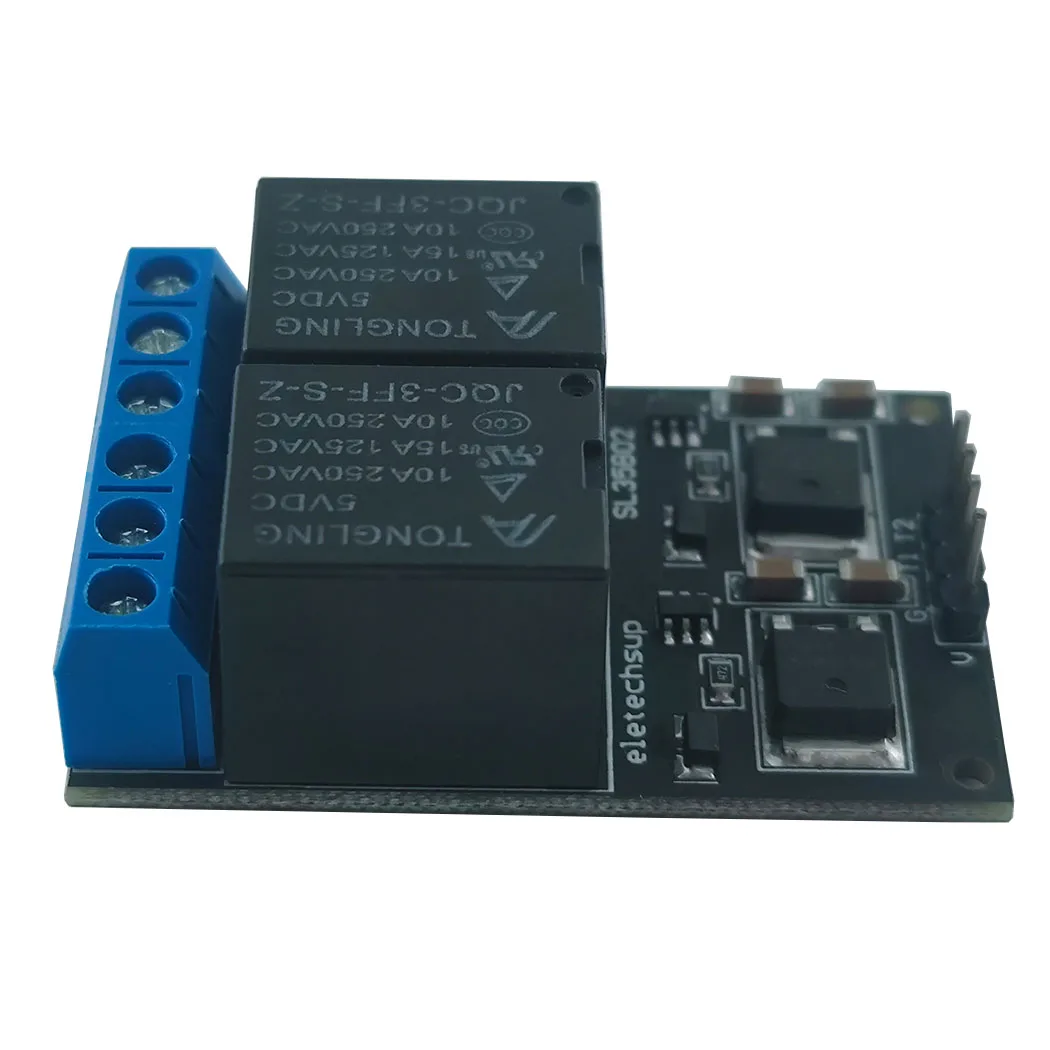

2 Channel DC 12V Self-locking Relay Module:
Working voltage: DC 6-24V(Recommended DC 9V 12V)
Working current: 1 relay 70MA;2 relay 140MA;
Standby current: 0.25mA
Load current : AC 250V/10A, DC 30V/10A
Trigger mode: Low pulse trigger
Size: 48mm * 32mm * 19mm (L * W * H), Very small size
Weight: 28 g
4 Channel DC 12V Self-locking Relay Module :
Working voltage: DC 6-24V(Recommended DC 9V 12V 24V)
Working current: 1 relay 37MA;2 relay 73 MA; 3 relay 1 10MA; 4 relay 146 MA
Standby current: 2mA
Load current: AC 250V / 10A, DC 30V / 10A
Trigger mode: Low pulse trigger
Size: 65mm * 47mm * 19mm (L * W * H)
Weight: 57g
