R444A01 DC 5V 12V 24V Digital display Modbus RTU RS485 Temperature humidity sensor Module AM2320 replace DHT11 DHT22 DS18B20 PT100

R444A01 DC 5V 12V 24V Digital display Modbus RTU RS485 Temperature humidity sensor Module AM2320 replace DHT11 DHT22 DS18B20 PT100

  • Model: R444A01_A
  • Availability: In stock
  • Weight: 0.031Kg
US$10.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name: DC 5V 12V 24V Digital display Modbus RTU RS485 Temperature humidity sensor Module AM2320 replace DHT11 DHT22 DS18B20 PT100


Package inlcuded:

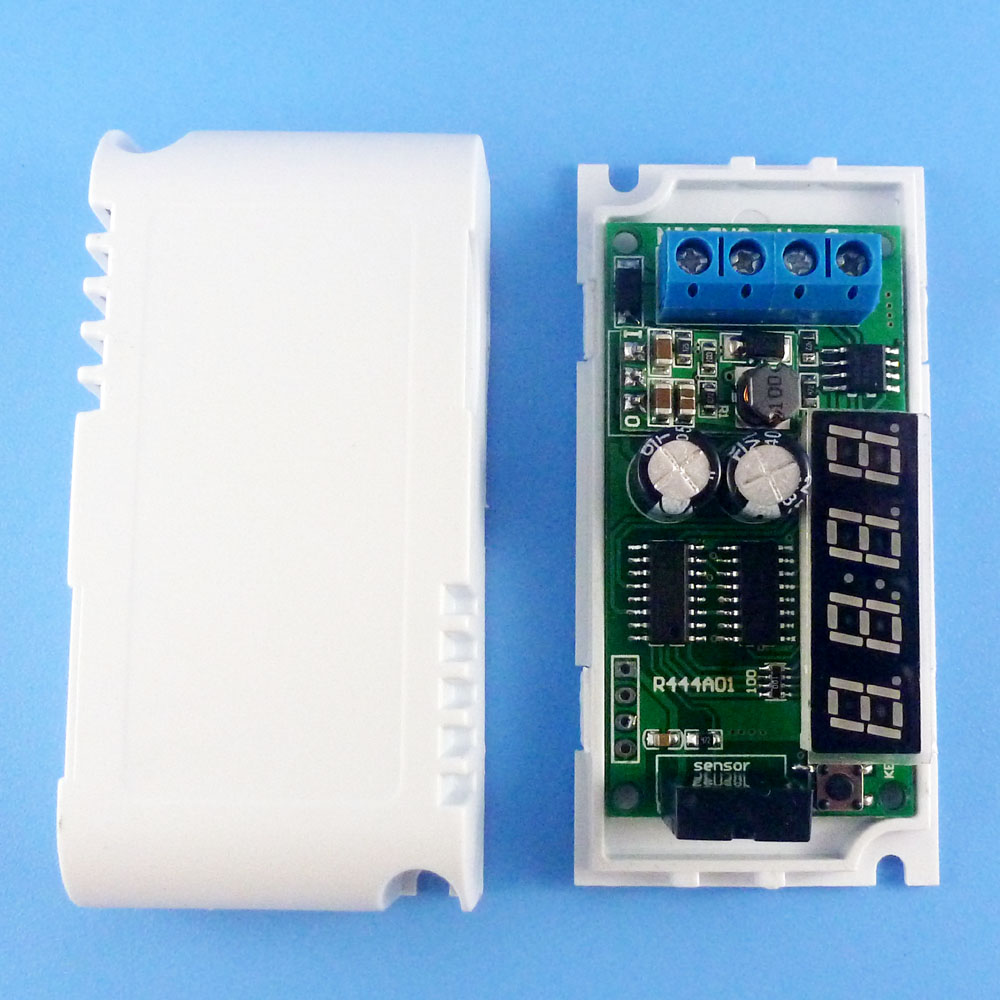

1 pcs R444A01_A Digital display RS485 Temperature and humidity sensor(With a simple shell)
Description:

Working voltage : DC 5-40V(6.5-28V recommended)

Working  current : Digital tube turn off is 5MA(12V), Digital tube turn on is 18MA(12V)

MODBUS RTU protocol,03 Read,06 Write.

Serial baud rate : 9600(default),N,8,1

By modifying the RS485 address, up to 247 module s can be connected (More than 16 devices, it is recommended to use RS485 repeater)

Temperature and humi dity sensor is AM2320

The voltage conversion module is DD4012SA,a High-efficiency and Low-heat voltage Converter

Size : Module is 59 X 30 X 18MM,Shell is 73 X 37 X 23MM

Weight : Module is 16g,Shell is 16g

Note:
With the built-in sensor version (R444A01_A), turn on the display for a long time will Will let the temperature rise 1-2 degrees Celsius. It is recommended to turn off the digital tube, or use a version with an external sensor (R444A01_B)
For more information, please contact me


How to use:
1 Display "Eror" after power-on
If "Eror" is displayed for a long time, it indicates that the sensor is not connected or is damaged
2 After 5 seconds, display the temperature or humidity
3 Trigger " KEY "button to switch the display temperature and humidity.(This parameter is powered down memory)
4 Press and hold the "KEY" button for 3 seconds to turn off or turn on the display.(This parameter is also powered down memory)

Note: If the digital tube is turn off after power-on, press and hold the "KEY" button until the digital tube is turn on

Typical application:

Indoor and outdoor temperature and humidity measurement
Temperature and humidity monitoring in vegetable garden
Weather forecasting, and monitoring
Temperature and Humidity Monitoring in Computer Room
Warehouse temperature and humidity monitoring

Sensor parameters:


Wiring diagram:
