1.operating voltage: DC 12V ;
2.static operating current:≤6mA;
3.Working temperature :-20°C- +80°C;
4.Receive sensitivity:≥-105dBm;
7.size:74.5*54.5*27mm ;
9. Pls connect the receiver modules properly before power supply ;
10: 4 channels;
11: Learning function (can works with EV1527 SC2262 PT2262 PT2264 PT2260 remote , can store 16 pcs different code remote );
12: Max load : 1000W;
Output:
A.singnal Inter-locking (Latch)----connect 1 and 2 ;
B.singnal Self-locking (Toggle) ---- connect 2 and 3 ;
C.singnal Non-locking (Momentary ) ---- disconnect the jumper ;
Self-lock type (Toggle): 4 channels opens and closes independently, 4 channels can work together ,they don’t affect each other . press A button, A relay of work and locked, press again then disconnected; Same as B C D .
Learning method and steps
1. Keep pressing learnig key on receiver board , release the button when LED is off , enter the learning state ;
2. Press any key on remote control within 5 seconds , LED flash 3 times and then turn on , then ithave success in learning .
Clear the deposit information
Keep Pressing Learning Key , LED turns off , Wait 10 Seconds , LED turn on , that deposited information has been successfully cleared ;

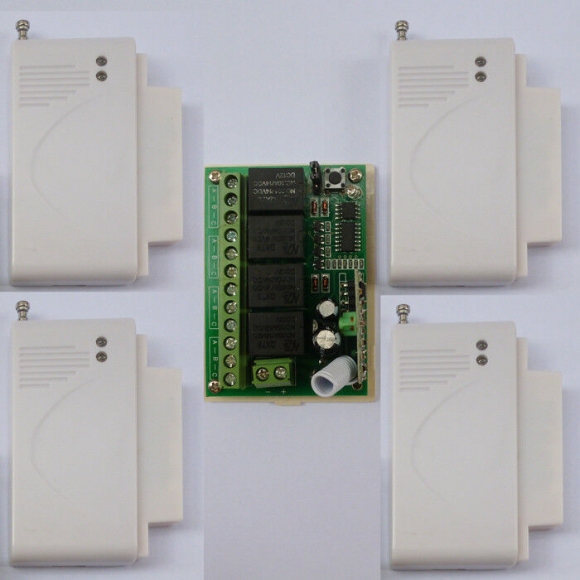

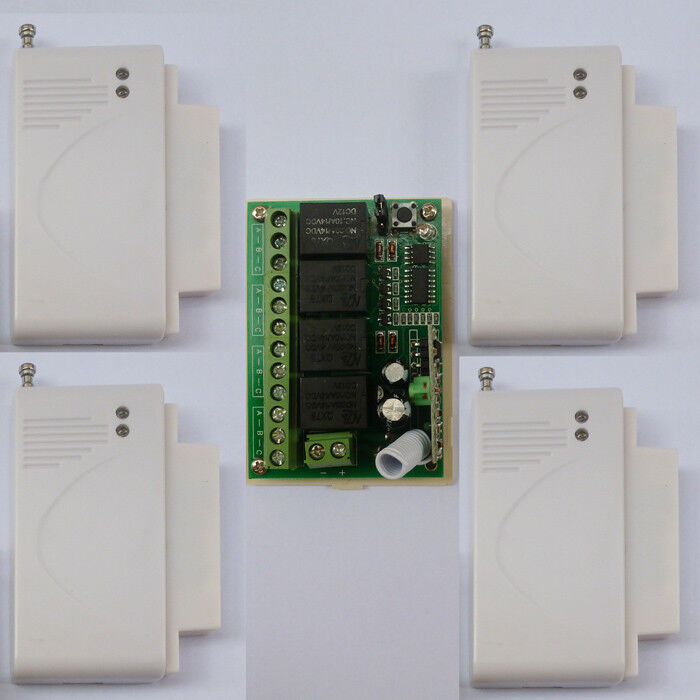

433Mhz Wireless Door / Windown Sensor
、
It will work with most standard security system. Pull out the antenna of the magnetic detecto: when the door or window is opened from the closed position, LED 1 will turn to red for 2 seconds, the magnetic detector will be triggered and will send alarming signal to the main unit. Indication of low battery: When the voltage of battery is less than 7.5V, LED 2 will straightly turn on red light. At this time, you nee to immediately change the battery.
Launch Distance: 50-80 meters (open place)
Operating Voltage: 12V
Operating Frequency: 433MHz.
Encoding: EV1527 Fixed Code IC ;
Size: 71 x 36 x 15(mm) / 2.8 x 1.4 x 0.6(inch )
Oscillation resistance: 470K ;
Power supply: 12V 23A Battery (the battery is not included ) ;
2)Package:
1*wireless door sensor
Wiring Diagram 2:
DC 1-110V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment
