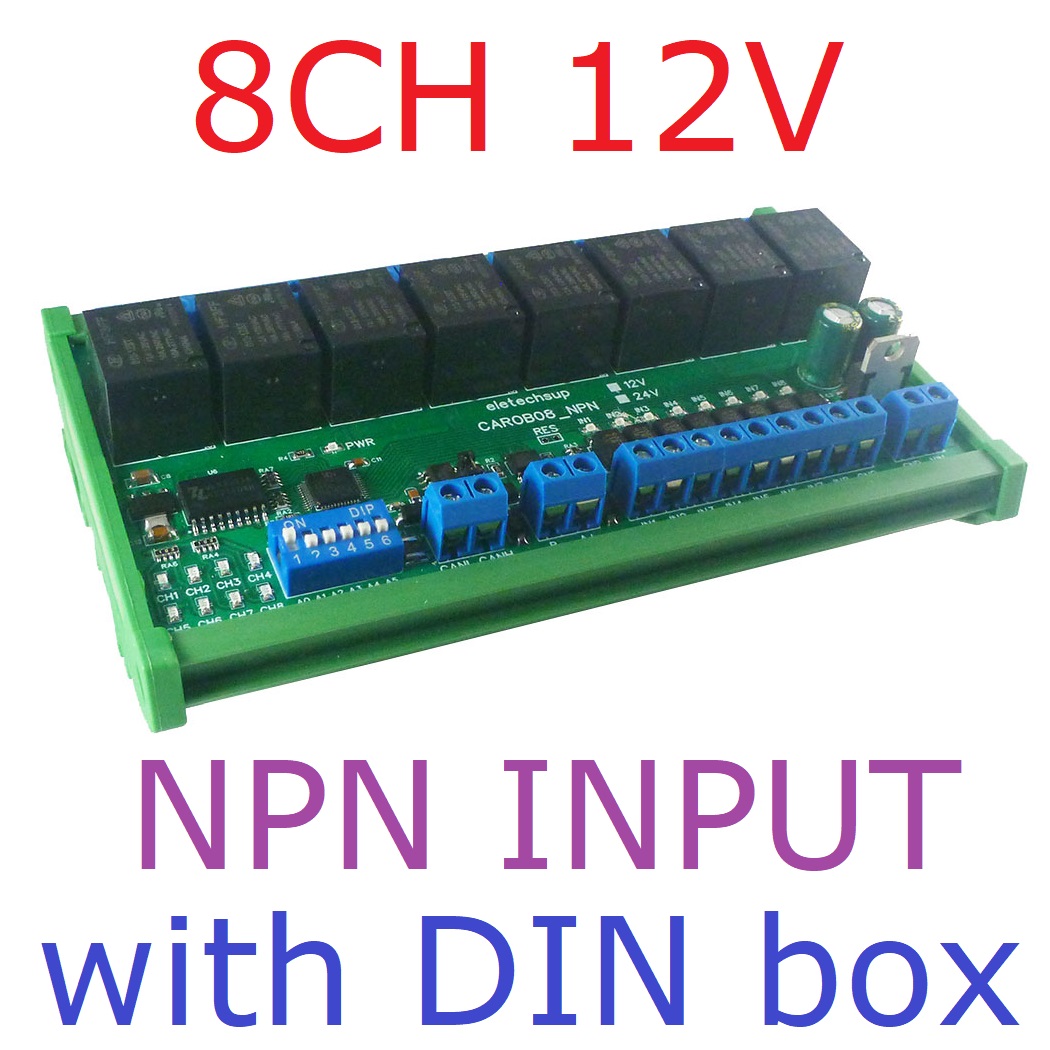

CAROB08 12V NPN 8DI-8DO CAN Relay Controller Module RS485 Digital IO Expanding Board for CNC Car Automated Industry

CAROB08 12V NPN 8DI-8DO CAN Relay Controller Module RS485 Digital IO Expanding Board for CNC Car Automated Industry

  • Model: CAROB08_NPN_12V_R
  • Availability: In stock
  • Weight: 0.24Kg
US$31.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name: 4/8/16 DI-DO CAN Relay Controller Module RS485 Digital NPN/PNP IO Expanding Board for CNC Car Automated Industry



Package inlcuded:

1PCS DC 12V/24V 4/8/16 DI-DO 2 IN 1 CAN/RS485 BUS PLC IO expansion MODULE


Description:

1:DC 12V (12V Version),DC 24V (24V Version)
2.Standby current (all relays closed) 9-14MA, 1 relay open 41MA, 2 relays open 70MA, 3 relays open 96MA,4 relays open 121MA,5 relays open 150MA,6 relays open 174MA, 7 relays open 200MA,8 relays open 226MA...
3:4/8/16 photoelectric isolation Input ports (NPN low level active,8CH have PNP input versions ).
The input-output relationship can be set to various association modes through instructions(Self-lockingdefault)/Interlocking/Momentary/Interlocking/Output=Input)
4: RS485 Interface Support standard Modbus RTU command, function code, write 05/06/15/16 read 01/02/03
5 CAN Interface Support Standard Frame /Extended Frame Format(For protocol details, see''CAROA04 CAROB08 CAROC16 CAN COMMAND''
6: With hardware reset function, with TVS anti-surge protection
7 :4/8/16 opto-isolated inputs (NPN/PNP), 4/8/16 relay outputs (upgraded relays, more durable)
8 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll''Enter;
9 Under the MODBUS command mode, it can support up to 64 devices in parallel
10 RS485 baud rate is 9600BPS. The baud rate can be selected by Conmand 2400 4800 9600 19200 38400 57600 115200BPS
11 The RS485 parity can be none parity, even parity and odd parity
12 The CAN default baud rate is 250Kbps, which can be set to 5-1000KBPS by command
13 The data sending and returning time can be set,with a maximum value of 1000ms
14 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

4DI-4DO CAROA04
Size: 88* 72 * 12mm(Only Board);94* 82*40mm(with Din Rail Box)
Weight: 73g(Only Board);141g(with Din Rail Box)


8DI-8DO CAROB08
Size: 140* 72 * 12mm(Only Board);146* 82*40mm(with Din Rail Box)
Weight: 130g(Only Board);232g(with Din Rail Box)

16DI-16DO CAROC16
Size: 255* 82*40mm(with Din Rail Box)
Weight: 410g(with Din Rail Box)


For more information, please contact me

DIN rail Box parameters:

Product model: UM72
Color:
Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 88/140/249mm PCB boards
Net weight: 68/102/200g
Installation: DIN35 and C45 rail


Application

PLC IO expansion board
Smart Home,Home Automation ,Wiser Home;
PTZ Camera
Security Monitoring
Identification system;
CAN Bus
LED Lamp Drivers
Automatic curtain control
Automated industry
CNC machine tool




Resource description for each version

Input and output wiring diagram

The protocols of CAN and RS485 buses are different, but they can be used at the same time, and the IO ports can be controlled at the same time

CAN bus command details:''CAROA04 CAROB08 CAROC16 CAN COMMAND''
RS485 bus command details:''CAROA04 CAROB08 CAROC16 RS485 MODBUS RTU COMMAND''


CAN Command Control Guidelines
1. Connect the CANL CANH two wires of the CAN bus
2 Provide 12V/24V power supply to the board (according to the version you purchased)
(Factory Setting: Address Code 0x01, Baud Rate 250Kbps)

Example 1, set channel 1/8/16 to ON and other channels to OFF:
Send data(HEX): 01 01 81 80 00 00 00 00 00 00
Return data(HEX): 01 01 81 80 00 00 00 00 00 00

Example 2, set channel 2/7/11/15 to ON and other channels to OFF:
Send data(HEX): 01 01 42 44 00 00 00 00 00 00
Return data(HEX): 01 01 42 44 00 00 00 00 00 00
