N4DIH32 32CH PNP Isolated Digital Input RS485 Modbus Rtu Controller DC 12V 24V PLC Switch Quantity Acquisition Module

N4DIH32 32CH PNP Isolated Digital Input RS485 Modbus Rtu Controller DC 12V 24V PLC Switch Quantity Acquisition Module

  • Model: N4DIH32_R
  • Availability: In stock
  • Weight: 0.2Kg
US$16.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name: 32CH PNP NPN Isolated Digital Input RS485 Modbus Rtu Controller DC 12V 24V PLC Switch Quantity Acquisition Module


Package inlcuded:

N4DIH32_N4DIM32 32-channel digital input module



Description:


1 Working voltage: DC 12V/24V(6.5-25V)

2 Working current: 8-20MA

3 MODBUS RTU 03 06 command control mode

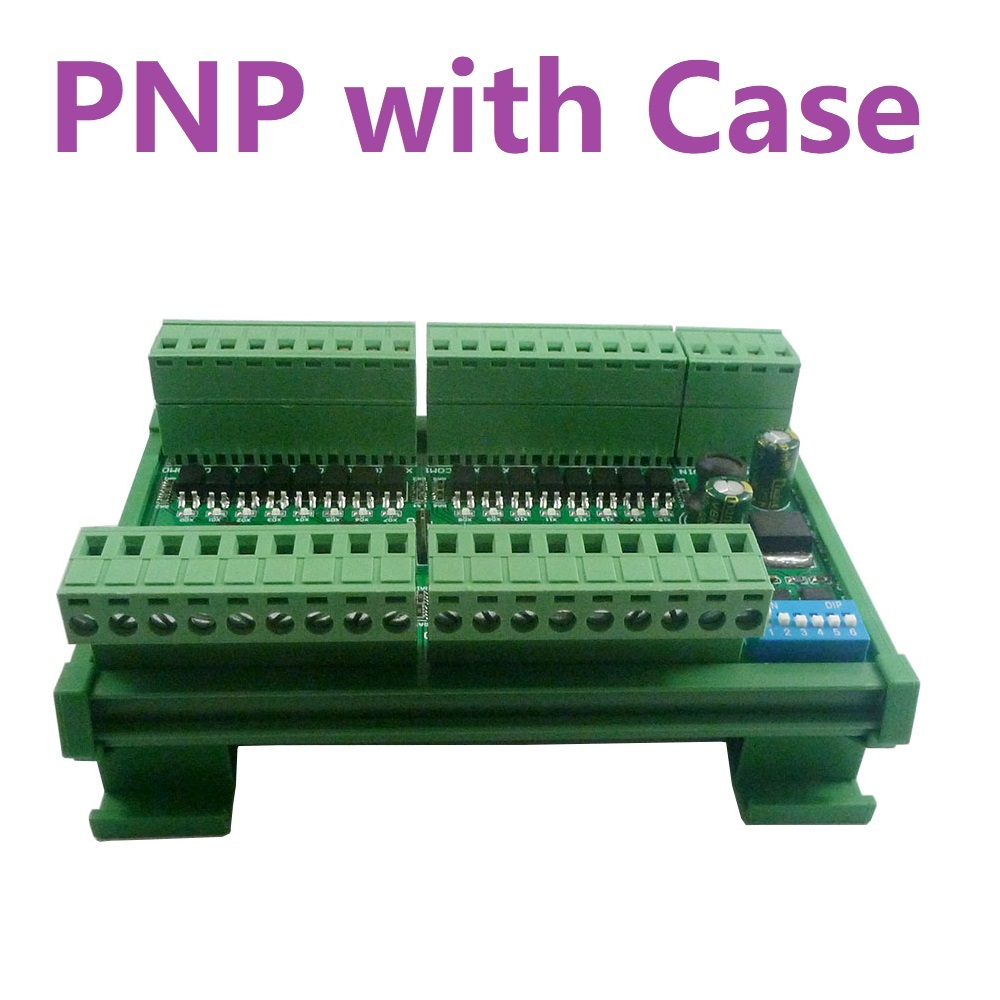

5 Two input versions, PNP high level input (green PCB), NPN low level input (blue PCB)

6 Input port voltage range: 5-30V

7 Input port status supports query (default) and automatic reporting

8 The default baud rate is 9600BPS, which can be configured to support 1200 2400 4800 19200 baud rate

9 Size: 122*88*47(with Case), 120*72*25(Only Board)

10 Weight: 200 grams(with Case), 114 grams (Only Board)




Instruction manual Please ask us after the purchase



Application

Automated industry PLC

PLC input expansion board

Digital in to RS485

Smart Home,Home Automation ;

Identification system;

CCTV Camera PTZ Control;

Security system;

RS485 remote control;
