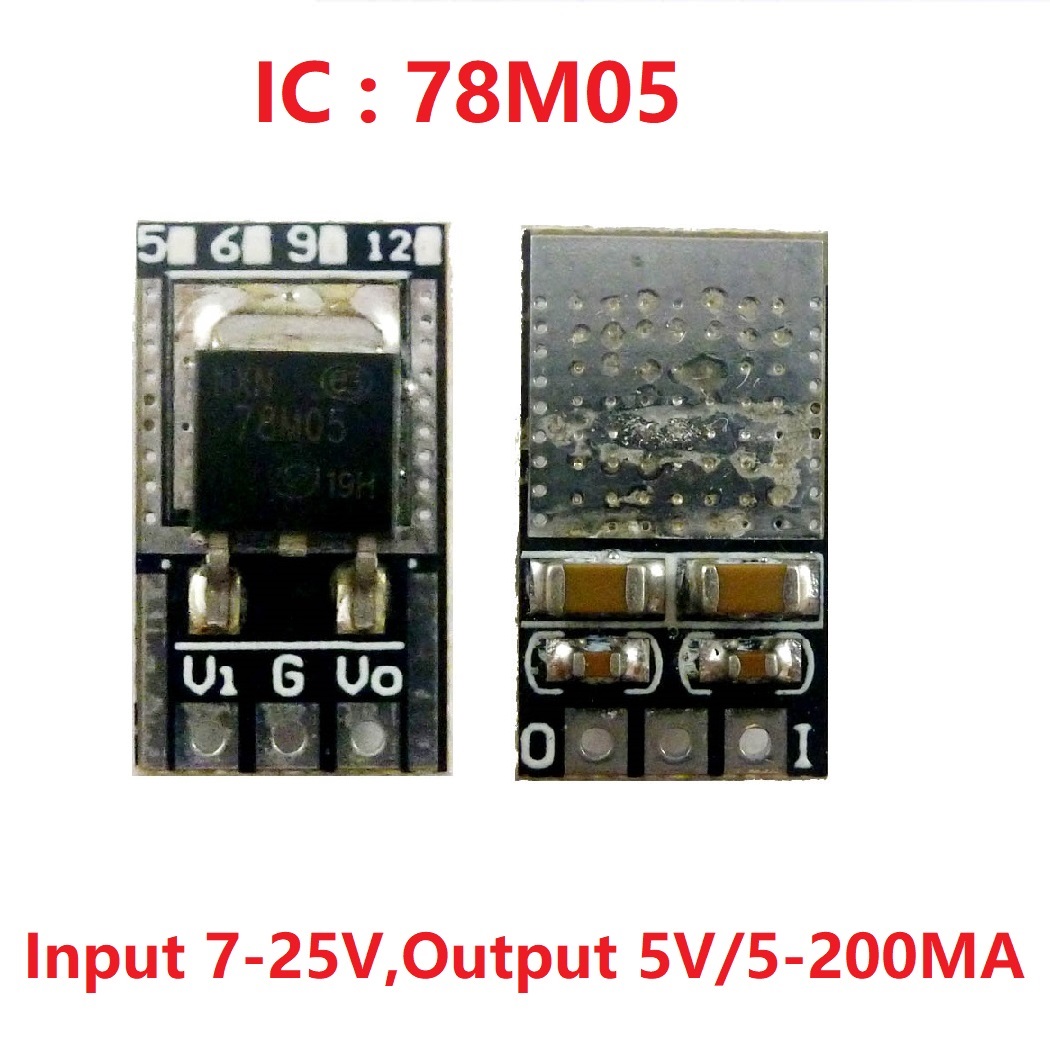

Input voltage: DC 7-25V ,Output voltage: DC 5V
Output current : 5- 200mA
Short Circuit Current : 300mA
6V :
Input voltage: DC 8-25V ,Output voltage: DC 6V
Output current : 5- 200mA
Short Circuit Current : 270mA
9V :
Input voltage: DC 11.5-25V ,Output voltage: DC 9V
Output current : 5- 200mA
Short Circuit Current : 250mA
12V :
Input voltage: DC 14.5-30V ,Output voltage: DC 12V
Output current : 5- 200mA
Short Circuit Current : 240mA
Quiescent Current : 6mA
Thermal overload protection
Short circuit protection
Output transition SOA protection
± 2 % output voltage tolerance
Guaranteed in extended temperature range
Operating Temperature: -40℃ ~ +125℃
Size : 18 x 10.5 x 5mm
Weight : with pin 1.1g,no pin 0.9g
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
