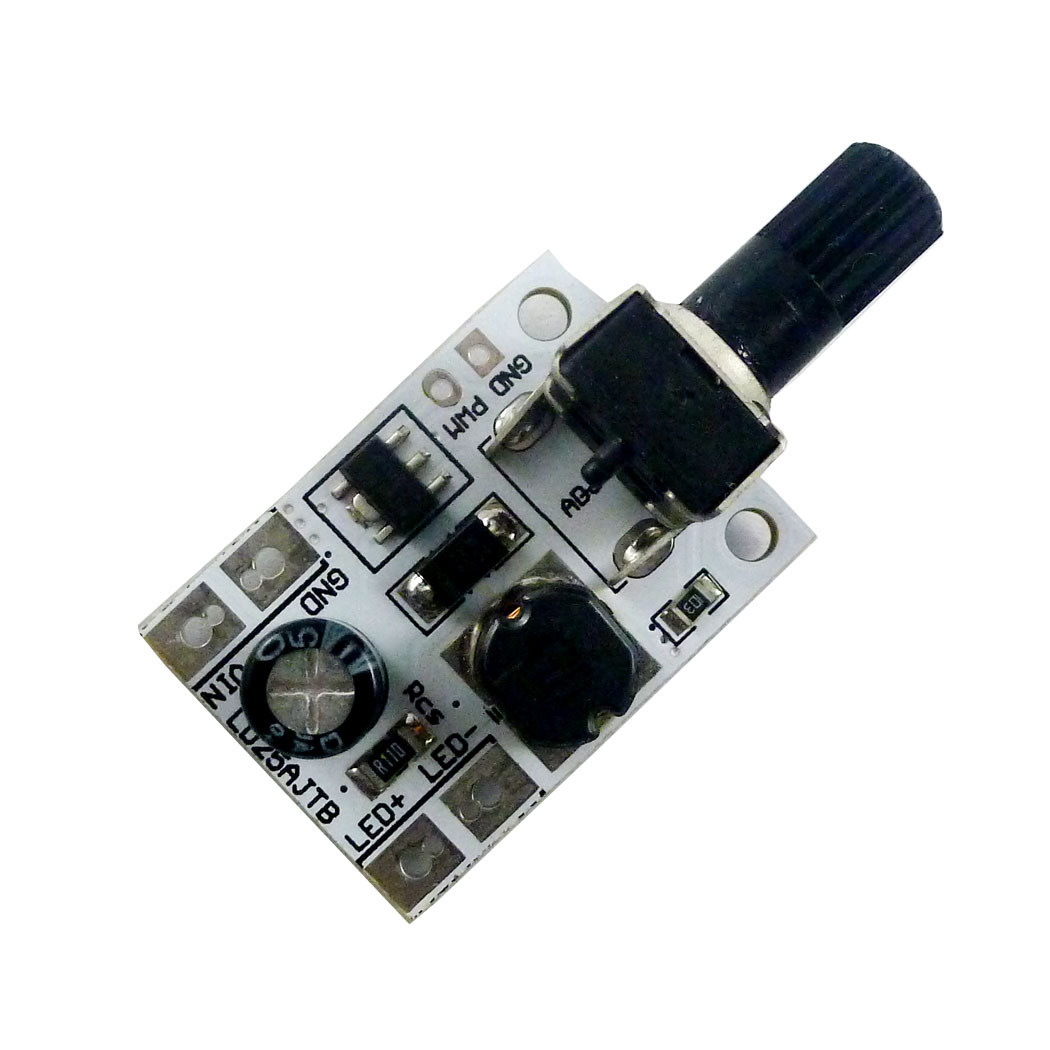

LD25AJTB 20W 6-25V Multifunction Handle Adjustment LED Driver Module PWM Controller DC-DC Step-down Constant Current Converter

LD25AJTB 20W 6-25V Multifunction Handle Adjustment LED Driver Module PWM Controller DC-DC Step-down Constant Current Converter

  • Model: LD25AJTB
  • Availability: In stock
  • Weight: 0.007Kg
US$2.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name : 3PCS 20W 6-25V Multifunction Handle Adjustment LED Driver Module PWM Controller DC-DC Step-down Constant Current Converter

Packing list:

3 PCS 20-900MA 6-25V Multifunction Handle adjustment LED driver Module

Description:

6-25V 910mA Step-down High Brightness LED Driver with 5000:1 Dimming

Working voltage : DC 6-25V(Perfect for 6V 9V 12V 18V 24V LED Driver)

Output Current: 20-900MA;By changing the RCS resistance, the maximum current can reach 1200MA

Maximum output power: 20W

Current regulation: 1 through through the handle, 2 through PWM control

Single pin on/off and brightness control using DC voltage or PWM
Up to 1MHz switching frequency
Typical 5% output current accuracy
Inherent open-circuit LED protection
High efficiency (up to 97%)
High-Side Current Sense
Hysteretic Control: No Compensation
Adjustable Constant LED Current

Size : 28 x 20 x 16MM(Handle not included)
Handle Size : Length 13MM,Diameter 6MM
Weight : 5g






Application 1: Wiring in accordance with the following figure, Adjust the current through the handle.

Application 2: Ignore the adjustable resistance, control the output current through the PWM port, the current is 0-900MA adjustable
Application 3 : Add an enable control switch based on application 1.
