Product Name : 16CH Current Voltage Analog Collector 20MA 30V ADC RS485 Bus Core Board for Arduino Pi PICO ESP32 ESP8266 WIFI Nodemcu

Package inlcuded:

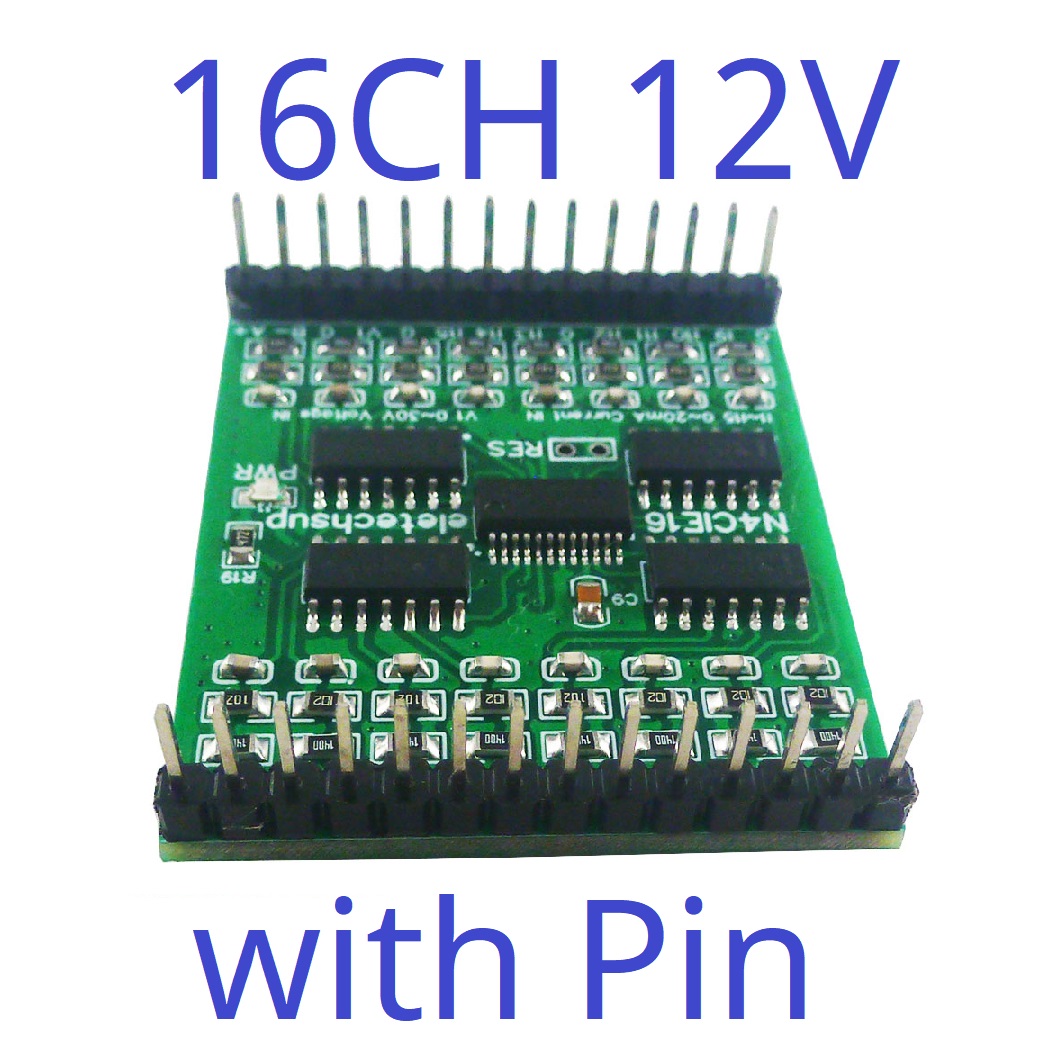

1 PCS 16AI N4CIE16 15x 4-20MA & 1x 0-30V Analog Input Collector Board

Features:
1 Working voltage: DC5V/ DC 12V(7-24V) two versions
2 Working current: standby 6-7MA, working current 12-20MA
3 Support standard Modbus RTU command, function code: write 06/16 read 03/04
4 With hardware reset function, RS485 with TVS anti-surge protection, anti-reverse power supply
5. In MODBUS command mode, up to 64 devices can be used in parallel
6 The default baud rate is 9600BPS, the baud rate can be selected by command 1200 2400 4800 19200 38400 57600 115200BPS
7 You can choose the check mode is no check, even check and odd check
8 You can set the data sending return time, the maximum can be set to 1000ms
9 Size: 44 * 35.6 * 5mm ( only board) 44* 35.6*11mmmm (with pin)
10 Weight: 7.6 grams (only board ); 9.2 grams (with pin)

This is a 2.54MM pin header version of the RS485 current collector, fully compatible with the terminal block version (N4AIB16 ).
The size is kept to a minimum while meeting the functional performance. It can be used as a core board and embedded into the base board.


Interface definition:
VIN : Power input+
GND: Power input-
I1: Current input channel 1
I2: Current input channel 2
I3: Current input channel 3
I4: Current input channel 4
...
I15: Current input channel 15

V1: Voltage input channel 1
A+: RS485 signal A+
B-: RS485 signal B-

For more information, please contact me

Application

PLC Output expansion board
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Displacement/Hall sensor

PT100 K P Thermocouple Sensor
Automatic curtain control
0-20MA/4-20MA Current Sensor
0-10V/0-5V Voltage Sensor

Motion detector
Industrial field measurement and sensing
