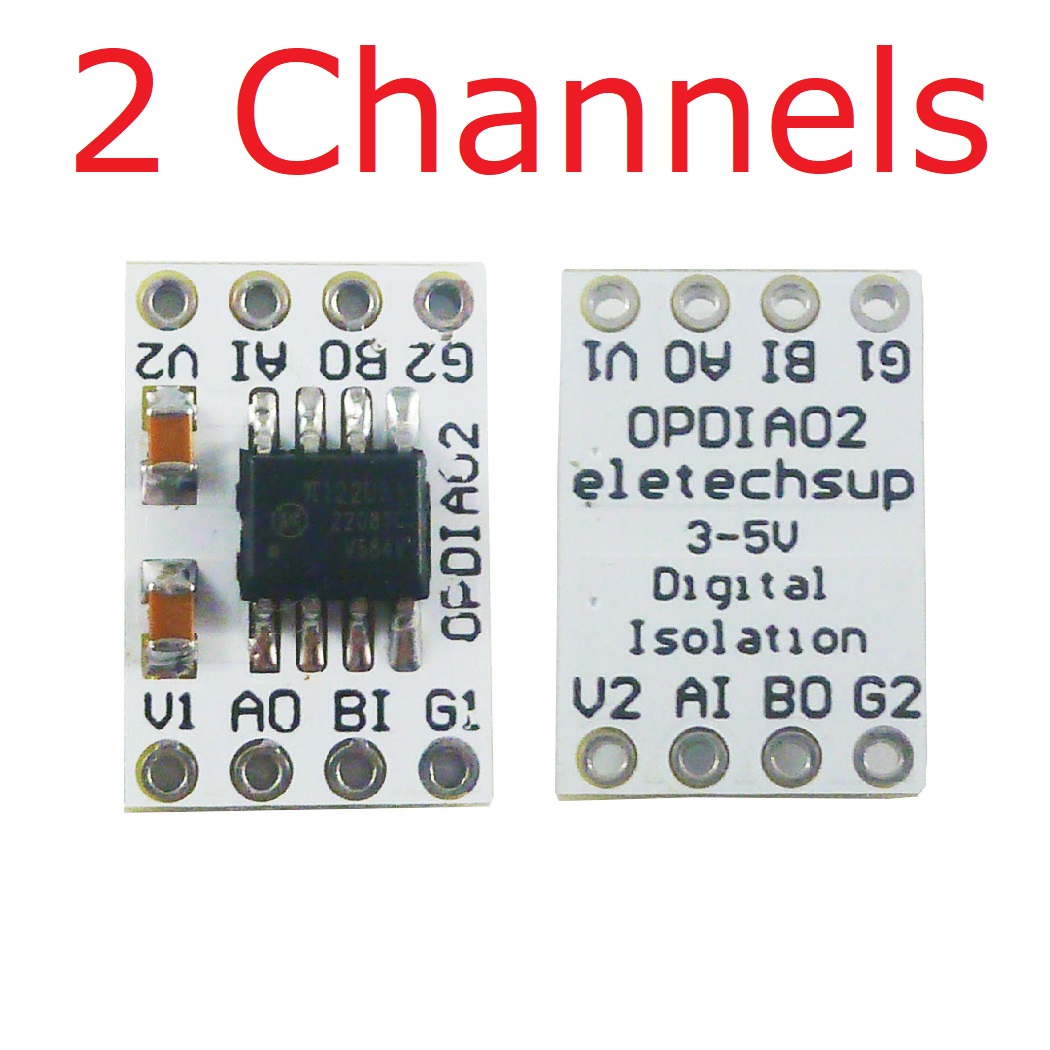

OPDIA02 2 Channels DC 3.3V 5V Digital Isolation Communication Module 150Kbps TTL LvTTL Level Converter for UART SPI IIC RS485 GPIO

OPDIA02 2 Channels DC 3.3V 5V Digital Isolation Communication Module 150Kbps TTL LvTTL Level Converter for UART SPI IIC RS485 GPIO

  • Model: OPDIA02
  • Availability: In stock
  • Weight: 0.003Kg
US$1.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns


Product Name: 2-8CH DC 3.3V 5V Digital Isolation Communication Module 150Kbps TTL LvTTL Level Converter for UART SPI IIC RS485 GPIO




Packing list:
DC 3.3V 5V 2-8CH Enhanced ESD 3.0 kV rms 150Kbps Digital Isolators Module






Description :

Working voltage: DC 3-5.5V
Quiescent Supply Current: 0.6MA/1.2MA/2.4MA
Channels: 2/4/8 Chanels
Logic level: 3-5V
Drive current: 10MA
Data rate: 150Kbps
Whether with voltage isolation: with voltage isolation
Isolation voltage (Viso): 3000Vrms

2CH:
Size : 10.16 * 15 * 3MM
Weight : 0.5g

4CH:
Size : 15.24 * 15 * 3MM
Weight : 1g

8CH:
Size : 25.4 * 15 * 3MM
Weight : 2g


Typical Application :
for Arduino UNO MEGA2560 DUE Pro mini Nano
for Raspberry pi 4 / pico w
NRF24L01 NRF24LE1 CC2500 ZIGBEE/CC2530
FPGA/CPLD ARM AVR PIC C8051 C51 MSP430
MCU Development Board
for UART SPI IIC RS485 isolated communication


Pin description:​
