Package inlcuded(It is recommended to choose to buy a transceiver kit)
:

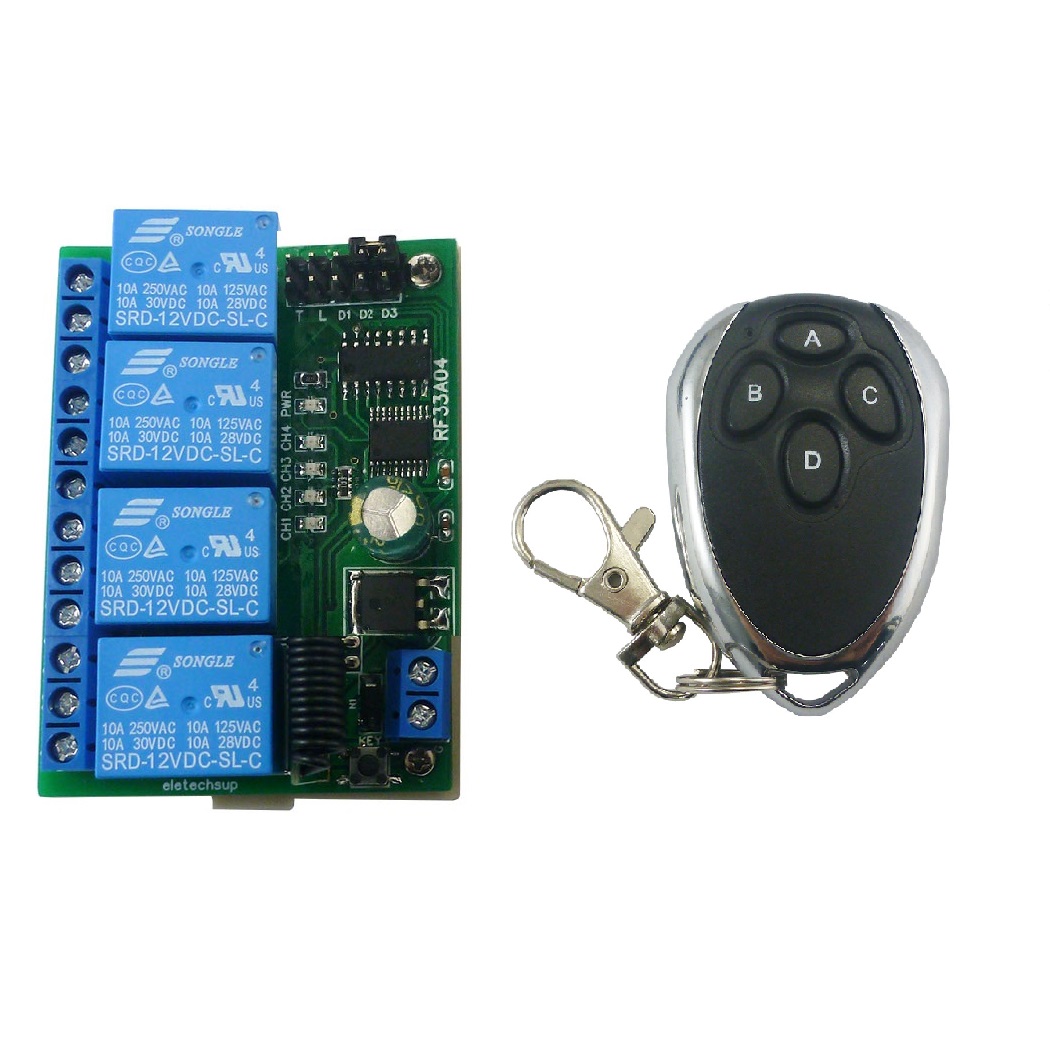

1 PCS 433M DC 12V 4CH Keeloq Relay Board
1 PCS 433M HCS301 Keyfob(
Does not include 12V 27A battery)
Description:
1. Operating Voltage: DC 12V;
2. Operating Current: Standby current (all relays closed) 15MA, 1 relay open 42MA, 2 relays open 69MA, 3 relays open 96MA, 4 relays open 122MA;
3. Wireless Receiving frequency : 433.92M ;
4. Wireless Receiving sensitivity: -108dBm ;
5. Decoding type: Rolling Code, Only adapted to RC43A04(Our company's HCS301 Remote control) Remote Control , Can store up to 32PCS RC43A04 remote controls;
6. Working modes: Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch), Delay; delay time can be 5 seconds, 10 seconds, 120 seconds;
7. size (including shell) 75*54*28mm;
8. weight : 83.3 grams;
9. Relay Maximum load(Recommended<5A):10A/250VAC,10A/125VAC,10A/30VDC, 10A/28VDC ,10A/12VDC .
It is recommended to buy multiple remote controllers as a spare
For more information, please contact me
Application
Remote control, remote measurement system;
DC 12V Home lighting system
Garage Door
Elevators
Motor reversing control
Remote control switch
Smart Home / Home Automation
LED lighting
Fluorescent lamp
DC 12 DC Motor,RS360
Remote Control Description:
Remote model : RC43A04(Rolling code);
Power supply : 12V 27A battery replacable .(
This remote doesnot have a battery , Please buy in your local market )
Operating current: ≤ 9mA;
Oscillation mode: SAW resonator;
Modulation mode:ASK;
Operating frequency:433.92MHZ;
Frequency deviation:± 150Hz (max);
Encoding format: Rolling Code ( HCS301) ;
Transmit power:10 mW.
Weight : 28gram.
Notice:
This Remote CANNNOT cannot copy or clone any other brand remote , it doesnot have copy function . it can only work with our own rolling code receiver.
