Product Name: 2CH 433M Secure Remote Keyless Entry Controller Rolling Code Keeloq HCS301 Remote Control Keyfob Transmitter
1 PCS 433M HCS301 Remote Control(Does not include 12V 27A battery)
2. Operating Current: Standby current (all relays closed) 13MA, 1 relay open 41MA, 2 relays open 68MA
3. Wireless Receiving frequency : 433.92M ;
4. Wireless Receiving sensitivity: -108dBm ;
5. Decoding type: Rolling Code, Only adapted to RC43A04(Our company's HCS301 Remote control) Remote Control , Can store up to 32PCS RC43A04 remote controls;
6. Working modes: Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch), Delay; delay time can be 5 seconds, 10 seconds, 120 seconds;
7. size (including shell) 62*58*30mm;
8. weight : 51.1 grams;
9. Relay Maximum load(Recommended<5A):10A/250VAC,10A/125VAC,10A/30VDC, 10A/28VDC ,10A/12VDC .
It is recommended to buy multiple remote controllers as a spare
For more information, please contact me
DC 12V Home lighting system
Garage Door
Elevators

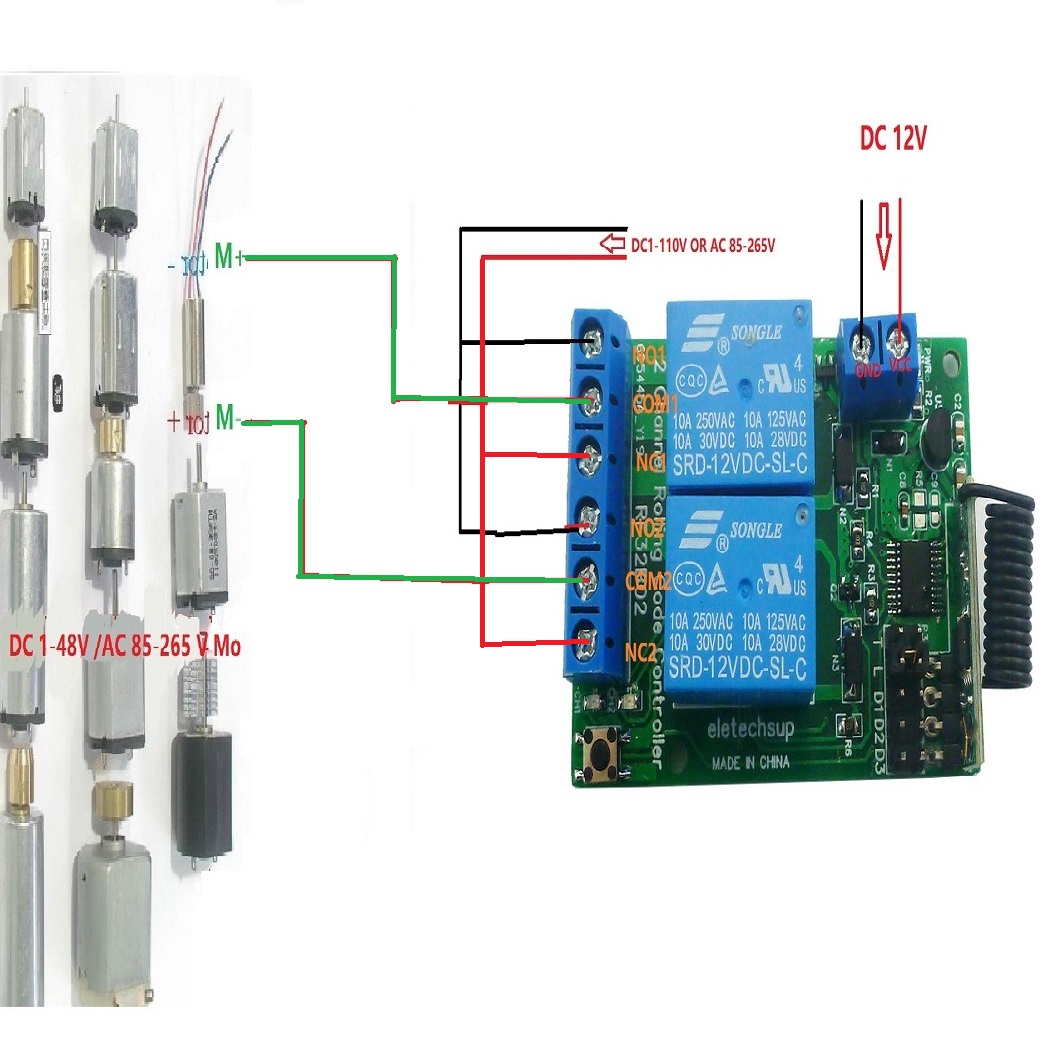

Motor reversing control
Remote control switch
Smart Home / Home Automation
LED lighting
Fluorescent lamp
DC 12 DC Motor,RS360
PTZ Camera

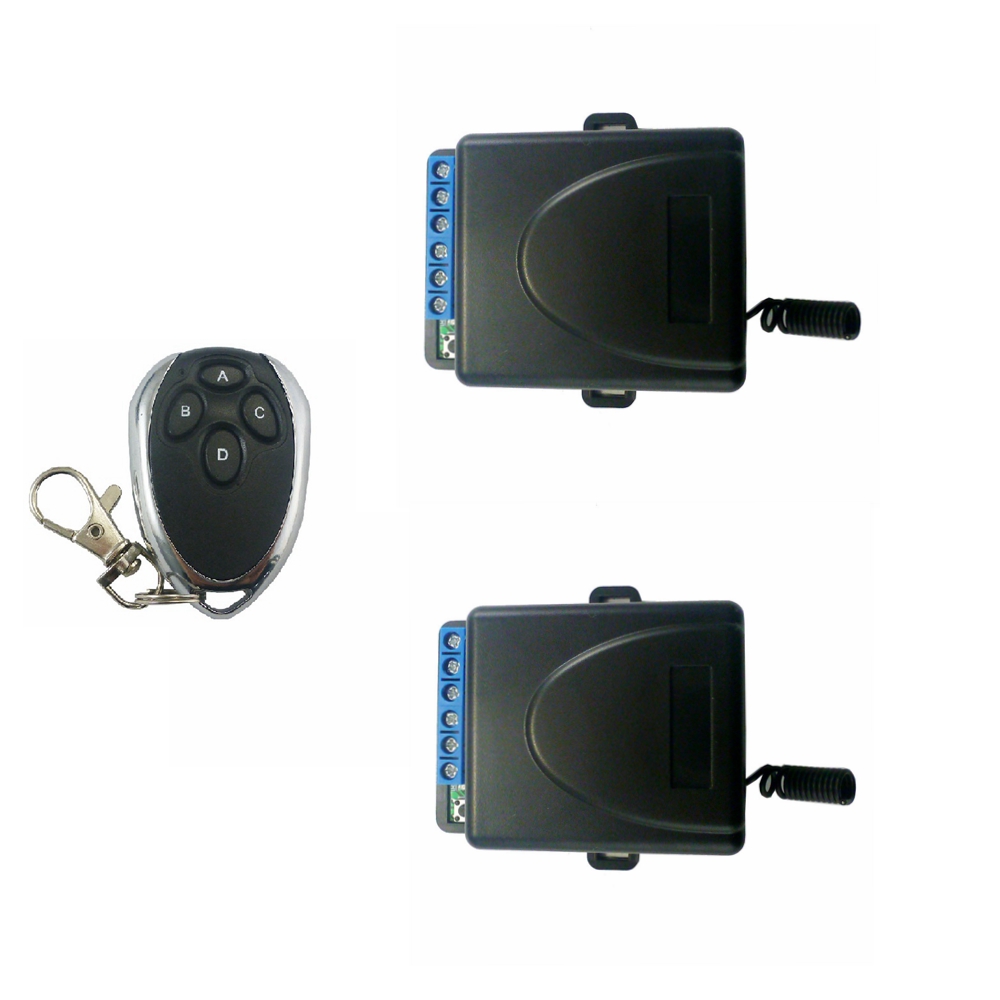

Remote model : RC43A04(Rolling code);
Power supply : 12V 27A battery replacable .(This remote doesnot have a battery , Please buy in your local market )
Operating current: ≤ 9mA;
Oscillation mode: SAW resonator;
Modulation mode:ASK;
Operating frequency:433.92MHZ;
Frequency deviation:± 150Hz (max);
Encoding format: Rolling Code ( HCS301) ;
Transmit power:10 mW.
Weight : 28gram.
Product number : RC43A04
Rolling Code (HCS301)
Use 12V 27A battery, battery not included
Weight : 28gram.
