R414A01 DC 5V-23V RS485 Modbus RTU Temperature And Humidity Sensor Remote Acquisition Monitor Replace DHT11 DHT22 DS18B20 PT100

R414A01 DC 5V-23V RS485 Modbus RTU Temperature And Humidity Sensor Remote Acquisition Monitor Replace DHT11 DHT22 DS18B20 PT100

  • Model: R414A01
  • Availability: In stock
  • Weight: 0.023Kg
US$4.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name:DC 5V-23V RS485 Modbus RTU Temperature And Humidity Sensor Remote Acquisition Monitor Replace DHT11 DHT22 DS18B20 PT100



Packing list:

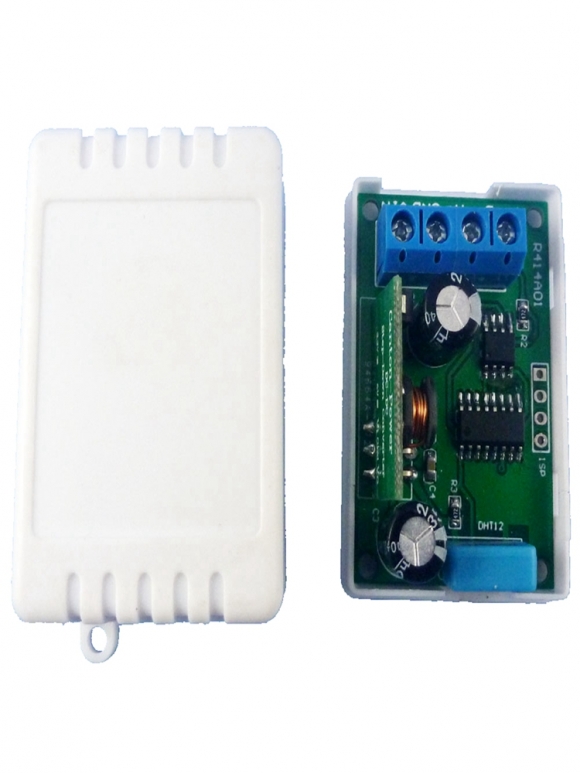

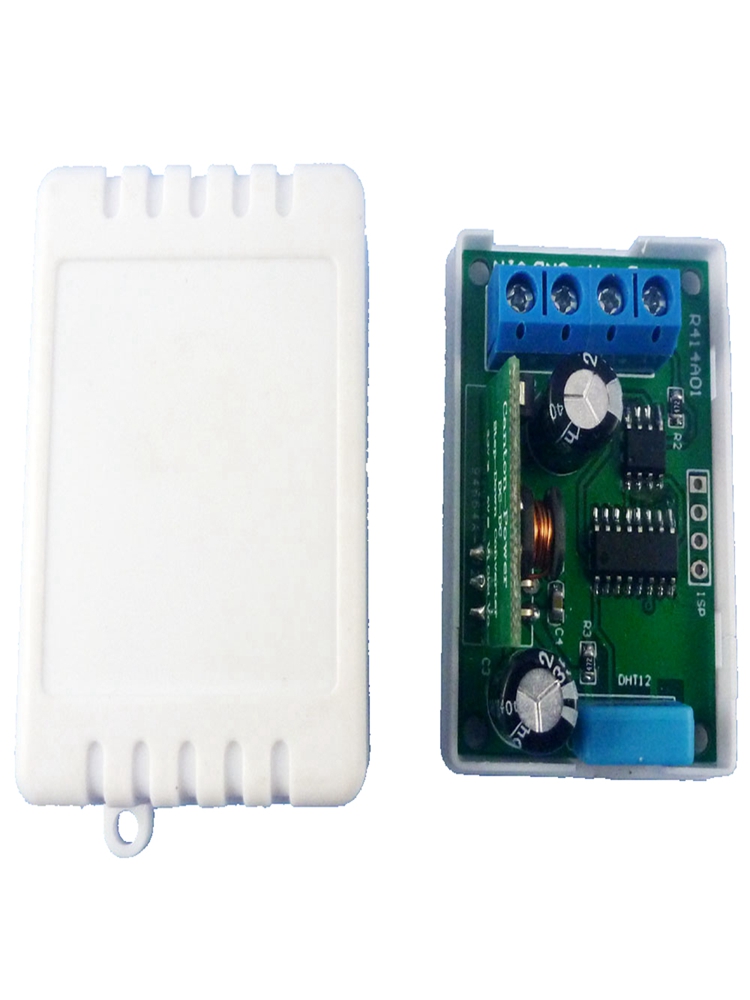

1 pcs R414A01 RS485 Temperature and humidity sensor(With a simple shell)

description :



Working voltage : DC 5-23V

Working current : 8MA(12V)

MODBUS RTU protocol,03 Read,06 Write.

Serial baud rate : 9600(default),N,8,1

By modifying the RS485 address, up to 247 module s can be connected (more than 16 US ether485 repeater)

Temperature and humi dity sensor is DHT12

The voltage conversion module is CE018,a High-efficiency and Low-heat voltage Converter

Size : Module is 45 X 30 X 27MM,Shell is 50 X 35 X 22MM
Weight : Module is 11g,Shell is 10g

For more information, please contact us!!!

Typical application:

Indoor and outdoor temperature and humidity measurement
Temperature and humidity monitoring in vegetable garden
Weather forecasting, and monitoring
Temperature and Humidity Monitoring in Computer Room
Warehouse temperature and humidity monitoring

Sensor parameters:


Wiring diagram:
