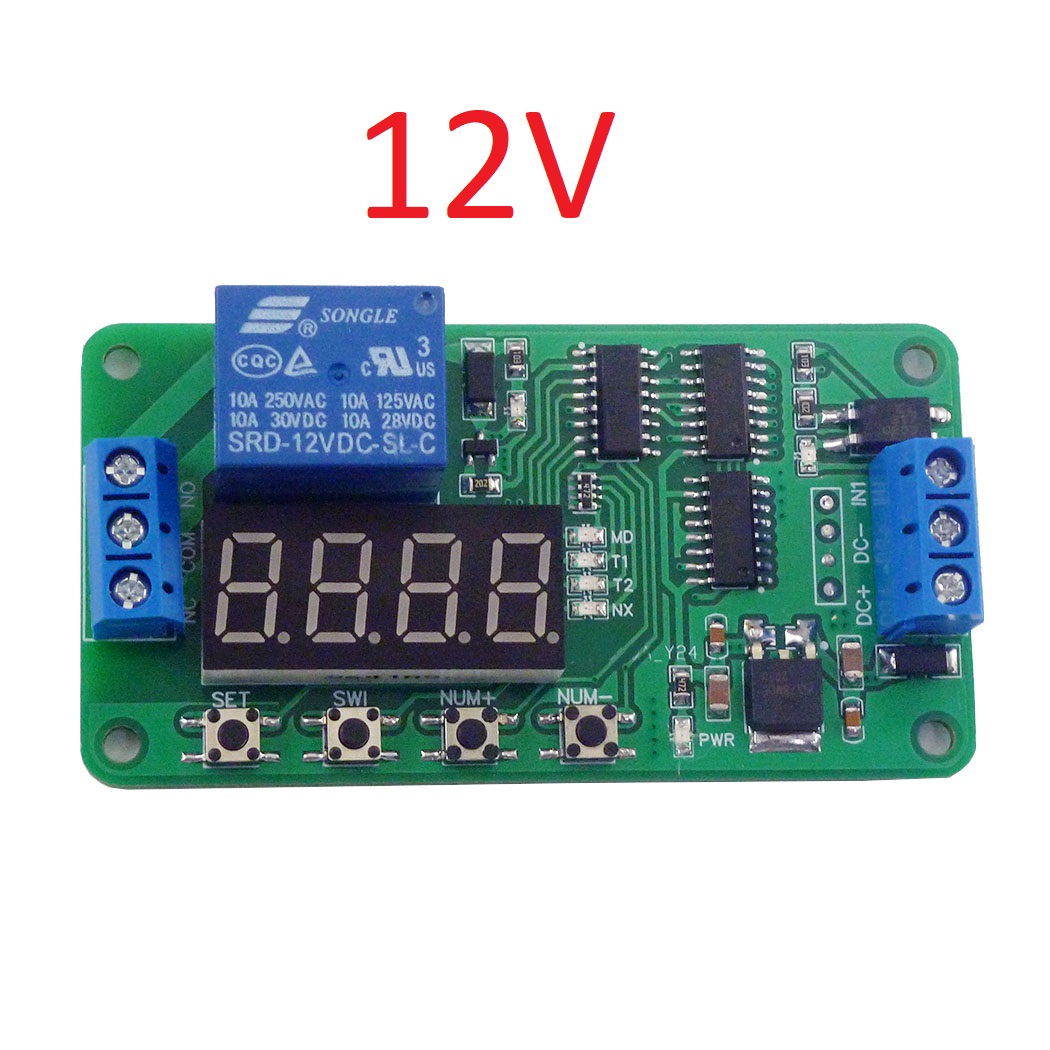

CE030 DC 12V Multifunction Timer Delay Relay Module Simple PCL Board for Fish Tank Motor Fan Fridge Smart Home

CE030 DC 12V Multifunction Timer Delay Relay Module Simple PCL Board for Fish Tank Motor Fan Fridge Smart Home

  • Model: CE030_12V
  • Availability: In stock
  • Weight: 0.031Kg
US$4.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name: DC 5-24V Multifunction Timer Delay Relay Module Simple PCL Board for Fish Tank Motor Fan Fridge Smart Home


Package inlcuded:

1 PCS 1ch CE030 multi-function delay relay board(You can select 5V/12V/24V
version)








Description:

Product Specifications:
Working voltage: DC 12V (DC 5V/ DC24V optional)
Working current: Digital tube OFF (Power-Saving Status): Relay OFF 6MA, Relay ON 35MA
Digital tube ON (Working Status): Relay OFF 29MA, Relay ON 56MA
Input port : Optocoupler isolation input, compatible with NPN input 3.3-24V switch signal)
Output port : 10A relay NO COM NC three ports
Working mode: Function 1-18
Delay Time :0.1 seconds -270 hours adjustable

Size: 76mm *40mm * 20mm
Weight : 29.1g
Relay load: 10A/250VAC; 10A/30VDC

Please contact me for detailed instructions !!!


Typical applications:

Home lighting system
Remote control switch
Remote locking
Smart Home / Home Automation
LED lighting
Fluorescent lamp
DC Motor
Fluorescent lamp
Automotive electronics

Simple PLC
Industrial automation and control
