Package inlcuded:

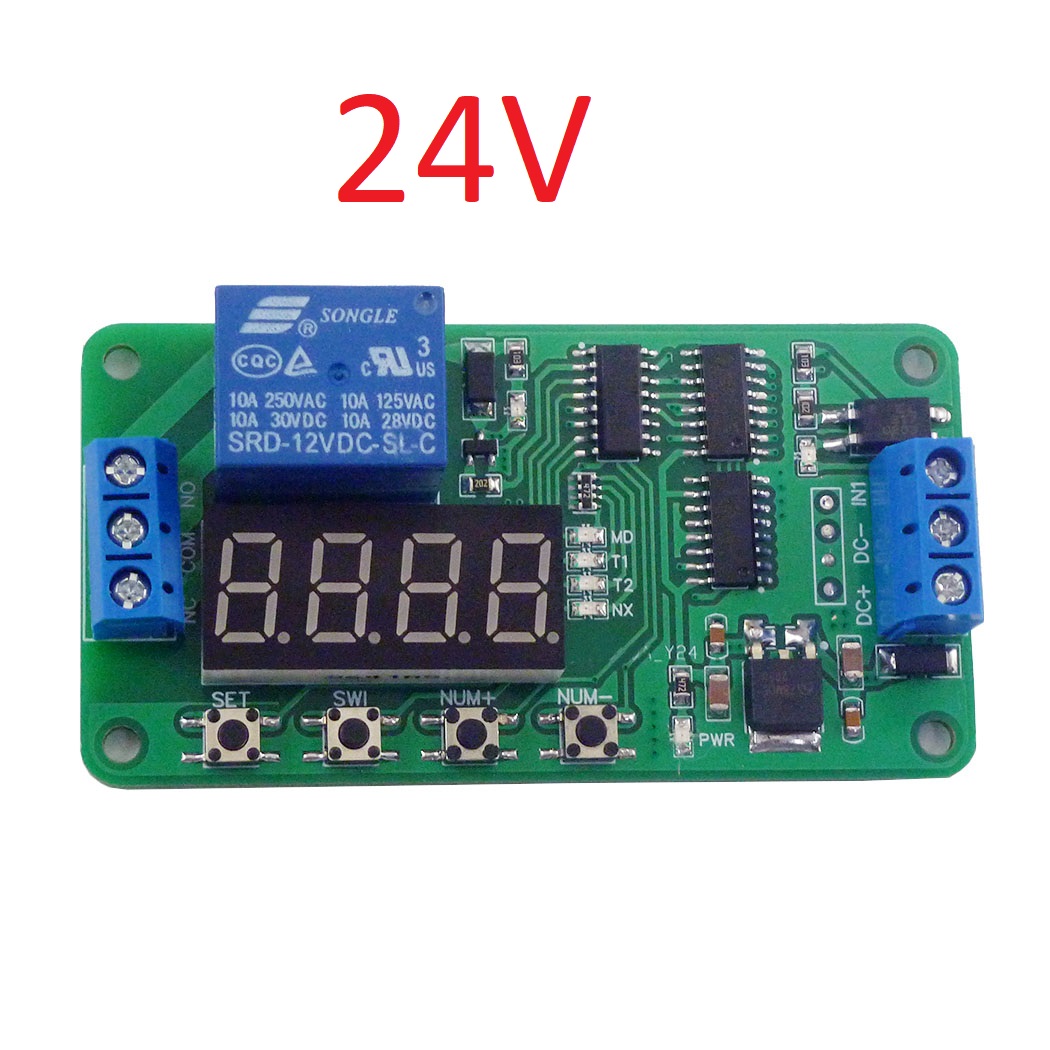

1 PCS 1ch CE030 multi-function delay relay board(You can select 5V/12V/24V
version)
Description:
Working voltage: DC 12V (DC 5V/ DC24V optional)
Working current: Digital tube OFF (Power-Saving Status): Relay OFF 6MA, Relay ON 35MA
Digital tube ON (Working Status): Relay OFF 29MA, Relay ON 56MA
Input port : Optocoupler isolation input, compatible with NPN input 3.3-24V switch signal)
Output port : 10A relay NO COM NC three ports
Working mode: Function 1-18
Delay Time :0.1 seconds -270 hours adjustable
Size: 76mm *40mm * 20mm
Weight : 29.1g
Relay load: 10A/250VAC; 10A/30VDC
Please contact me for detailed instructions !!!
Typical applications:
Home lighting system
Remote control switch
Remote locking
Smart Home / Home Automation
LED lighting
Fluorescent lamp
DC Motor
Fluorescent lamp
Automotive electronics
Simple PLC
Industrial automation and control
