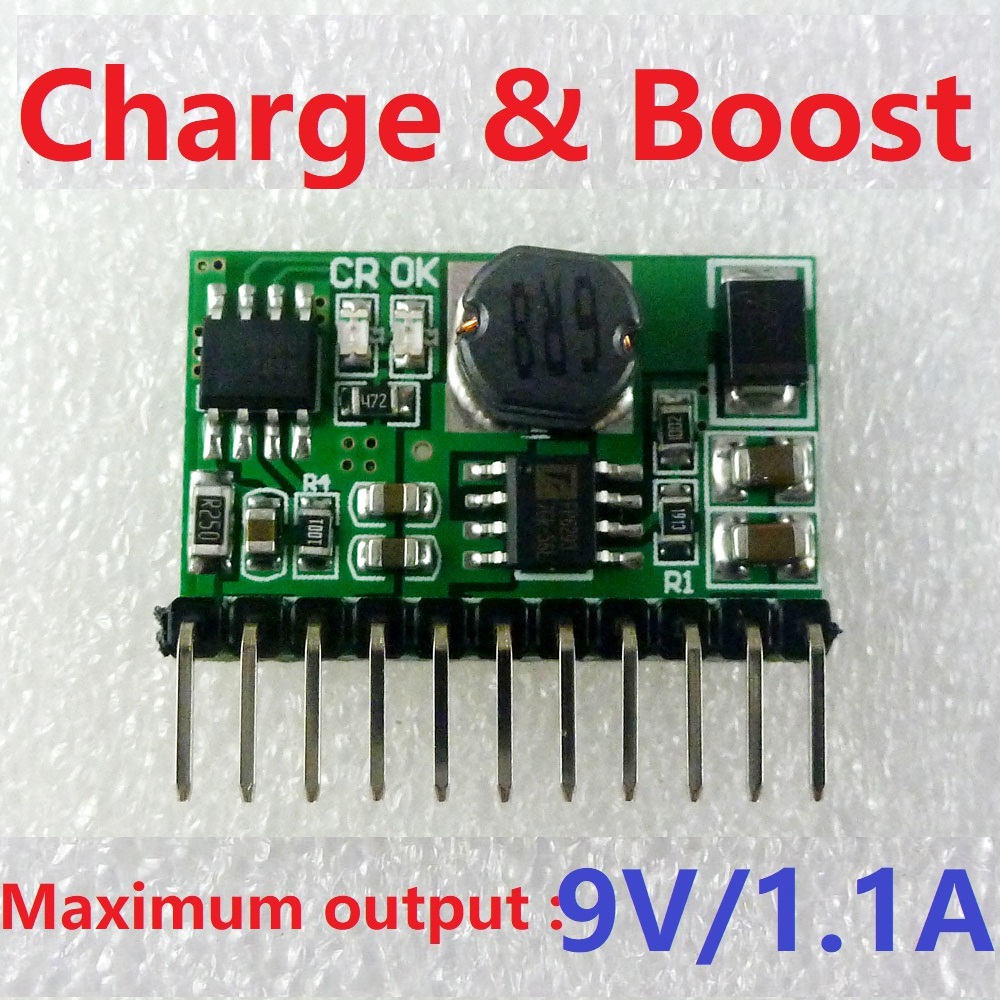

DD04CVSA DC-DC Converter Boost Step-up Module10W 3.7V 4.2V Charger & 9V Discharger Board UPS Diy Li-lon LiPo Lithium Battery

DD04CVSA DC-DC Converter Boost Step-up Module10W 3.7V 4.2V Charger & 9V Discharger Board UPS Diy Li-lon LiPo Lithium Battery

  • Model: DD04CVSA_9V
  • Availability: In stock
  • Weight: 0.003Kg
US$2.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name: DC-DC Converter Boost Step-up Module10W 3.7V 4.2V Charger & 5V 6V 9V 12V Discharger Board UPS Diy Li-lon LiPo Lithium Battery

Packing list:

1 PCS DD04CVSA 10W 2 in 1 charge and boost DC DC Converter








Description:



10W 2 in 1 charge and Discharger(boost) modules


Charge voltage : DC 5V(4.5-6.5V)
Charging current : 0-1A
Full charge voltage : 4.2V+-2%.
Led indicator : ''OK'' LED is fully charged OR battery failure status indicator;
''CR'' LED is charge status indicator

(Boost in)Discharge current : 0-3.5A;
(Boost in)Discharge quiescent current : 200uA
(Boost in)Discharge conversion efficiency : 78%-91%

(Boost out)Output current : 0-2.1A(5V),0-1.66A(6V),0-1.1A(9V),0-0.8A(12V);

Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +125°
Does not include pin size : 28 x 18 x 6.3mm
Weight : 3.7g(with Pin),2.7g(no Pin)


Note :
1 This module without lithium battery over-discharge protection, If you need a Protection Board, place the ''Protection Board'' on the shopping cart

2 In order to achieve more than 5W, it is recommended to use two or more batteries in parallel



Applications:


Battery powered equipment
Lithium Battery 18650 14500
Mobile phone diy
UPS power supply equipment diy
Solar charging
MP3/MP4 player
Audio equipment
Video equipment
Portable Devices
Bluetooth Applications
Electric toys
WIFI router
IP PTZ Camera
PLC RS485 equipment







 3.7V 4.2V Li-ion Lithium Battery Charger Over Discharge Protection Board

Note: Please charge the first time, activate the protection board. Otherwise there is no voltage output


Packing list:

2 PCS 3.7V 4.2V 3A Charger Over Charge Protection Board

Description:

Functions:
Over Charge Protection
Over Discharge Protection
Short Circuit Protection
Overcurrent Protection

Parameters:
Over Charge Detection Voltage: 4.28±0.05V
Over Charge Release Voltage: 4.26±0.05V
Over Discharge Detection Voltage: 2.5±0.1V
Over current Detection Current: 1-3A
Overcurrent protection : 3.2±0.2A

Size : 12.6x10.2x2.1mm
Weight : 0.34g

Wiring:
B- connected to battery negative
B+ connected to battery positive
P+ Connect the charger/load positive
P- Connect the charger/load negative


Applications

3.7V lithium battery 18650
TP4056 Charging module

Protects a single 3.7V lithium battery:

Protect multiple 3.7V lithium batteries (no more than 10pcs recommended):

DIY mobile power
